Elbow Union 4096E

Elbow Union 4096E

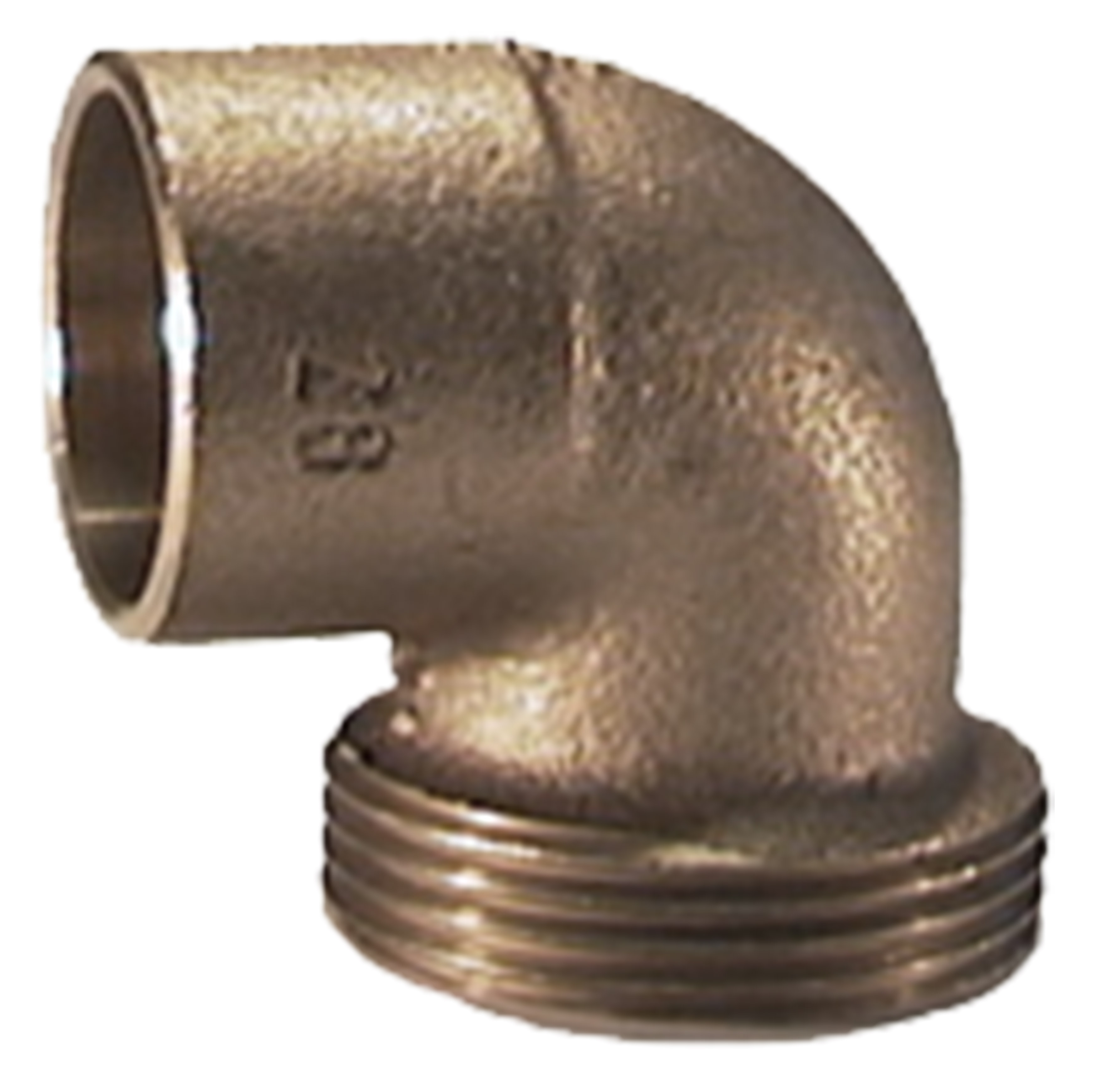

Elbow union 90°, conical joint. For heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Elbow Union 4096E

  • Variants
  • Detailed Information
  • Documentation

Variants

4096E - Female / Male Thread

4096E - Female / Male Thread 2 variants

Thread standard according to DIN - ISO 228. Manufacturing and quality control in accordance with DIN 2856 chapters 10 and 11. The dimensions used in the sketch are for illustration only and not part of the specification.

Article Dim. A mm B mm Weight (kg) Dimensional sketch Item List
051105 22 x 1" 28 28 0.09
051122 28 x 1¼" 35 35 0.3

051105

Dim. 22 x 1"
A mm 28
B mm 28
Weight (kg) 0.09
Dimensional sketch
Item list

051122

Dim. 28 x 1¼"
A mm 35
B mm 35
Weight (kg) 0.3
Dimensional sketch
Item list

Detailed Information

Description

Elbow union 90°, conical joint. For heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Technical Data

Max. working pressure: See table below
Thread standard: R - male thread
Other data: Red Brass, according to DIN 1705, ISO 1338
Suitable rotating nuts 4374 - 4374R

Application

Documentation

Product sheet

Elbow Union 4096E
