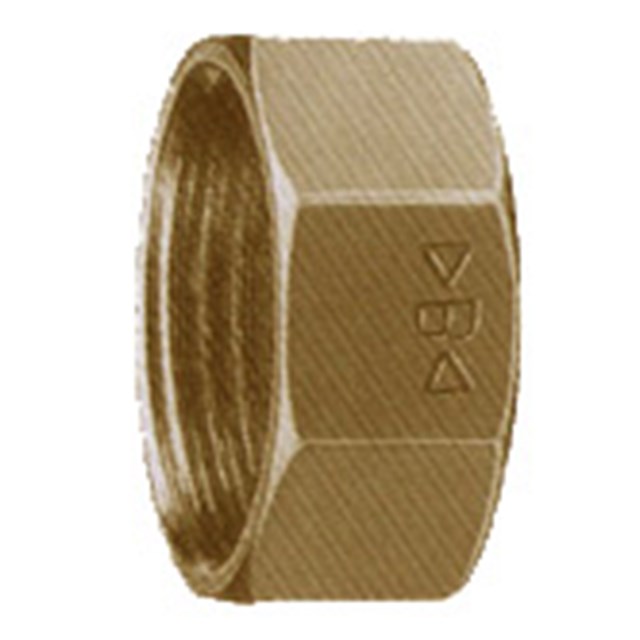

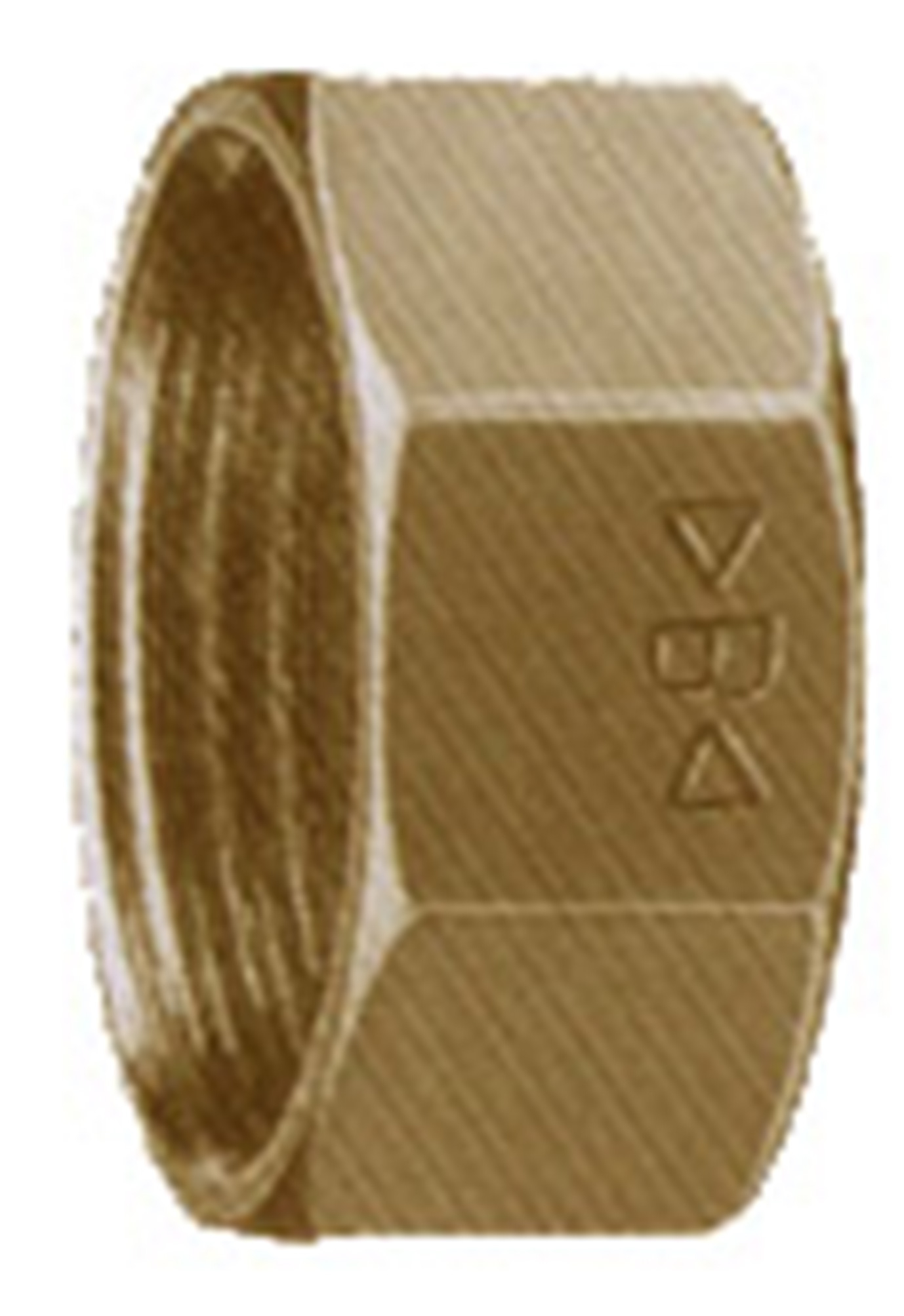

Union Nut 4374

Union Nut 4374

For heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Union Nut 4374

  • Variants
  • Detailed Information
  • Documentation

Variants

4374 - Female

4374 - Female 4 variants

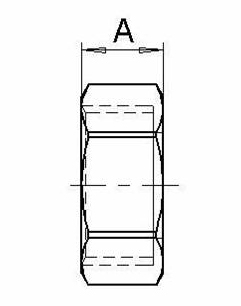

Thread standard according to DIN – ISO 228. Manufacturing and quality control in accordance with DIN 2856 chapters 10 and 11. The dimensions used in the sketch are for illustration only and not part of the specification.

Article Dim. A mm Weight (kg) Dimensional sketch Item List
051016 ¾" 15 0.04
051005 1" 17 0.06
051045 1¼" 19 0.09
051062 1½" 20 0.08

051016

Dim. ¾"
A mm 15
Weight (kg) 0.04
Dimensional sketch
Item list

051005

Dim. 1"
A mm 17
Weight (kg) 0.06
Dimensional sketch
Item list

051045

Dim. 1¼"
A mm 19
Weight (kg) 0.09
Dimensional sketch
Item list

051062

Dim. 1½"
A mm 20
Weight (kg) 0.08
Dimensional sketch
Item list

Detailed Information

Description

For heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Technical Data

Max. working pressure: See table below
Thread standard: R - female thread
Other data: Brass

Application

Documentation

Product sheet

Union Nut 4374
