LK 520 MultiFill® 32

Variants
Detailed Information
Documentation

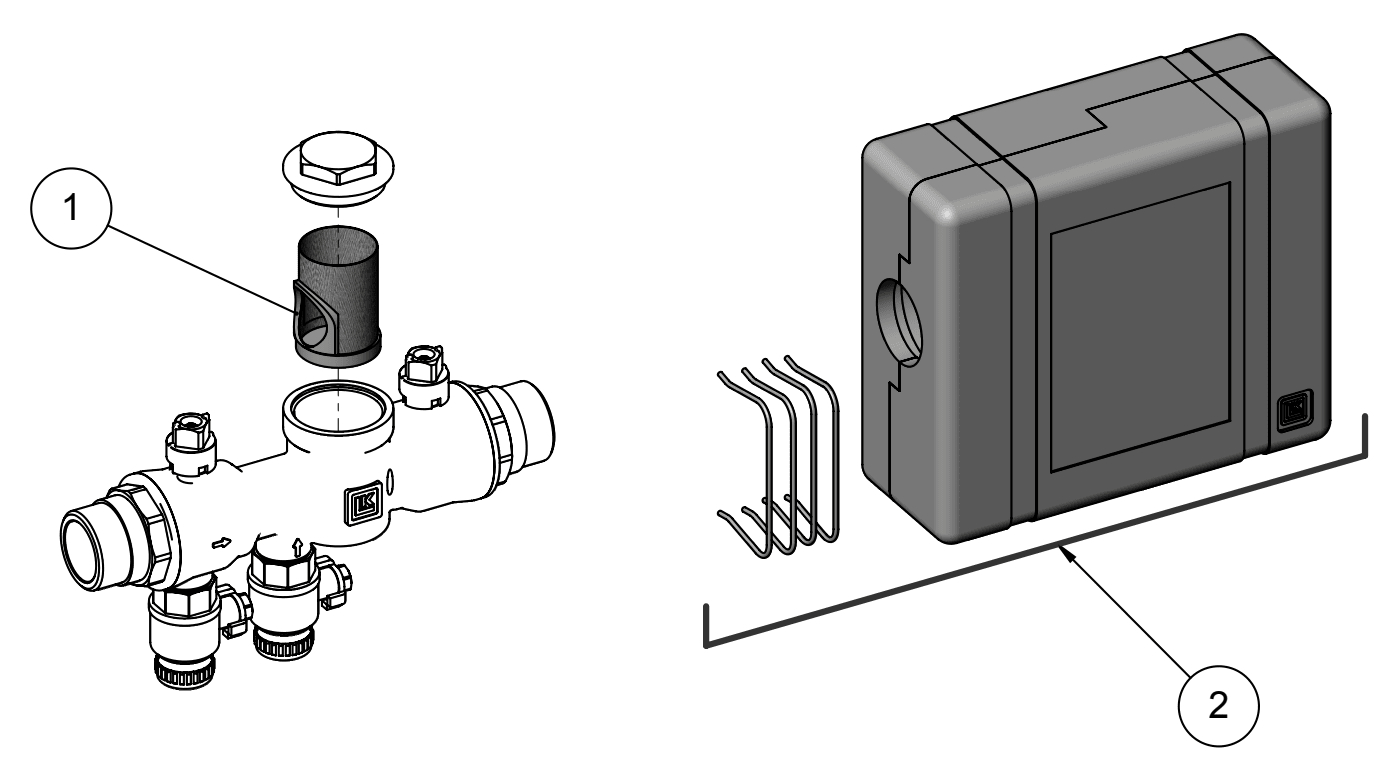

Accessories & Spare parts
Questions & Answers

Variants

LK 520-32 Male thread 1 artikel

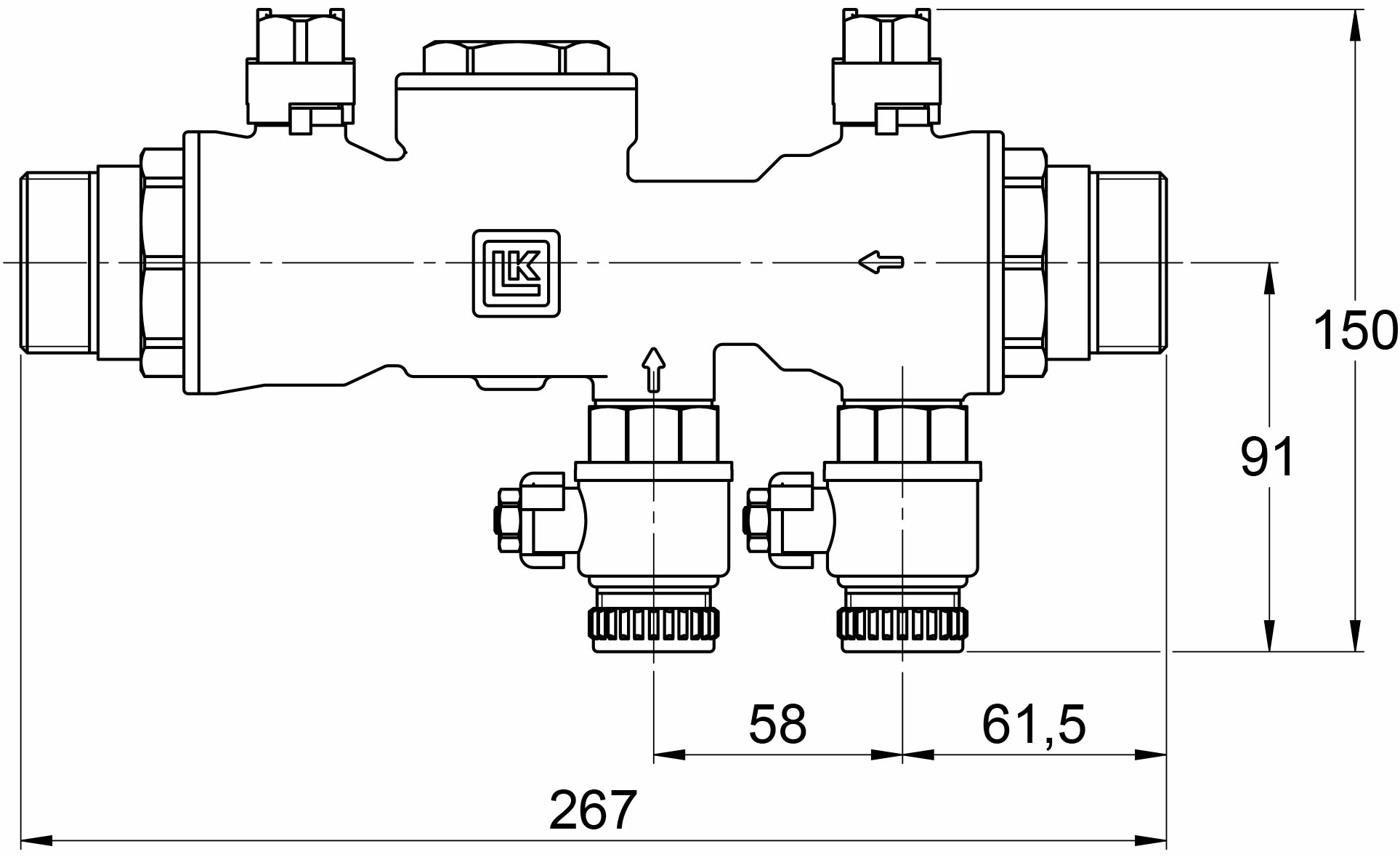

Dimension 1 - Pipe connection to collector hose Dimension 2 - Connection for filling of fluid

Article	Dim.	Dim. 2	Kvs m³/h	Weight (kg)	Item List
091193	2 x M 1¼"	2 x M ¾"	22	3.2

Dim.	2 x M 1¼"
Dim. 2	2 x M ¾"

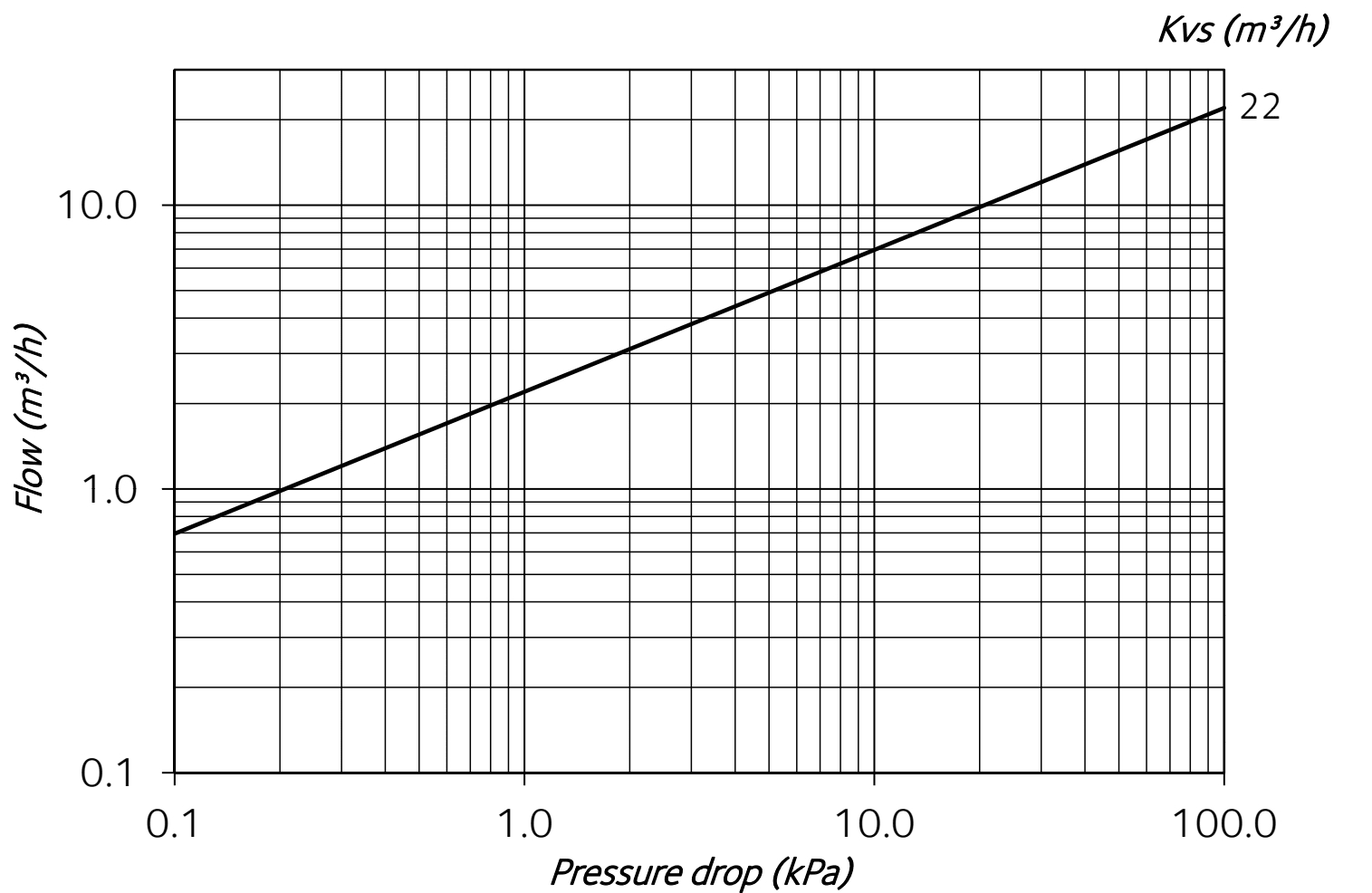

Kvs m³/h	22
Weight (kg)	3.2
Item list

Detailed Information

Description

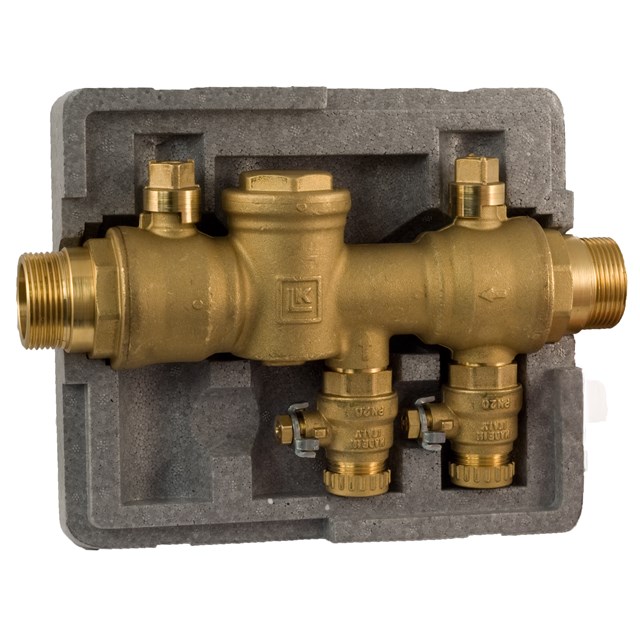

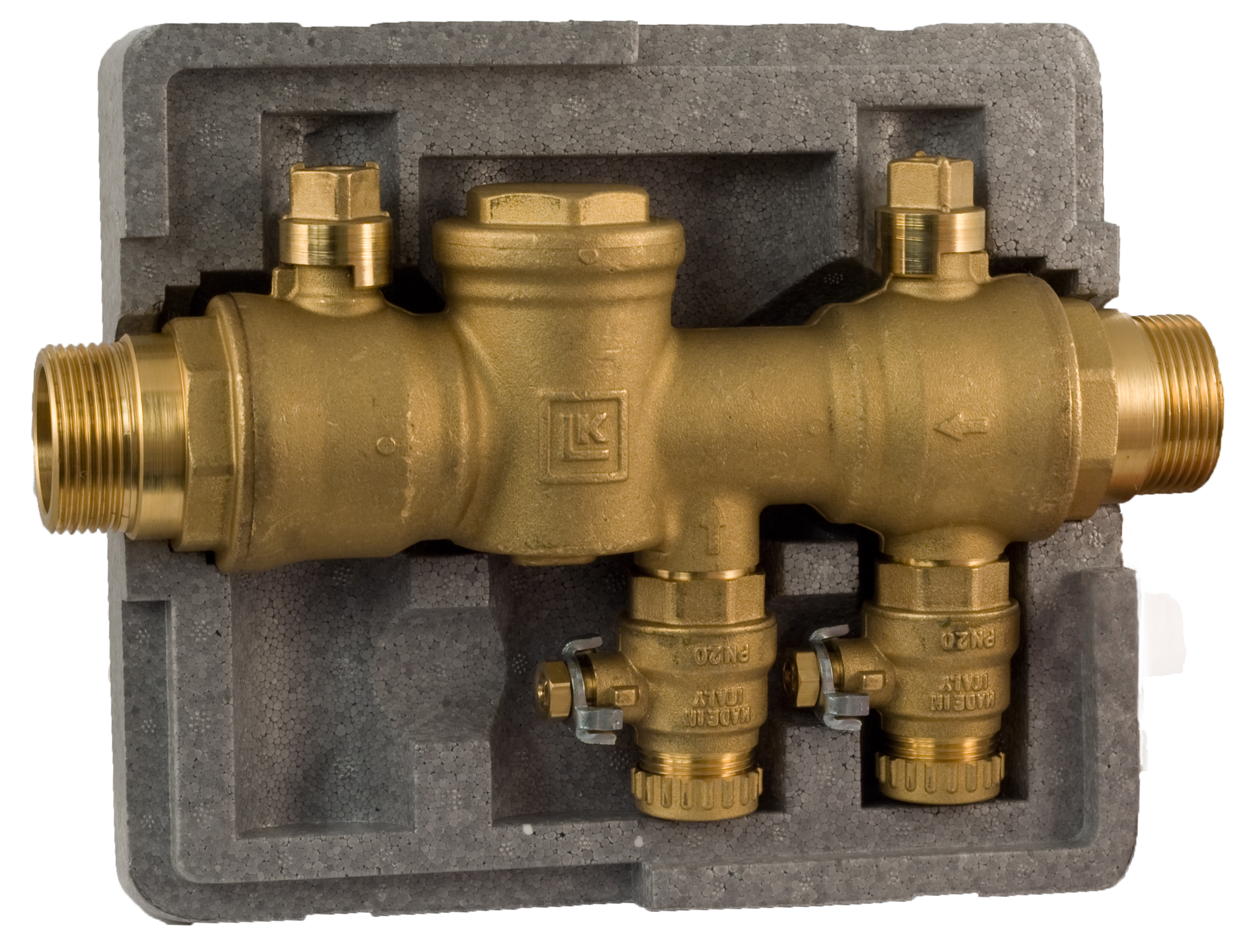

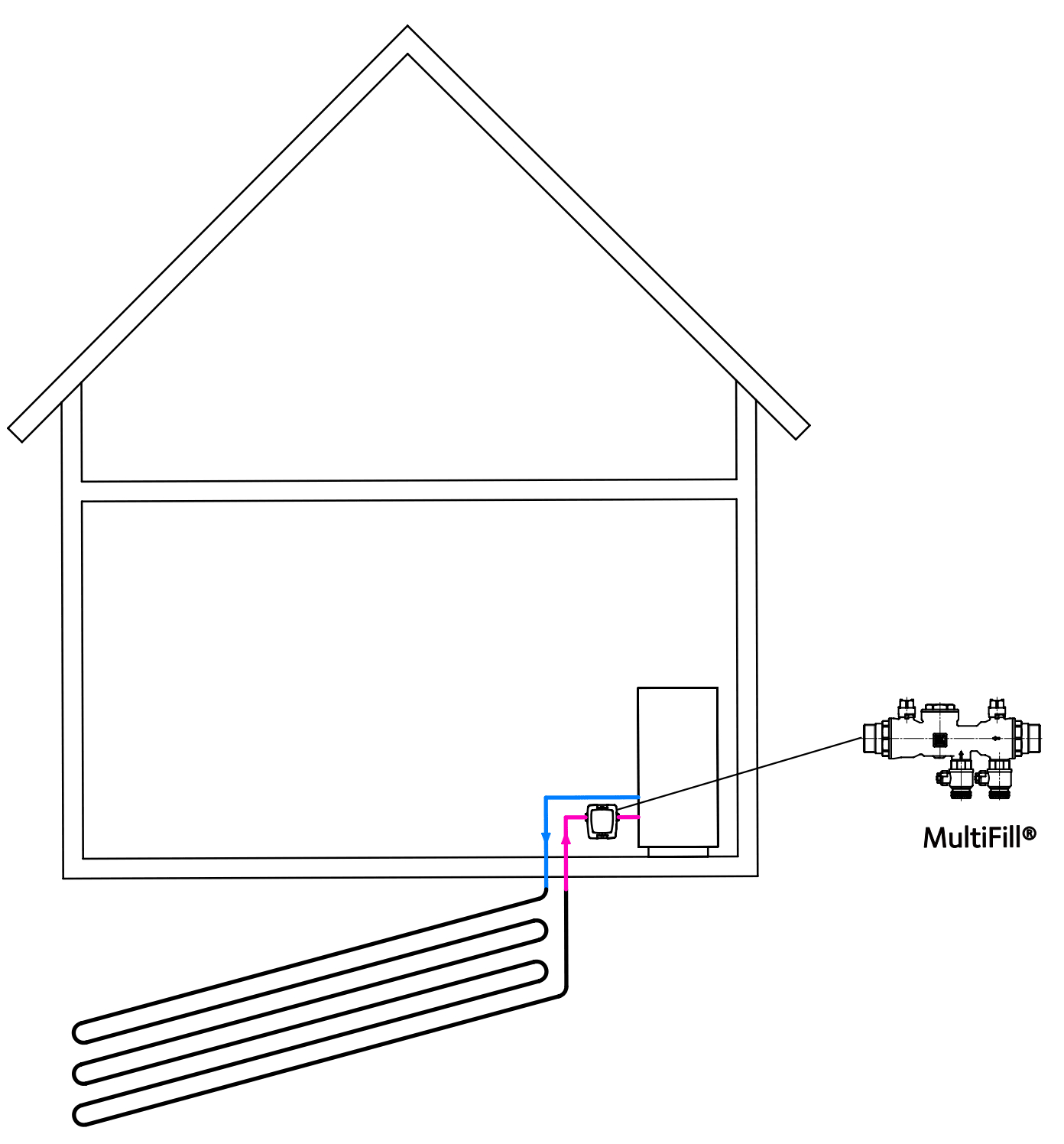

LK 520 MultiFill® 32 is a combination valve for easy filling of refrigerant fluid into ground source heat systems. The valve has a filter to protect the evaporator against possible grit. Its compact construction allows it to be installed in tight spaces. The valve is equipped with insulation to protect against condensation and possible icing. LK 520 MultiFill® 32 can also be used in other applications where filling and filtration are required.

Arrows on the valve body indicate the direction of the flow. The enclosed insulation should be used.

Apart from cleaning the filter no maintenance is required. The filter should be cleaned immediately after installation, a month later and then every other year or when refilling fluid to the system. Check the installation regularly.

Technical Data

Max. working pressure:	1,0 MPa (10 bar)
Working temperature:	Min. -20°C/Max. +60°C
Mesh opening, filter:	1.0 mm
Thread standard:	G - male thread
Media 1:	Water - Glycol mixture max. 50% Ethanol mixture max. 30%
Material, valve body:	Brass EN 12165 CW617N
Material, insulation:	Expanded Polystyrene EPS
Material, filter element:	Stainless Steel
Material, sealing:	EPDM

Application

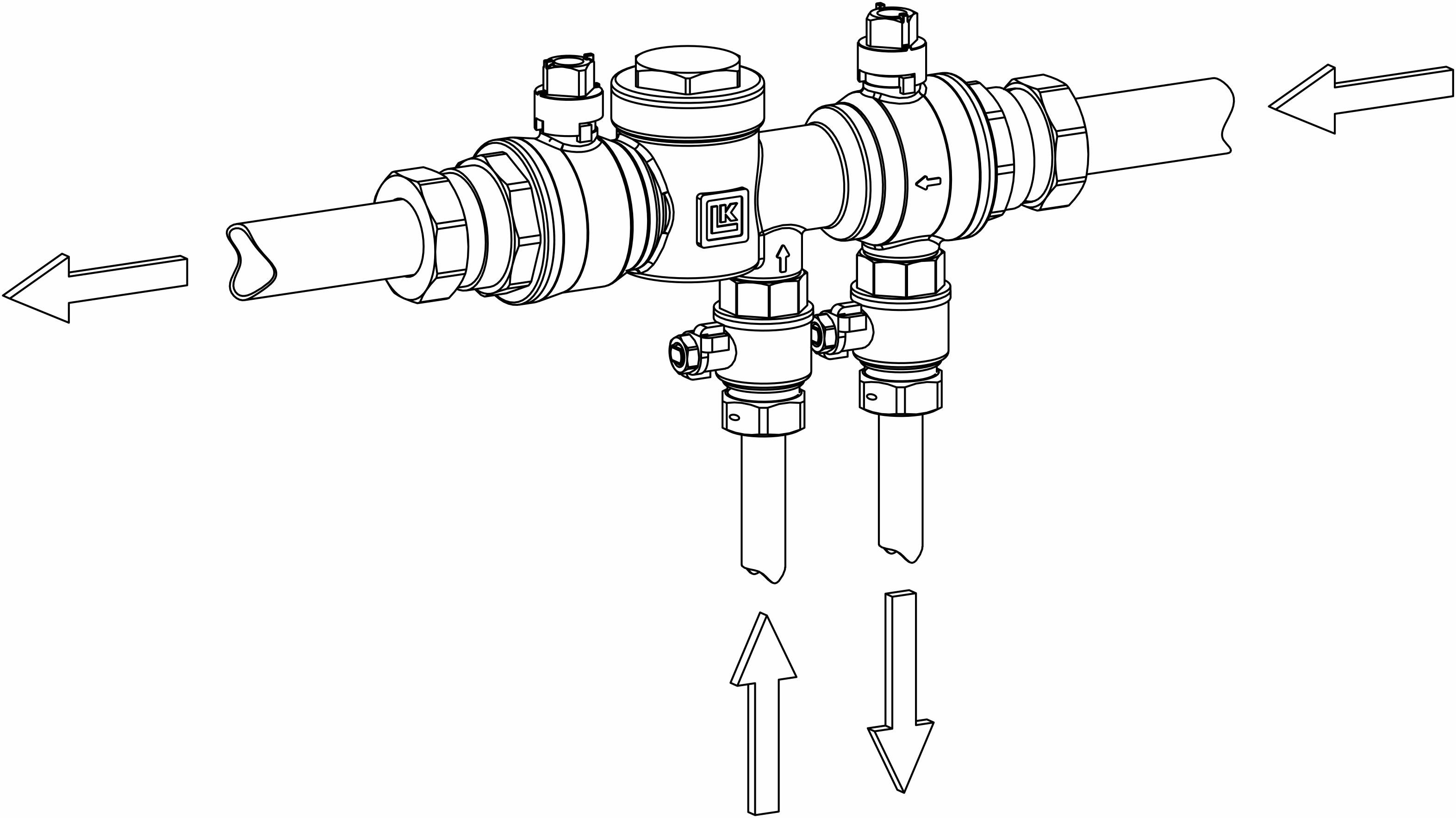

Filling of refrigerant fluid

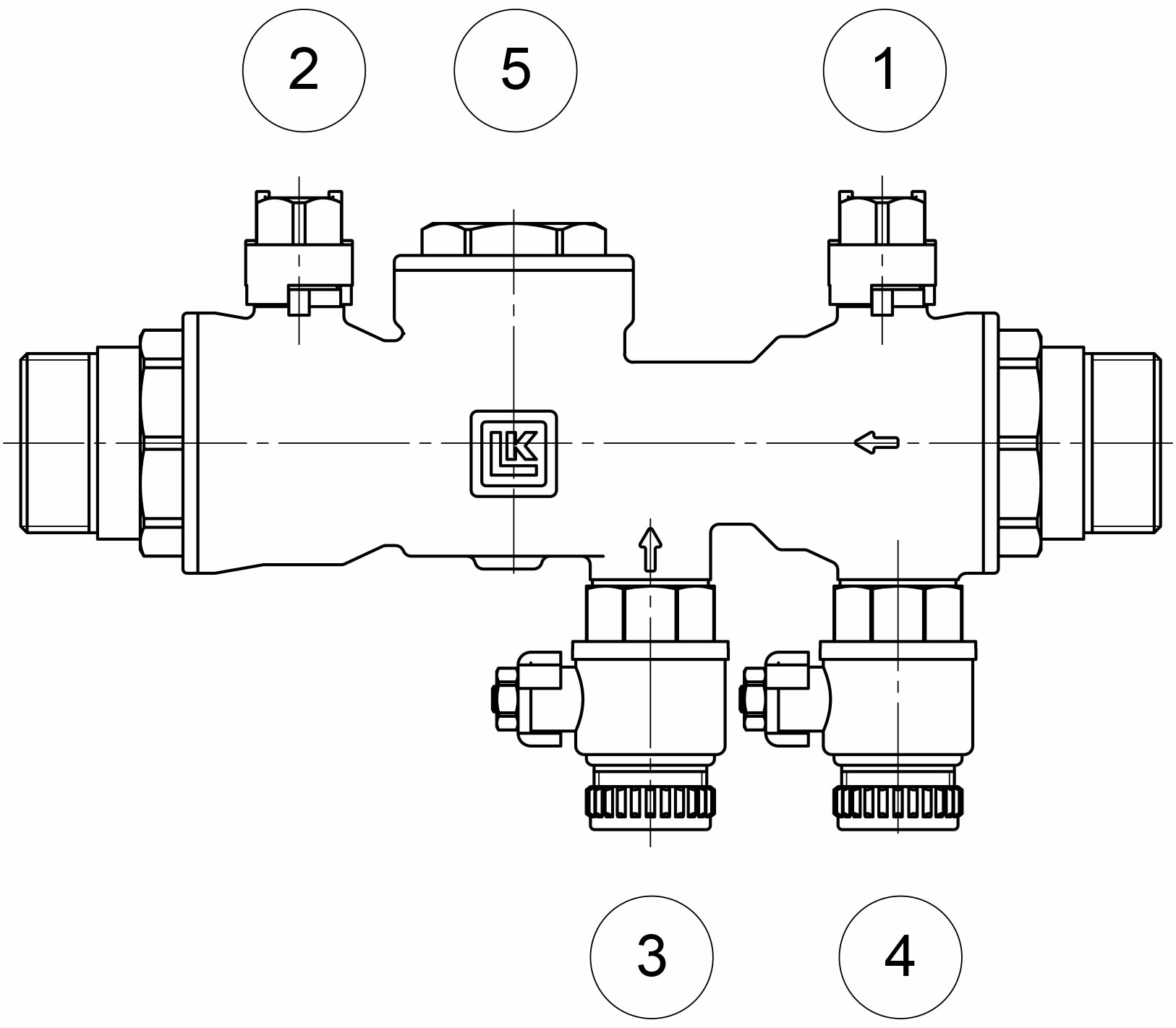

Close valve 1. Connect the refrigerant fill to valve 3 according to the flow arrow. Connect the refrigerant return to valve 4. After completion of the filling operation, close valves 3 and 4. Open valve 1.

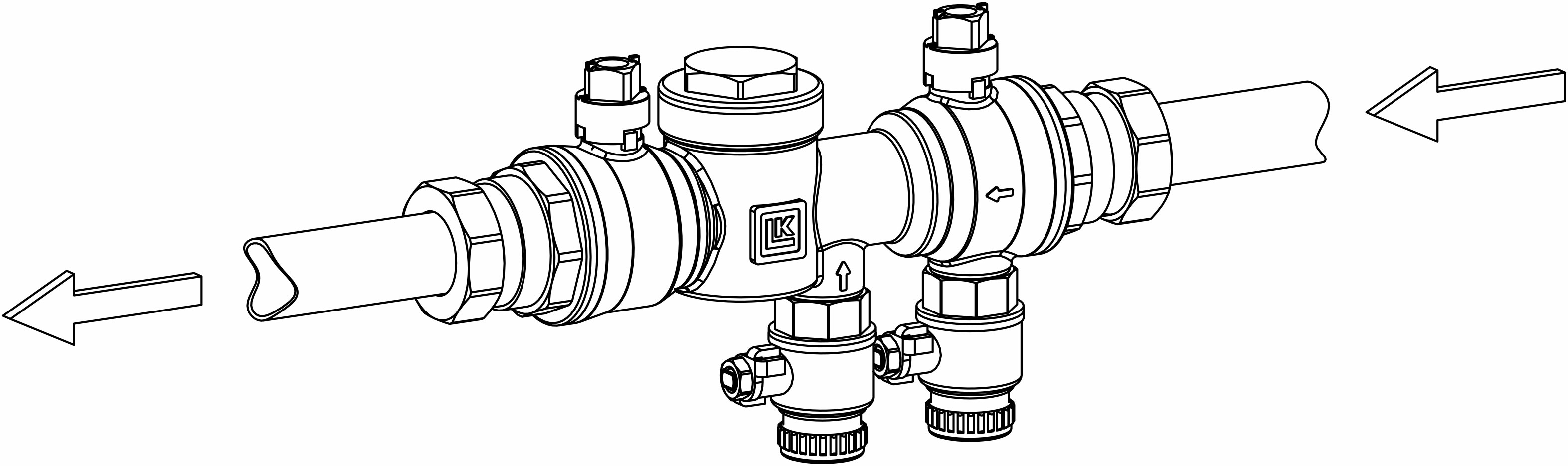

Cleaning the filter
Close valves 1 and 2. Unscrew the filter cover 5. Clean the filter with water. When refitting, the tap below the filter holder should be fitted into the hole provided in the filter housing. Fill with a few centilitres of refrigerant fluid to prevent air from entering the system.
