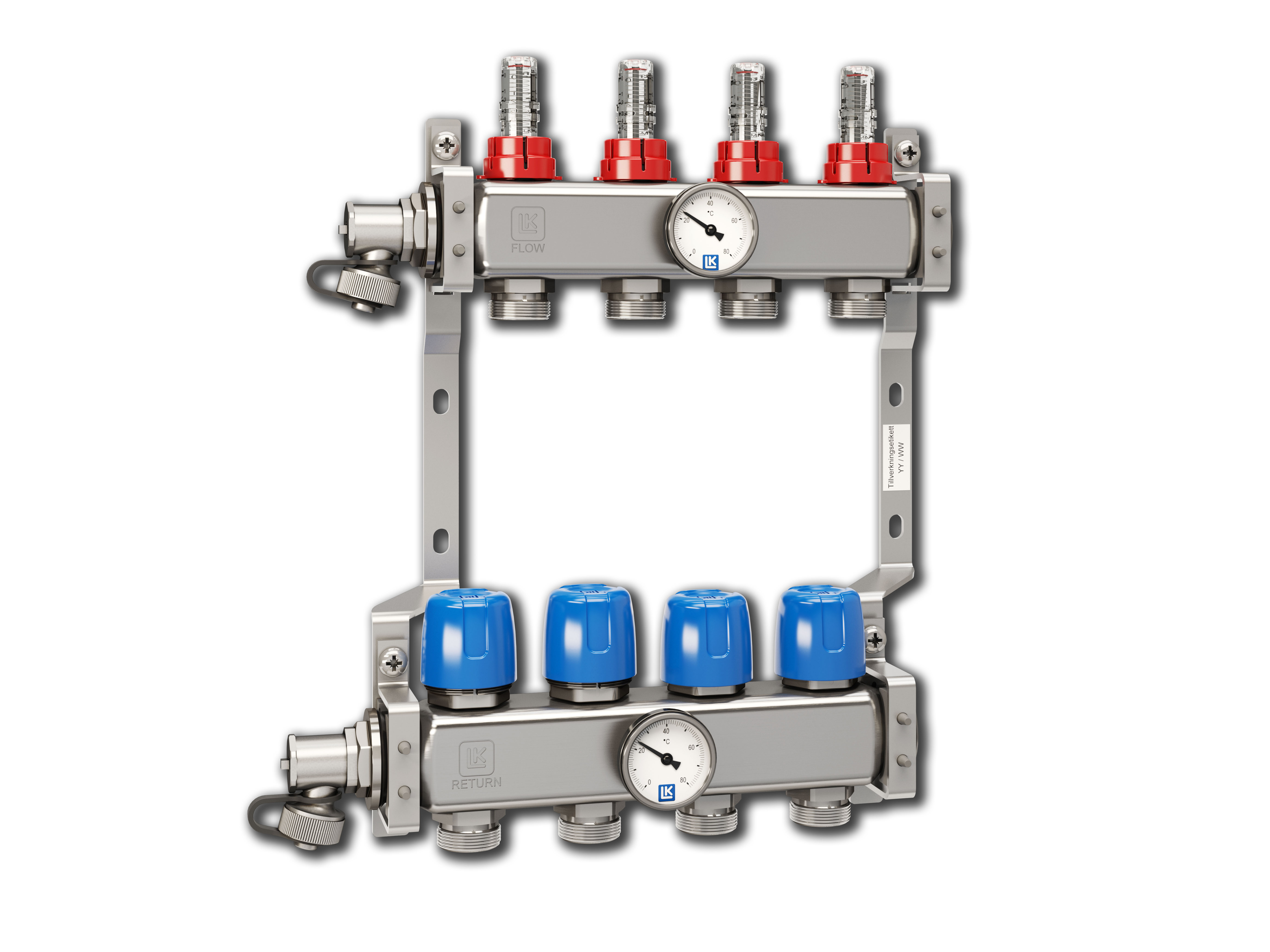

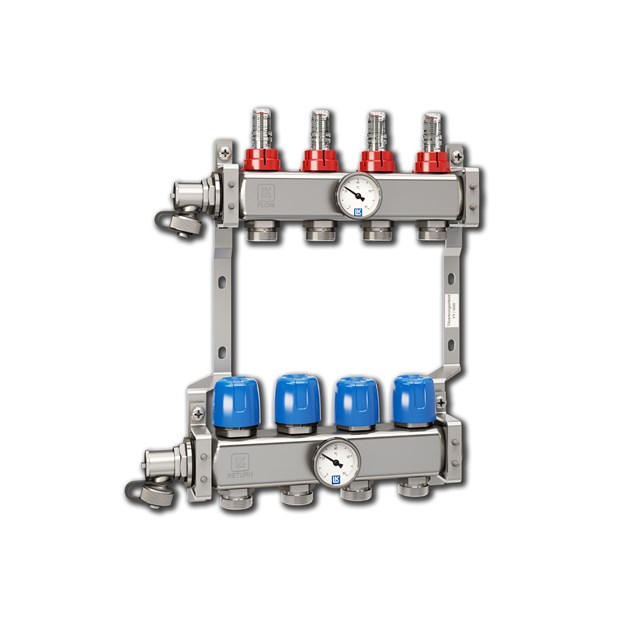

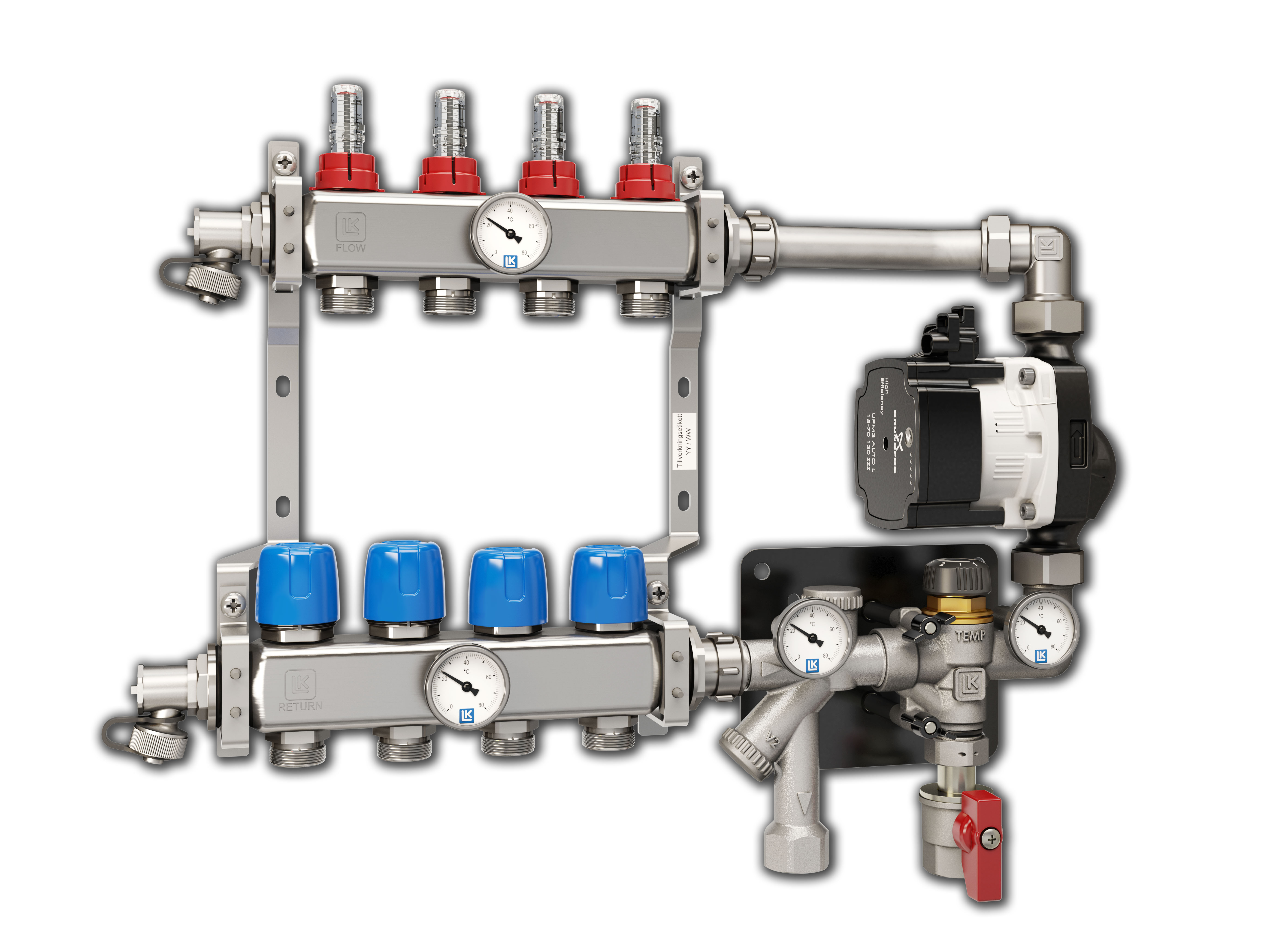

LK 430 Manifold

LK 430 Manifold

  • For up to 12 circuits
  • Stainless steel

LK 430 is a manifold for 2 - 12 underfloor heating circuits. It is manufactured in stainless steel and is delivered pre-mounted to a bracket. The manifold is equipped with filling / ­drainage valves. The upper ...

Read more

LK 430 Manifold

  • Variants
  • Detailed Information
  • Documentation
  • Accessories & Spare parts

Variants

LK 430 - Female thread / Male thread

LK 430 - Female thread / Male thread 11 variants

Dimension 1 = Heat supply connection, Dimension 2 = Circuit connection, Dimension 3= Connection for filling/drainage. Kvs 1 = adjustment valve m³/h, Kvs 2 = Return valve m³/h.

Article Dim. Dim. 2 Dim. 3 Kvs m³/h Kvs2 m³/h No. of circuits L mm Weight (kg) Dimensional sketch Item List
297311 F 1” M ¾” EuroCone M ½” 1,1 2,5 2 190 2.8
297312 F 1” M ¾” EuroCone M ½” 1,1 2,5 3 240 3.2
297313 F 1” M ¾” EuroCone M ½” 1,1 2,5 4 290 3.6
297314 F 1” M ¾” EuroCone M ½” 1,1 2,5 5 340 4.2
297315 F 1” M ¾” EuroCone M ½” 1,1 2,5 6 390 4.7
297316 F 1” M ¾” EuroCone M ½” 1,1 2,5 7 440 5.1
297317 F 1” M ¾” EuroCone M ½” 1,1 2,5 8 490 5.7
297318 F 1” M ¾” EuroCone M ½” 1,1 2,5 9 540 6.0
297319 F 1” M ¾” EuroCone M ½” 1,1 2,5 10 590 6.5
297320 F 1” M ¾” EuroCone M ½” 1,1 2,5 11 640 7.0
297321 F 1” M ¾” EuroCone M ½” 1,1 2,5 12 690 7.5

297311

Dim. F 1”
Dim. 2 M ¾” EuroCone
Dim. 3 M ½”
Kvs m³/h 1,1
Kvs2 m³/h 2,5
No. of circuits 2
L mm 190
Weight (kg) 2.8

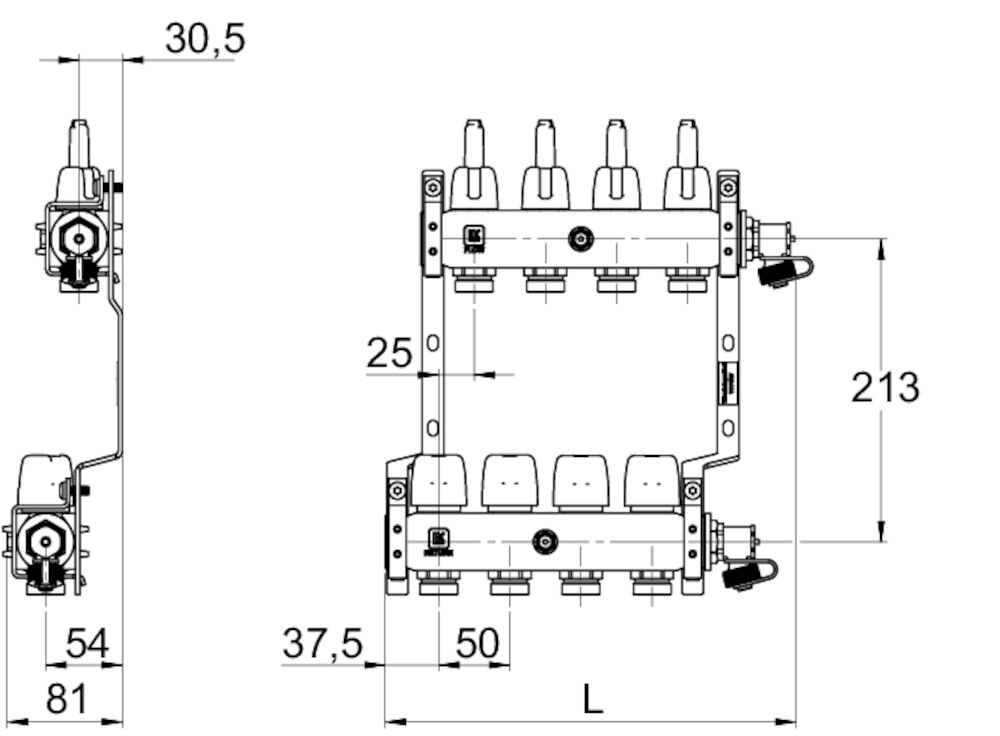

Dimensional sketch
Item list

297312

Dim. F 1”
Dim. 2 M ¾” EuroCone
Dim. 3 M ½”
Kvs m³/h 1,1
Kvs2 m³/h 2,5
No. of circuits 3
L mm 240
Weight (kg) 3.2
Dimensional sketch
Item list

297313

Dim. F 1”
Dim. 2 M ¾” EuroCone
Dim. 3 M ½”
Kvs m³/h 1,1
Kvs2 m³/h 2,5
No. of circuits 4
L mm 290
Weight (kg) 3.6
Dimensional sketch
Item list

297314

Dim. F 1”
Dim. 2 M ¾” EuroCone
Dim. 3 M ½”
Kvs m³/h 1,1
Kvs2 m³/h 2,5
No. of circuits 5
L mm 340
Weight (kg) 4.2
Dimensional sketch
Item list

297315

Dim. F 1”
Dim. 2 M ¾” EuroCone
Dim. 3 M ½”
Kvs m³/h 1,1
Kvs2 m³/h 2,5
No. of circuits 6
L mm 390
Weight (kg) 4.7
Dimensional sketch
Item list

297316

Dim. F 1”
Dim. 2 M ¾” EuroCone
Dim. 3 M ½”
Kvs m³/h 1,1
Kvs2 m³/h 2,5
No. of circuits 7
L mm 440
Weight (kg) 5.1
Dimensional sketch
Item list

297317

Dim. F 1”
Dim. 2 M ¾” EuroCone
Dim. 3 M ½”
Kvs m³/h 1,1
Kvs2 m³/h 2,5
No. of circuits 8
L mm 490
Weight (kg) 5.7
Dimensional sketch
Item list

297318

Dim. F 1”
Dim. 2 M ¾” EuroCone
Dim. 3 M ½”
Kvs m³/h 1,1
Kvs2 m³/h 2,5
No. of circuits 9
L mm 540
Weight (kg) 6.0
Dimensional sketch
Item list

297319

Dim. F 1”
Dim. 2 M ¾” EuroCone
Dim. 3 M ½”
Kvs m³/h 1,1
Kvs2 m³/h 2,5
No. of circuits 10
L mm 590
Weight (kg) 6.5
Dimensional sketch
Item list

297320

Dim. F 1”
Dim. 2 M ¾” EuroCone
Dim. 3 M ½”
Kvs m³/h 1,1
Kvs2 m³/h 2,5
No. of circuits 11
L mm 640
Weight (kg) 7.0
Dimensional sketch
Item list

297321

Dim. F 1”
Dim. 2 M ¾” EuroCone
Dim. 3 M ½”
Kvs m³/h 1,1
Kvs2 m³/h 2,5
No. of circuits 12
L mm 690
Weight (kg) 7.5
Dimensional sketch
Item list

Detailed Information

Description

LK 430 is a manifold for 2 - 12 underfloor heating circuits. It is manufactured in stainless steel and is delivered pre-mounted to a bracket. The manifold is equipped with filling / ­drainage valves. The upper manifold marked FLOW is fitted with flow indicators and adjustment valves for setting the ­respective circuit flows. The lower manifold marked RETURN has manually operated valves for shutting off each respective circuit. These valves are normally replaced with thermoelectric actuators. Thermometers for the return and flow manifolds are available - see under Accessories.
LK 430 can also be supplied with an LK 435 OptiFlow ­balancing valve for easy adjustment of the circuit flow. The flow rate is clearly indicated on a transparent scale - see under Accessories. For more information see the product sheet for ­OptiFlow.

The heat supply can be connected to the manifold from the left or the right side. The manifold is delivered ready for connection from the left. When connecting from the right, reposition the drainage valves.

LK 430 requires no maintenance but the installation should be checked regularly.

Technical Data

Working temperature: Min. 5 °C/Max. 70 °C (max. 85 °C briefly)
Ambient temperature: Min. -20 °C/Max. 40 °C
Max. working pressure: 1.0 MPa (10 bar)
Max. differential pressure: 100 kPa (1 bar)
Media 1: Water
Media 2: Water - Ethylene glycol mixture max. 50%
Media 3: Water - Propylene glycol mixture max. 50%
Media 4: Water - Ethanol mixture max. 50%
Thread standard: G - female thread, G - male thread
Other data: Flow indication, scale 0.5 - 5 l/min. ±10%
Thermometer 0 - 80 °C
Material, manifold Stainless steel EN 10088-3 1.4306
Material, threaded union parts/isolation valves Nickel plated brass EN 12165 CW617N

Application

Technical Diagrams

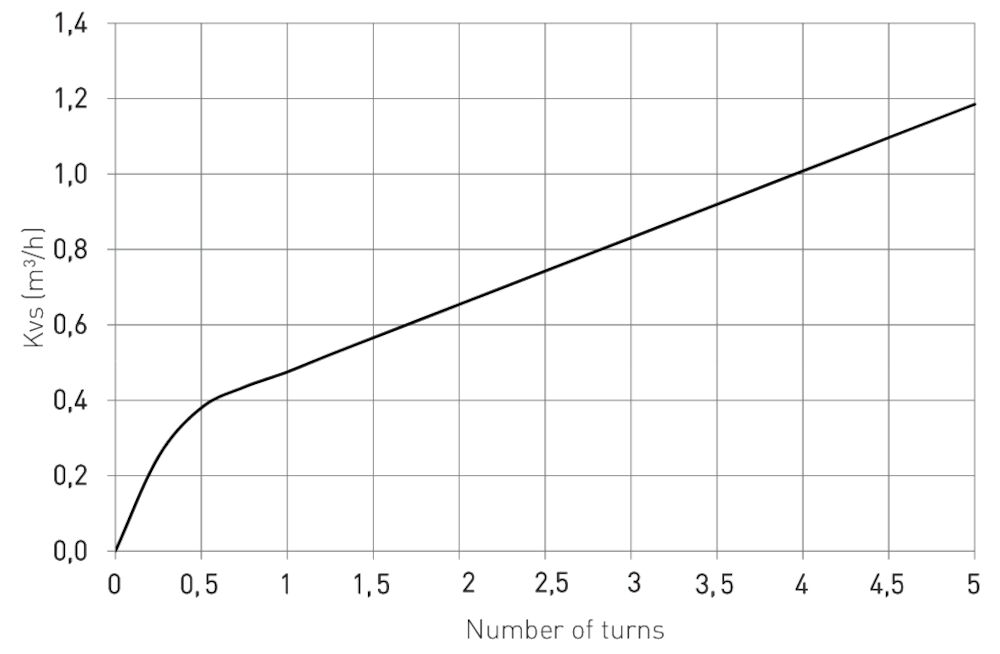

Valve Characteristics

Documentation

Product sheet

LK 430 Manifold

Brochure

Underfloor heating ENG

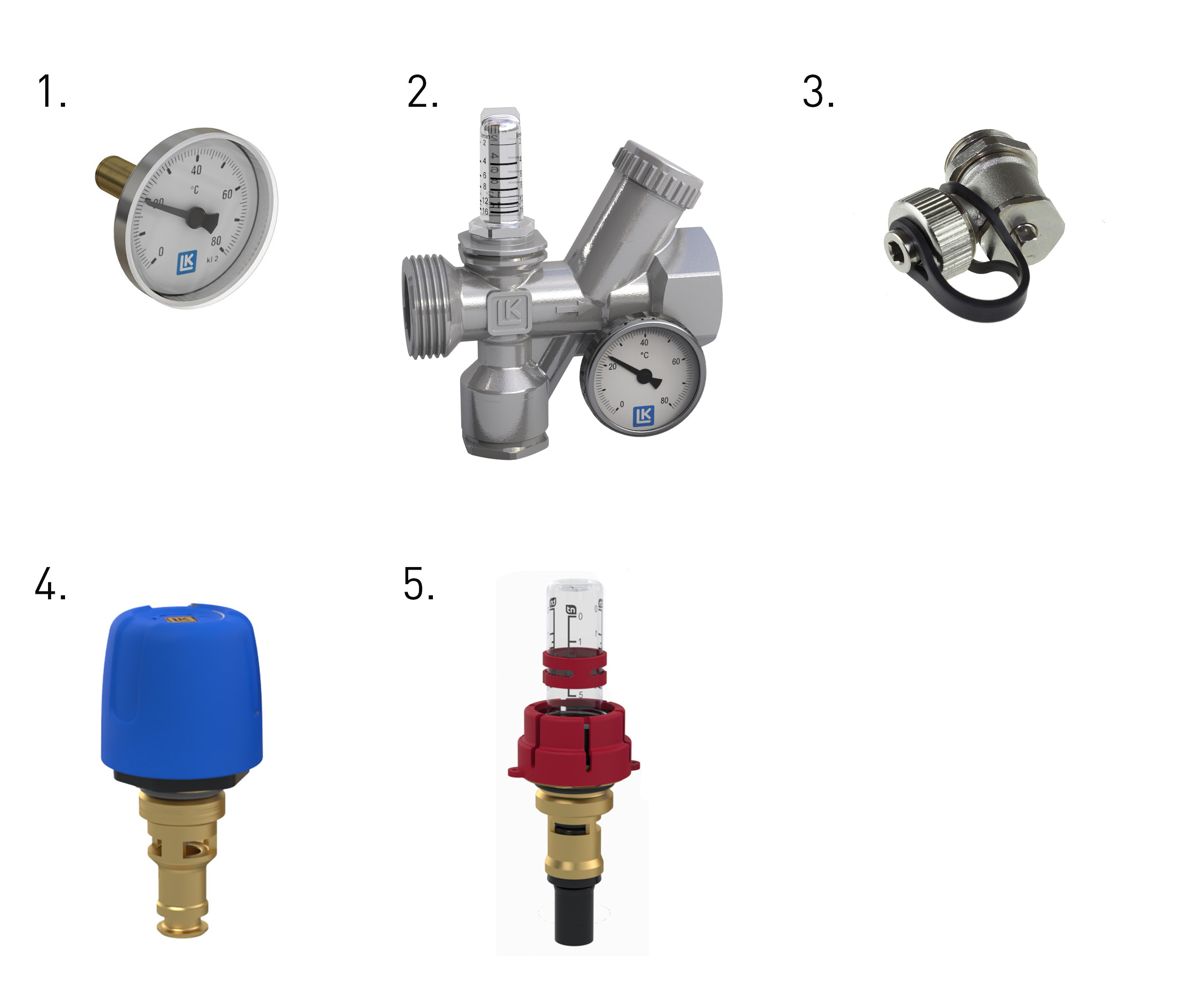

Accessories & Spare parts

Article no. Article Position
095018 Thermometer T40, 0 - 80 °C 1
090275 LK 435 OptiFlow, 2-16 l/min 2
090276 LK 435 OptiFlow, 4-36 l/min 2
095182 Drainage valve 3
095178 Return valve 4
095346 Adjustment valve, supply 5
