LK 440 EasyHeat 2.0

Upcoming News

LK 440 EasyHeat 2.0

  • Complete portable electrically heated boiler
  • Convertible from 9 kW to 3 kW with adapter
  • Easy installation

LK 440 EasyHeat 2.0 is a complete portable electric boiler with an output of 9 kW or 3 kW. It is primarily intended as a temporary heater for e.g. drying out concrete slabs with underfloor heating or for heatin...

Read more

LK 440 EasyHeat 2.0

  • Variants
  • Detailed Information
  • Documentation
  • Accessories & Spare parts

Variants

LK 440 2.0 - Female thread

LK 440 2.0 - Female thread 1 artikel

Article Dim. Connection Voltage Note Weight (kg) Item List
396587 F 1" 3-phase 400 V
Boiler must be protected using 3 x 16 A fuses (max. current 13.5 A) 		9 kW (2 x 4.5 kW) Safety thermostat 80 °C 16

396587

Dim. F 1"
Connection 3-phase 400 V
Boiler must be protected using 3 x 16 A fuses (max. current 13.5 A)
Voltage 9 kW (2 x 4.5 kW)
Note Safety thermostat 80 °C
Weight (kg) 16
Item list

Detailed Information

Description

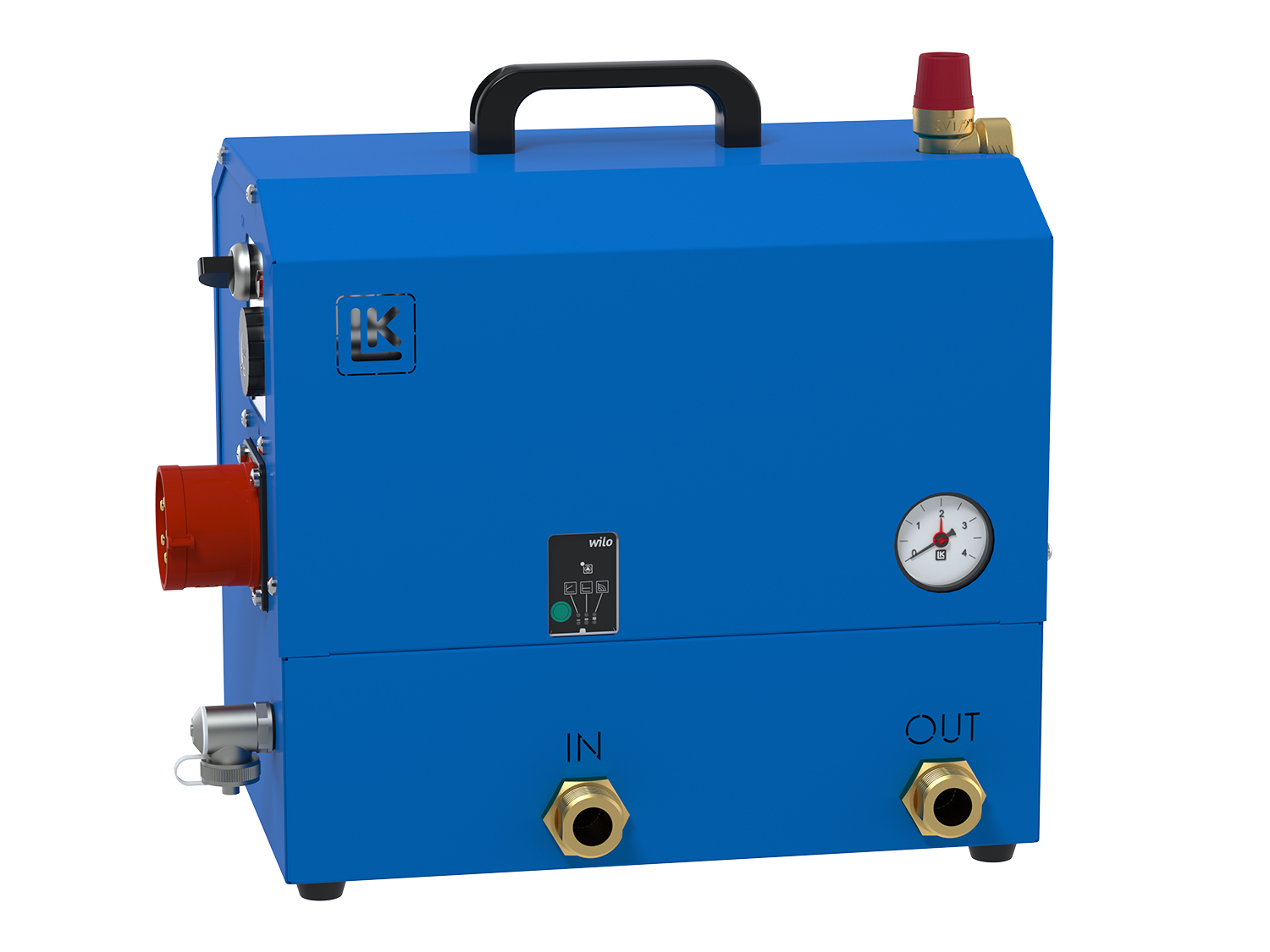

LK 440 EasyHeat 2.0 is a complete portable electric boiler with an output of 9 kW or 3 kW. It is primarily intended as a temporary heater for e.g. drying out concrete slabs with underfloor heating or for heating buildings during their construction.

You can easily set the desired constant temperature between 8 and 60°C.
With a 3-phase 400 V connection, the output is 9 kW. By connecting an adapter for 1-phase 230 V, the output is 3 kW.

The LK 440 is delivered in a blue cabinet for best protection. A pressure gauge shows the system pressure and any adjustment of the circulation pump speed is easily made on the pump's display. With its compact design, low weight and handle, the LK 440 is easy to transport.

Technical Data

Voltage: 400 VAC / 230 VAC
Max. boiler power: 9 kW, 3 kW (with adapter)
Sound level: < 30 dB
Max. working pressure: 0.3 Mpa (3 bar)
Working temperature: 8-60 °C
Min. supply temperature: 8 °C
Max. supply temperature: 60 °C
Thread standard: G - male thread
Protection type: IP 44
Media 1: Water - Glycol mixture max. 30%
Electrical connection: CEE-socket 400 V/16 A triple phase
Circulating pumps: , EEI ≤ 0.23 (see pump datasheet/label for exact value)
Thermostat: Operating thermostat Max 60 ºC
Safety thermostat 80 ºC
Expansion vessel: 6 l
Safety valve: 3 bar
Overheating protection: 80 °C
Other data: Boiler volume 1 l
Type approval certificate: CE

* With adapter

Documentation

Product sheet

LK 440 EasyHeat 2.0

Accessories & Spare parts

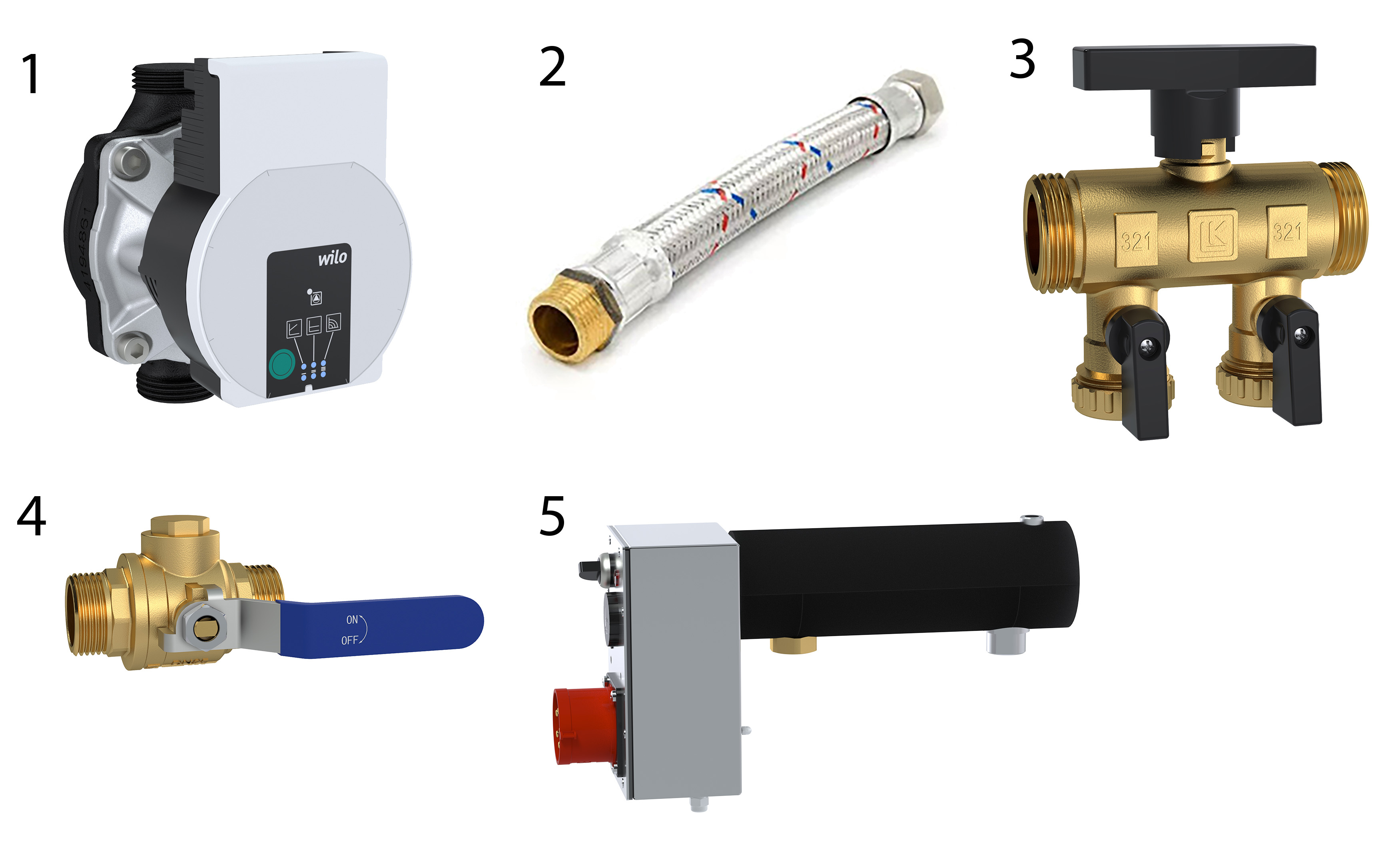

Article no. Article Position
187960 Wilo Para 15-130/6 SC FS14 1
187353 2 pcs. flexible hoses 1” F x 1” M, 1,5 m 2
092320 LK 321 MultiFill® 3
182437 LK 522 FilterBall Magnet 4
187992 Immersion heater 5
