LK 450 EasyHeat M

  • Portable
  • Water level detection
  • Lockable cabinet

The LK 450 EasyHeat M 3 kW or 9 kW is a complete portable electrically heated boiler. It is primarily meant to be used as a temporary heater, e.g. for drying concrete slabs installed with underfloor heating or ...

LK 450 EasyHeat M

Variants

LK 450 EasyHeat M - 3kW

LK 450 EasyHeat M - 3kW 1 artikel

Article Connection Voltage Weight (kg) Item List
299742 1" 230 V <25

299742

Connection 1"
Voltage 230 V
Weight (kg) <25
Item list
LK 450 EasyHeat M - 9 kW

LK 450 EasyHeat M - 9 kW 1 artikel

Article Connection Voltage Weight (kg) Item List
299748 1" 400 V <25

299748

Connection 1"
Voltage 400 V
Weight (kg) <25
Item list

Detailed Information

Description

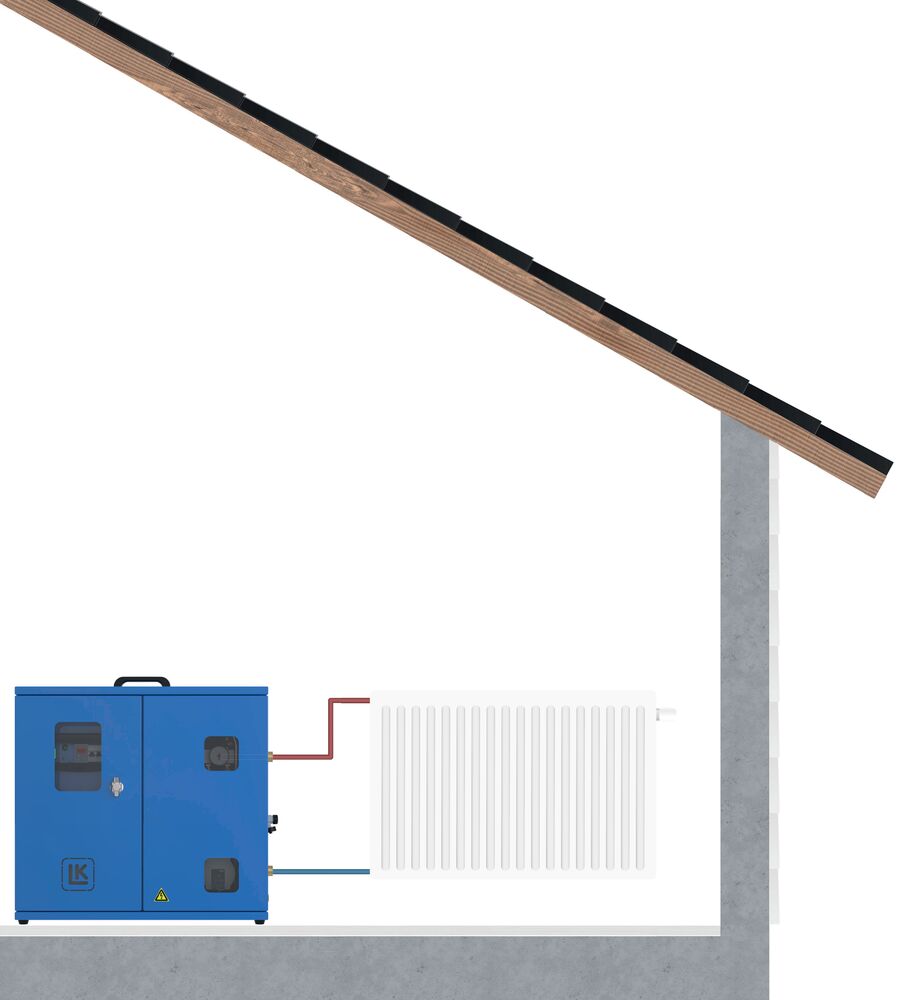

The LK 450 EasyHeat M (manual) 3 kW or 9 kW is a complete portable electrically heated boiler. It is primarily meant to be used as a temporary heater, e.g. for drying concrete slabs installed with underfloor heating or for heating buildings under construction.

With the LK 450 EasyHeat M, setting the required constant temperature between 8 and 60°C is easy.
The LK 450 EasyHeat is available in two versions: single phase 230 V with 3 kW output or 3-phase 400 V with 9 kW output.
With its built-in water level detection, damage to the immersion heater is prevented if the water level in the system gets too low.

EasyHeat comes in a blue aluminum cabinet with inspection window, so you can monitor the unit during operation. The cabinet can be locked to prevent accidental changes to the set temperature.

The LK 321 MultiFill® is available as an accessory, and makes it easy to fill the system. The LK 522 filter ball is used to protect EasyHeat from dirt and magnetite. Transport trolley to simplify moving unit. Connection pipes for easy connection between EasyHeat and the heating system. Refer to Accessories & Spare parts.

Technical Data

Voltage: 3 kW: 230 V
9 kW: 400 V
Primary voltage, adapter: 3 kW: 230 V
9 kW: 400 V
Max. boiler efficiency: 3 kW (1,5 + 1,5 kW)
9 kW (3 + 6 kW)
Working temperature: 8-60 °C
Min. supply temperature: 8 °C
Max. supply temperature: 60 °C
Max. working pressure: 3 bar
Media 1: Water - Glycol mixture max. 30%
Thread standard: G - female thread
Circulating pumps: Wilo Para 15/6 - Composite
Sound level: <30 dB
Electrical connection: 3 kW: CEE 16 A/230 V/50 Hz/1~ 1-Phase
9 kW: CEE-socket 400 V/16 A 5-pole
Protection type: IP44
Other data: Antifreeze function Yes
Level guard Yes
Expansion vessel: 6 l
Overheating protection: 80 °C
Approvals: CE

Accessories & Spare parts

Article no. Article Position
187354 Wilo Para 15/6 - Composite 1
187352 Transport trolley 2
187353 2 pcs. flexible hoses 1” F x 1” M, 1,5 m 3
092320 LK 321 MultiFill® 4
182437 LK 522 FilterBall Magnet 5
