The LK 460 EasyHeat is a complete portable electrically heated boiler. It is primarily meant to be used as a temporary heater, e.g. for drying concrete slabs installed with under floor heating and for heating b...
Read more
Description

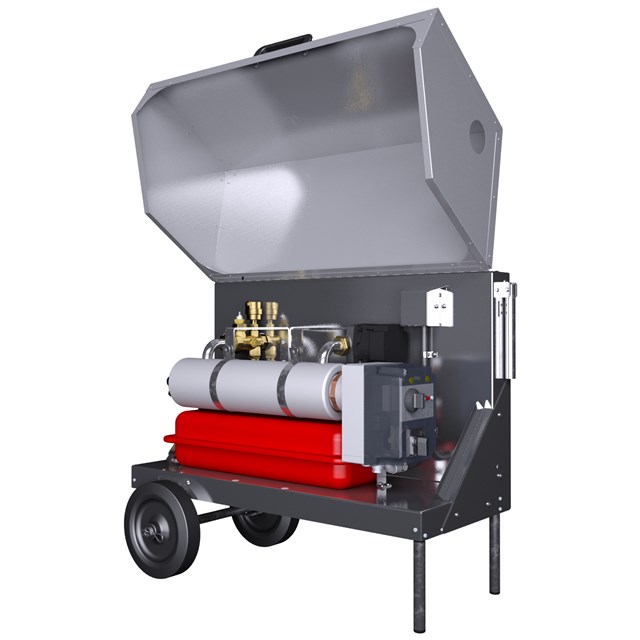

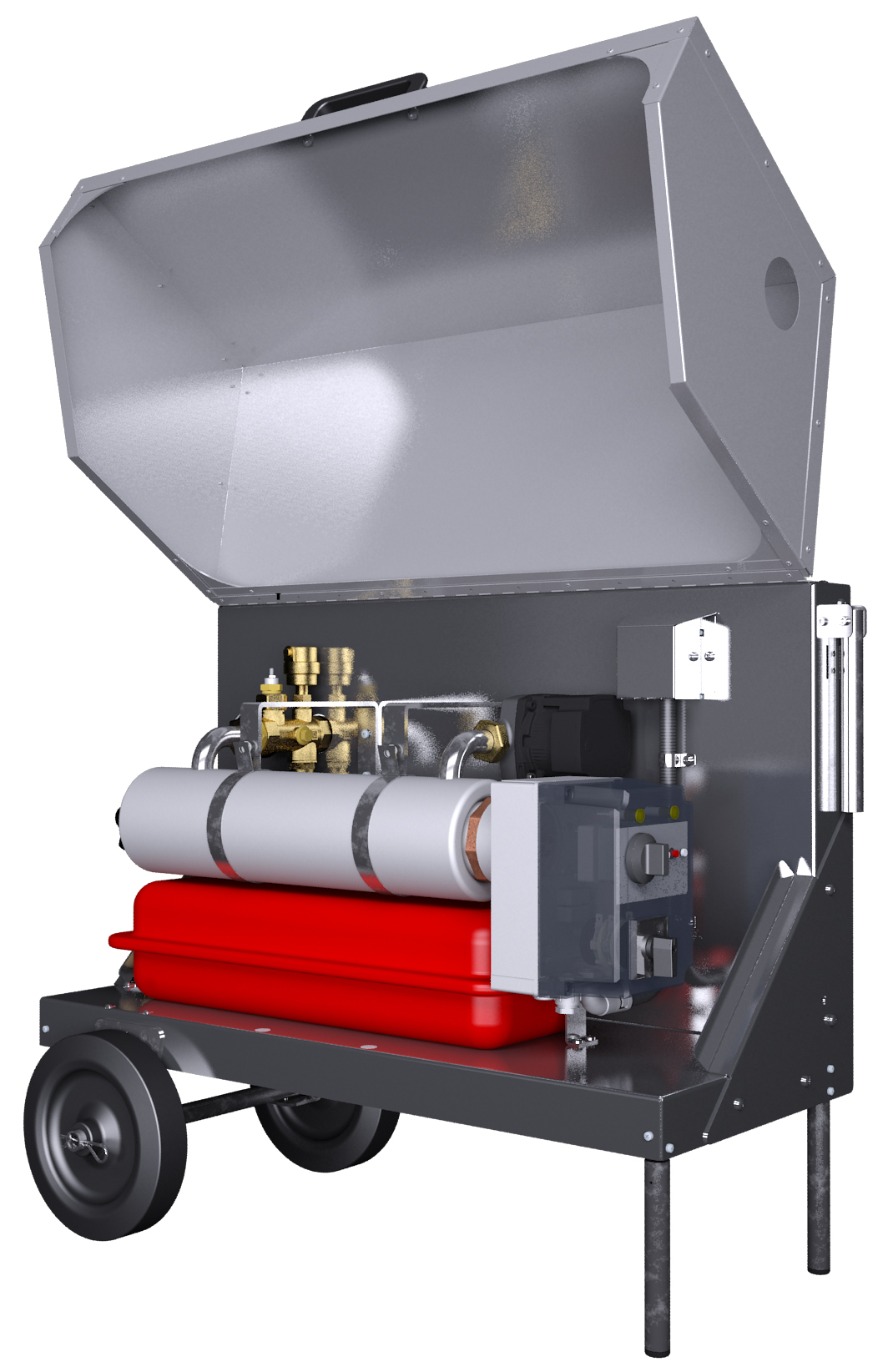

                                        The LK 460 EasyHeat is a complete portable electrically heated boiler. It is primarily meant to be used as a temporary heater, e.g. for drying concrete slabs installed with under floor heating and for heating buildings under construction installed with a under floor heating system. The boiler can also replace the existing heat source in the event of a breakdown.
The boiler is available in several versions, equipped with a total output capacity of 2x4.5 kW (9kW) and 22kW / 42 kW. The output capacity is provided in different settings to provide a high comfort, efficient economy and a long-life span for the heating elements within the boiler.
The 22/42 kW versions can if required be reduced to 3,75 kW (22 kW) 6 kW (42 kW) output respectively. This provides a high comfort, efficient economy and a longer lifetime for the heating elements.
The boiler is supplied complete with a circulation pump, an expansion tank, auxiliary devices including a safety valve, air-bleed valve and a temperature adjuster. The cabinet is equipped with a lock and manufactured in galvanised steel. The lid is operated with shock absorbers.
Connection to manifold/heating system is simple, using steel-reinforced flexible hoses.
Temperature regulation is controlled by the boiler’s operating thermostat.

Technical Data
| Voltage: | 400 V 3N~50Hz |
| Power consumption: | 9 kW, 22 kW, 42 kW |
| Working temperature: |
                                                    9 kW: 0 - 60 ºC 22 & 42 kW: 20 - 95 ºC  |

| Protection class: | IP 44 |
| Media 1: | Water - Glycol mixture max. 30% |
| Connection: | Claw coupling (or 1”/R25 M) |
| Circulating pumps: | Grundfos UPM3 AUTO L 15-50 |
| Other data: |
                                                    Current: 9 kW: 16 A, 22 kW: 32 A, 42 kW: 63 A Fuse: 9 kW: 3x16 A, 22 kW: 3x32 A, 42 kW: 3x63 A Operating thermostat: Max 60 ºC Safety thermostat: 80 ºC Expansion tank: 12 l Safety valve: 9 kW: 1,5 bar, 22 & 42 kW: 3 bar Boiler volume: 9 kW: 2 l, 22 & 42 kW: 18 l  |

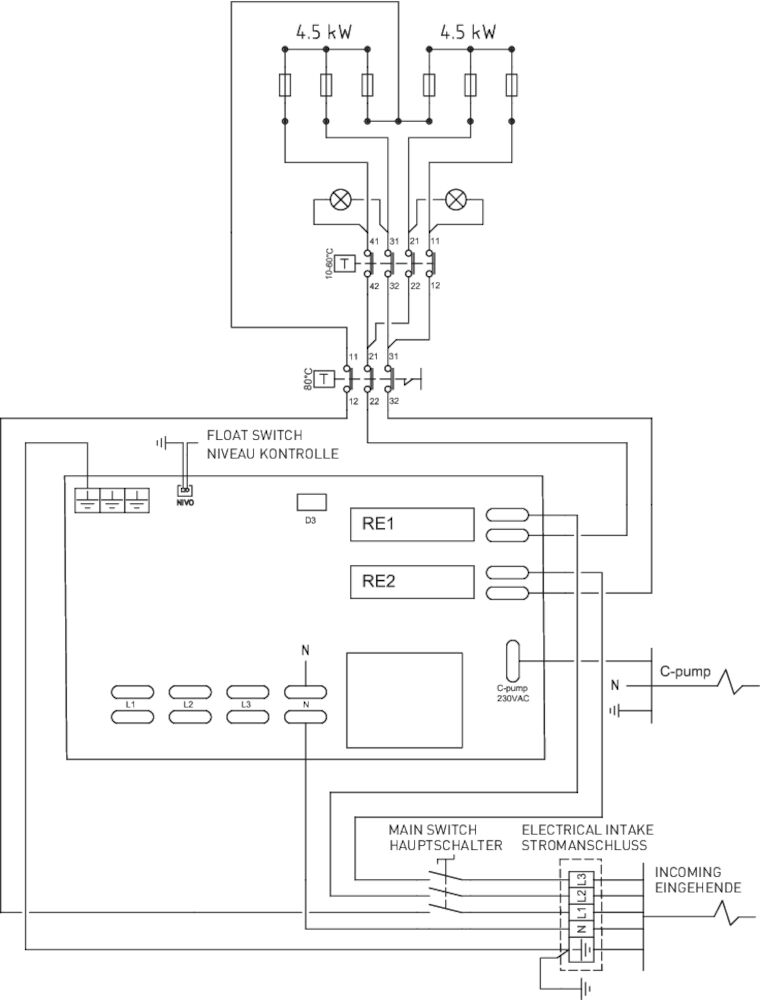

Application


                                            Technical Diagrams

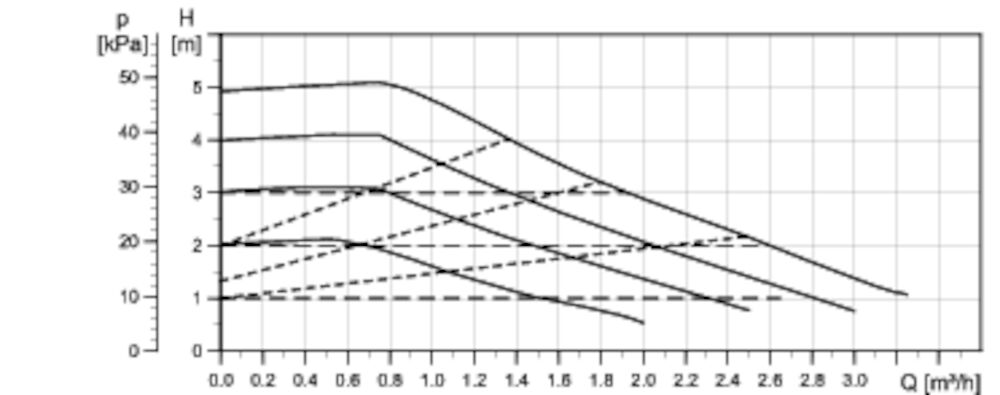

                                                        Capacity Diagram
