LK 471 & 472 HeatBooster

Upcoming News

LK 471 & 472 HeatBooster

  • Extra power when needed
  • Complete unit
  • Integrated zone valve (LK 472)

LK HeatBooster is designed to provide supplementary heating in systems where extra energy is needed, ensuring stable and efficient operation even during peak demand. LK HeatBooster has an output of 3 kW or 9 kW...

Read more

LK 471 & 472 HeatBooster

  • Variants
  • Detailed Information
  • Documentation
  • Accessories & Spare parts

Variants

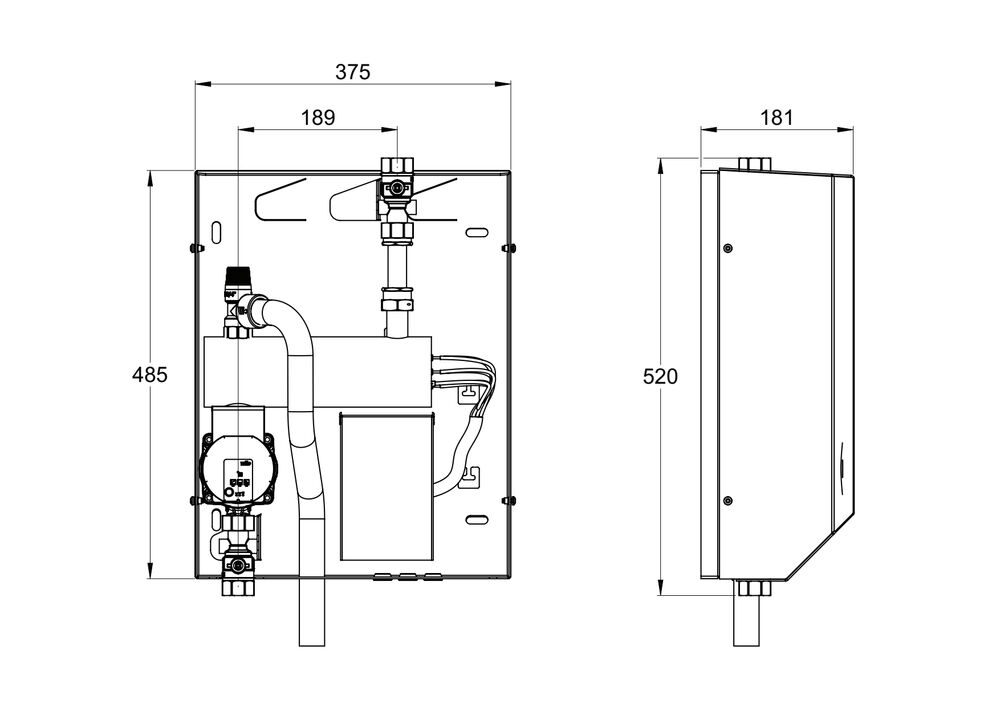

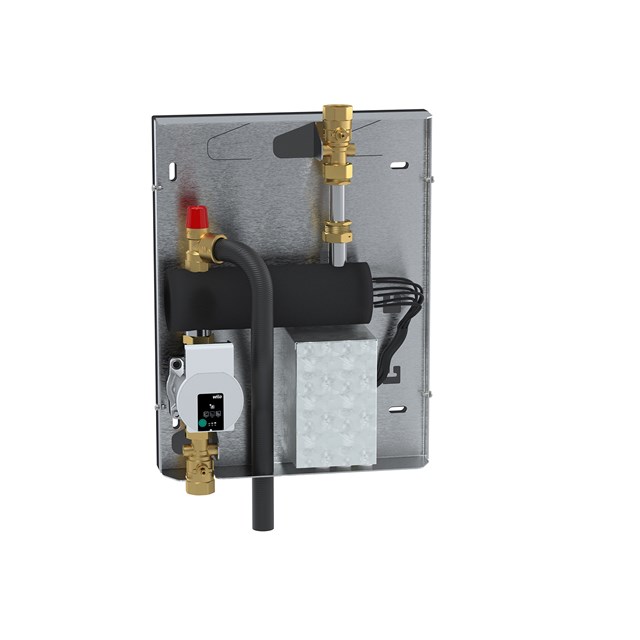

LK 471

LK 471 1 artikel

Article Dim. Voltage Weight (kg) Item List
396620 M 1" 230 V: 3 kW 15

396620

Dim. M 1"
Voltage 230 V: 3 kW
Weight (kg) 15
Item list
LK 472 - Integrated zone valve

LK 472 - Integrated zone valve 1 artikel

Article Dim. Voltage Operation time Weight (kg) Item List
396621 M 1" 400 V: 9 kW 8 s 15.3

396621

Dim. M 1"
Voltage 400 V: 9 kW
Operation time 8 s
Weight (kg) 15.3
Item list

Detailed Information

Description

LK HeatBooster is designed to provide supplementary heating in systems where extra energy is needed, ensuring stable and efficient operation even during peak demand. LK HeatBooster has an output of 3 kW or 9 kW and contains all the necessary components for safe operation.

LK HeatBooster is available in two versions: LK 471 HeatBooster has a connection to one heat source and LK HeatBooster 472 has connections to two heat sources, e.g. for heating and tap water systems, where the integrated zone valve controls the flow to the prioritized heat source.

Technical Data

Voltage: 230 VAC: 3 kW
400 VAC: 9 kW
Max. boiler power: 9 kW / 3 kW
Max. working pressure: 0.3 Mpa (3 bar)
Min. supply temperature: 8 °C
Max. supply temperature: 80 °C
Thread standard: G - female thread
Protection type: IP 44
Media 1: Water - Glycol mixture max. 30%
Circulating pumps: Wilo Para 15-130/8 IPWM1, EEI ≤ 0.23 (see pump datasheet/label for exact value)
Overheating protection: 80 °C
Type approval certificate: CE

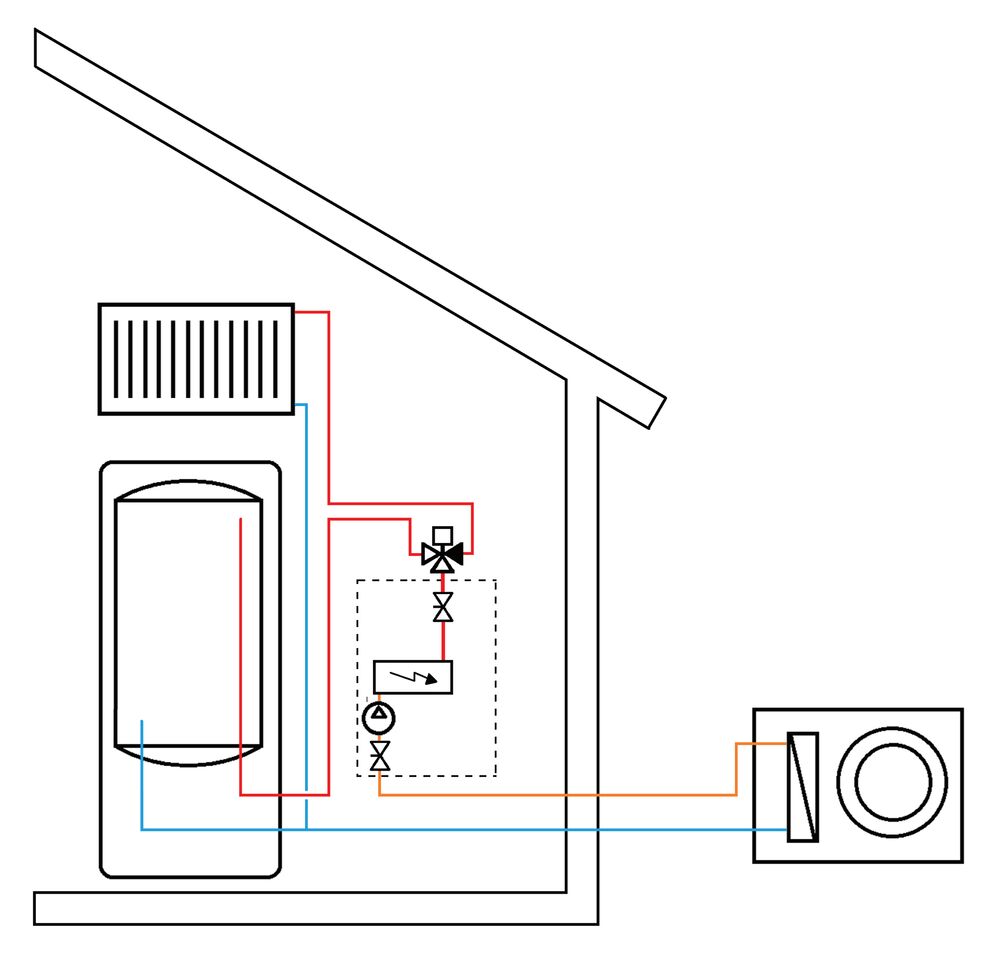

Application

LK 471

LK 472

Documentation

Product sheet

LK 471 & 472 HeatBooster

Accessories & Spare parts

Article no. Article Position
066061 EMV 110-K SPST Actuator 230 VAC with cable 1 m 1
066379 525 MultiZone 3W, M 1" 2
187988 Ball valve without handle F 1” x F 1” 3
095472 Wilo Para IPWM1 15-130/8 4
181991 Immersion heater 5
