LK HydronicGroup C/C 90

LK HydronicGroup C/C 90

  • All in one
  • Easy to install
  • Easy to combine with electronic regulation

LK HydronicGroup is a complete pump group that is suitable for heating systems where direct supply or mixed supply is desirable.

LK HydronicGroup C/C 90

  • Variants
  • Detailed Information
  • Documentation
  • Videos
  • Accessories & Spare parts

Variants

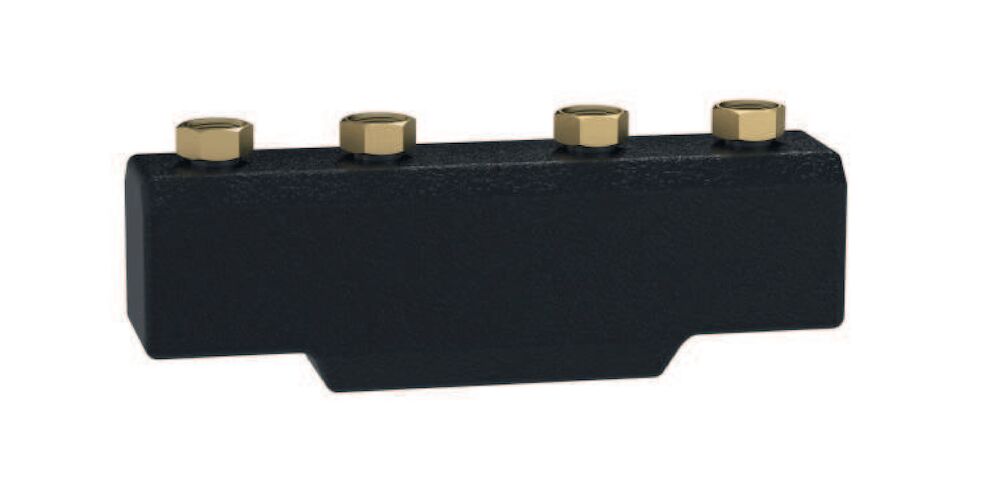

LK 860 - Manifold

LK 860 - Manifold 2 variants

Article Type Dim. Note Weight (kg) Item List
182125 Manifold 2 pc groups F 1” x M 1” 0.3 MPa (3 Bar) 3.3
182126 Manifold 3 pc groups M 1” x F 1” 0.3 MPa (3 Bar) 4.5

182125

Type Manifold 2 pc groups
Dim. F 1” x M 1”
Note 0.3 MPa (3 Bar)
Weight (kg) 3.3
Item list

182126

Type Manifold 3 pc groups
Dim. M 1” x F 1”
Note 0.3 MPa (3 Bar)
Weight (kg) 4.5
Item list

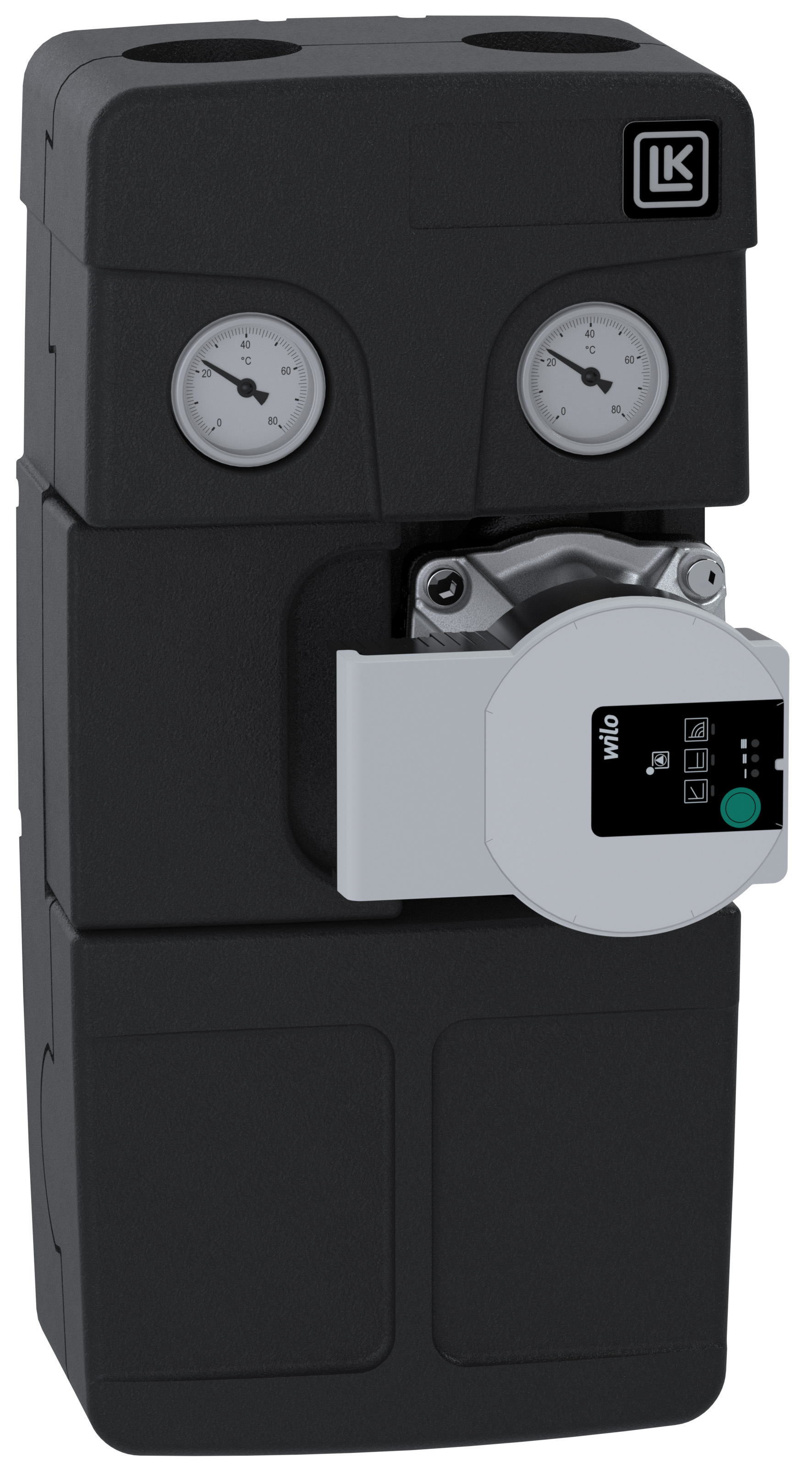

LK 861 - Pump group with direct supply

LK 861 - Pump group with direct supply 2 variants

Article Type Dim. Weight (kg) Item List
299172 Wilo PARA 15-130/8-75/SC-9 F 1” x M 1” 3.7
299174 Taco ES2C 15-70-130 F 1” x M 1” 3.7

299172

Type Wilo PARA 15-130/8-75/SC-9
Dim. F 1” x M 1”
Weight (kg) 3.7
Item list

299174

Type Taco ES2C 15-70-130
Dim. F 1” x M 1”
Weight (kg) 3.7
Item list

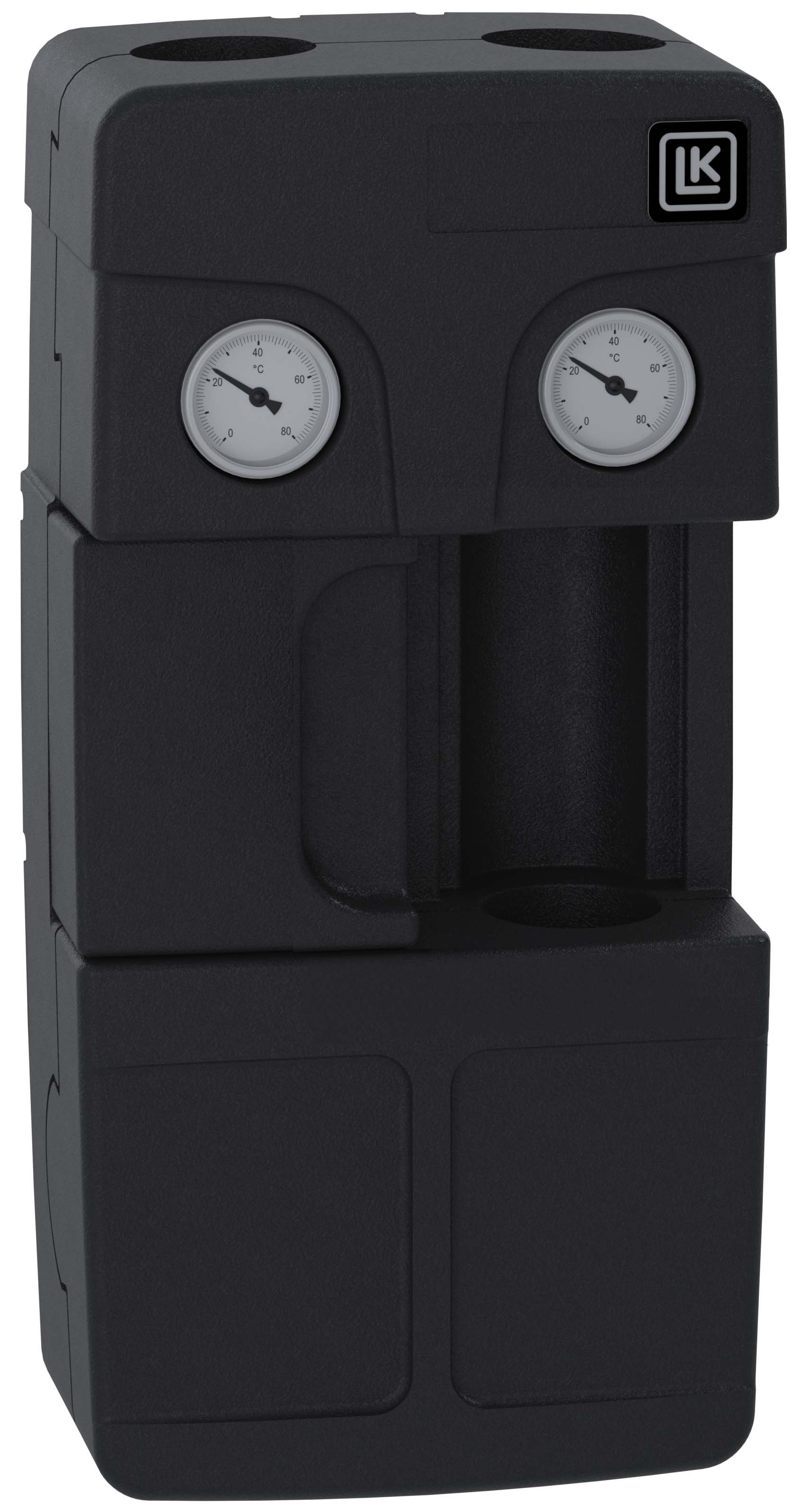

LK 861 - Pump Group with direct supply. Without pump

LK 861 - Pump Group with direct supply. Without pump 1 artikel

Article Dim. Weight (kg) Item List
299842 F 1" x M 1" 1.7

299842

Dim. F 1" x M 1"
Weight (kg) 1.7
Item list
LK 862 R - Pump group with mixed supply - Right version

LK 862 R - Pump group with mixed supply - Right version 2 variants

Article Type Dim. Kvs m³/h Weight (kg) Item List
299171 Wilo PARA 15-130/8-75/SC-9 F 1” x M 1” 6,3 / 10,0 4.0
299173 Taco ES2C 15-70-130 F 1” x M 1” 6,3 / 10,0 4.0

299171

Type Wilo PARA 15-130/8-75/SC-9
Dim. F 1” x M 1”
Kvs m³/h 6,3 / 10,0
Weight (kg) 4.0
Item list

299173

Type Taco ES2C 15-70-130
Dim. F 1” x M 1”
Kvs m³/h 6,3 / 10,0
Weight (kg) 4.0
Item list
LK 862 R - Pump group with mixed supply. Without pump

LK 862 R - Pump group with mixed supply. Without pump 1 artikel

Article Dim. Kvs m³/h Weight (kg) Item List
299841 F 1" x M 1" 6,3 /10,0 2.0

299841

Dim. F 1" x M 1"
Kvs m³/h 6,3 /10,0
Weight (kg) 2.0
Item list

Detailed Information

Description

LK HydronicGroup is a complete pump group that is suitable for heating systems where direct supply or mixed supply is desirable.

LK HydronicGroup comprises a high efficient circulation pump, insulation, wall mounting bracket and two ball valves with thermometer. In the model where mixed supply is desired, a three-way mixing valve is included.

A manifold for two, optionally three, pump groups is available as an accessory, see accessories and spare parts. Wall mounting bracket is not included with manifold, it must be ordered separately, see accessories and spare parts.

Technical Data

Voltage: 230 VAC 50/60 Hz
Power consumption: 10-75 W, depending on pump speed
Working temperature: Min. 5 °C/Max. 100 °C
Ambient temperature: Min. 5 °C/Max. 58 °C
Max. working pressure: 1.0 MPa (10 bar)
Leakage: < 0,2% of Kvs at 100 kPa
Media 1: Wilo: Water - Glycol mixture max. 50%
Media 2: Taco: Water - Glycol mixture max. 30%
Thread standard: Rp - female thread, G - male thread
Circulating pumps: Wilo Para 15-130/8-75/SC-9, Taco ES2C 15-70-130
Material, valve body: Brass EN 12165 CW617N
Material, insulation: Expanded Polypropylene EPP

Application

Pump group with mixing valve

LK 861 Right LK 861 Left

Technical Diagrams

Capacity diagram

Documentation

Product sheet

LK HydronicGroup C/C 90

Brochure

248090_LK HydronicGroup_ENG.pdf

Instruction manual

248125 LK HydronicGroup CC 90.pdf

Applications

Biofuel_Application_ENG_248162.pdf

Applications

Solar heating_Brochure_SE_248224.pdf

Applications

District heating_Brochure_ENG_248166.pdf

Applications

Water jacketed stove _Brochure_ENG_248244.pdf

Applications

Heat pump_Brochure_ENG_248165.pdf

Accessories & Spare parts

Article no. Article Position
187227 Wilo PARA 15-130/8-75/SC-9 1
187228 Taco ES2C 15-70-130 1
187229 Bracket 2
187230 EPP Insulation 3
187231 Ballvalve, LK 316 F1” / F1” 4
095018 Thermometer T40, 0 - 80 °C 5
182765 LK 850 ThermoMix HG Kvs 6,3/10 6
187190 Repair kit LK 840 DN 15-20 7
