LK 522 FilterBall

LK 522 FilterBall

  • DZR Brass
  • Easy to clean the filter

LK 522 FilterBall is a ball valve with an integrated filter suitable for heating, cooling and tap water systems.

LK 522 FilterBall

  • Variants
  • Detailed Information
  • Documentation
  • Videos
  • Accessories & Spare parts

Variants

LK 522 - Female thread

LK 522 - Female thread 5 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm E mm Note Weight (kg) Dimensional sketch Item List
182015 F ¾" 7,5 60 55 87 117 51 Mesh opening filter: 0.7 mm 0.3
182016 F 1" 11,0 71 60 107 142 61 Mesh opening filter: 0.7 mm 0.5
182017 F 1¼" 20,0 84 65 107 149 75 Mesh opening filter: 0.7 mm 0.9
182018 F 1½" 33,0 93 80 143 189 88 Mesh opening filter: 0.7 mm 1.3
182019 F 2" 55,0 119 90 143 203 105 Mesh opening filter: 0.7 mm 2.1

182015

Dim. F ¾"
Kvs m³/h 7,5
A mm 60
B mm 55
C mm 87
D mm 117
E mm 51
Note Mesh opening filter: 0.7 mm
Weight (kg) 0.3
Dimensional sketch
Item list

182016

Dim. F 1"
Kvs m³/h 11,0
A mm 71
B mm 60
C mm 107
D mm 142
E mm 61
Note Mesh opening filter: 0.7 mm
Weight (kg) 0.5
Dimensional sketch
Item list

182017

Dim. F 1¼"
Kvs m³/h 20,0
A mm 84
B mm 65
C mm 107
D mm 149
E mm 75
Note Mesh opening filter: 0.7 mm
Weight (kg) 0.9
Dimensional sketch
Item list

182018

Dim. F 1½"
Kvs m³/h 33,0
A mm 93
B mm 80
C mm 143
D mm 189
E mm 88
Note Mesh opening filter: 0.7 mm
Weight (kg) 1.3
Dimensional sketch
Item list

182019

Dim. F 2"
Kvs m³/h 55,0
A mm 119
B mm 90
C mm 143
D mm 203
E mm 105
Note Mesh opening filter: 0.7 mm
Weight (kg) 2.1
Dimensional sketch
Item list
LK 522 - Male thread

LK 522 - Male thread 2 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm E mm Note Weight (kg) Dimensional sketch Item List
182432 M ¾" 5,0 74 55 87 126 51 Mesh opening filter: 0.7 mm 0.4
182433 M 1" 10,0 85.5 60 107 153 61 Mesh opening filter: 0.7 mm 0.6

182432

Dim. M ¾"
Kvs m³/h 5,0
A mm 74
B mm 55
C mm 87
D mm 126
E mm 51
Note Mesh opening filter: 0.7 mm
Weight (kg) 0.4
Dimensional sketch
Item list

182433

Dim. M 1"
Kvs m³/h 10,0
A mm 85.5
B mm 60
C mm 107
D mm 153
E mm 61
Note Mesh opening filter: 0.7 mm
Weight (kg) 0.6
Dimensional sketch
Item list
LK 522 without handle - Female thread

LK 522 without handle - Female thread 5 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm Note Weight (kg) Dimensional sketch Item List
182337 F ¾" 5,0 60 42 30 51 Mesh opening filter: 0.5 mm 0.3
182338 F 1" 10,0 71 46 36 61 Mesh opening filter: 0.5 mm 0.5
182339 F 1¼" 17,0 84 54 42 75 Mesh opening filter: 0.5 mm 0.9
182340 F 1½" 19,0 93 61 47 88 Mesh opening filter: 0.5 mm 1.3
182341 F 2" 21,0 119 69 60 105 Mesh opening filter: 0.5 mm 2.1

182337

Dim. F ¾"
Kvs m³/h 5,0
A mm 60
B mm 42
C mm 30
D mm 51
Note Mesh opening filter: 0.5 mm
Weight (kg) 0.3
Dimensional sketch
Item list

182338

Dim. F 1"
Kvs m³/h 10,0
A mm 71
B mm 46
C mm 36
D mm 61
Note Mesh opening filter: 0.5 mm
Weight (kg) 0.5
Dimensional sketch
Item list

182339

Dim. F 1¼"
Kvs m³/h 17,0
A mm 84
B mm 54
C mm 42
D mm 75
Note Mesh opening filter: 0.5 mm
Weight (kg) 0.9
Dimensional sketch
Item list

182340

Dim. F 1½"
Kvs m³/h 19,0
A mm 93
B mm 61
C mm 47
D mm 88
Note Mesh opening filter: 0.5 mm
Weight (kg) 1.3
Dimensional sketch
Item list

182341

Dim. F 2"
Kvs m³/h 21,0
A mm 119
B mm 69
C mm 60
D mm 105
Note Mesh opening filter: 0.5 mm
Weight (kg) 2.1
Dimensional sketch
Item list
LK 522 without handle - Male thread

LK 522 without handle - Male thread 2 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm Note Weight (kg) Dimensional sketch Item List
182434 M ¾" 5,0 74 42 39 61 Mesh opening filter: 0.5 mm 0.4
182435 M 1" 10,0 85.5 46 45.5 61 Mesh opening filter: 0.5 mm 0.6

182434

Dim. M ¾"
Kvs m³/h 5,0
A mm 74
B mm 42
C mm 39
D mm 61
Note Mesh opening filter: 0.5 mm
Weight (kg) 0.4
Dimensional sketch
Item list

182435

Dim. M 1"
Kvs m³/h 10,0
A mm 85.5
B mm 46
C mm 45.5
D mm 61
Note Mesh opening filter: 0.5 mm
Weight (kg) 0.6
Dimensional sketch
Item list

Detailed Information

Description

LK 522 FilterBall is a ball valve with an integrated filter suitable for heating, cooling and tap water systems.

The filter is easy to clean, just close the ball valve, unscrew the lid and remove the filter.

The valve requires no maintenance, but the installation should still be checked regularly.

Technical Data

Working temperature: Min. -20 °C/Max. 120 °C
Max. working pressure: 1.6 MPa (16 bar)
Media 1: Water - Glycol mixture max. 50%
Thread standard: ISO 228/1
Mesh opening, filter: 0.7 mm / 0.5 mm
Material, valve body: DZR Brass EN 12165 CW625N
Material, filter element: Stainless Steel
Material, cover sealing: EPDM
Material, sealing: PTFE
Spindle sealing: Two O-rings, EPDM

Application

Technical Diagrams

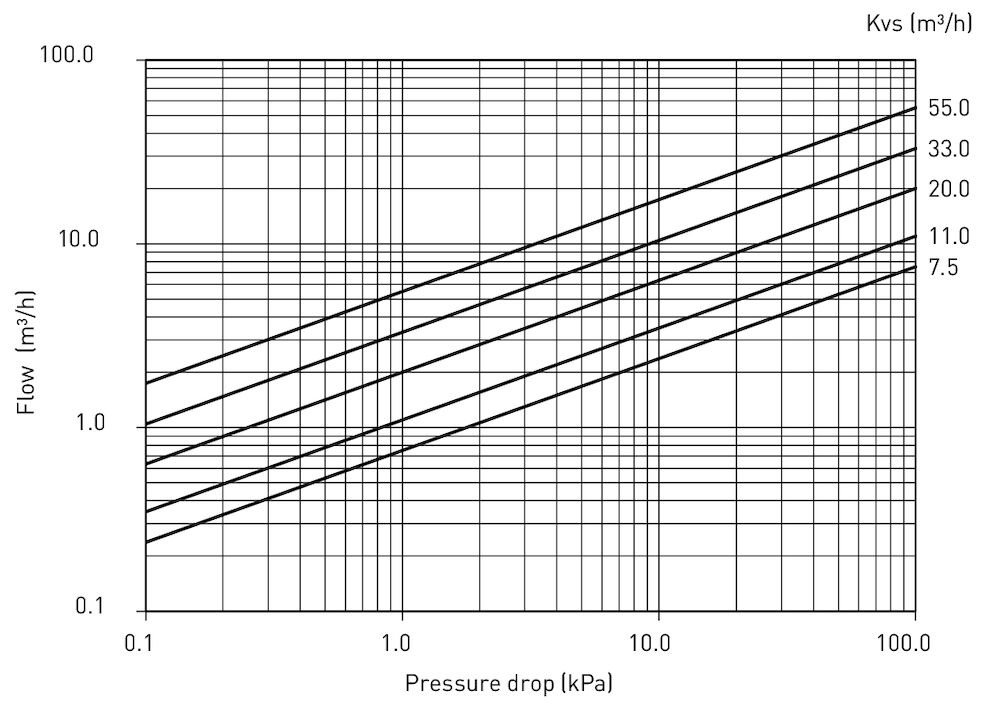

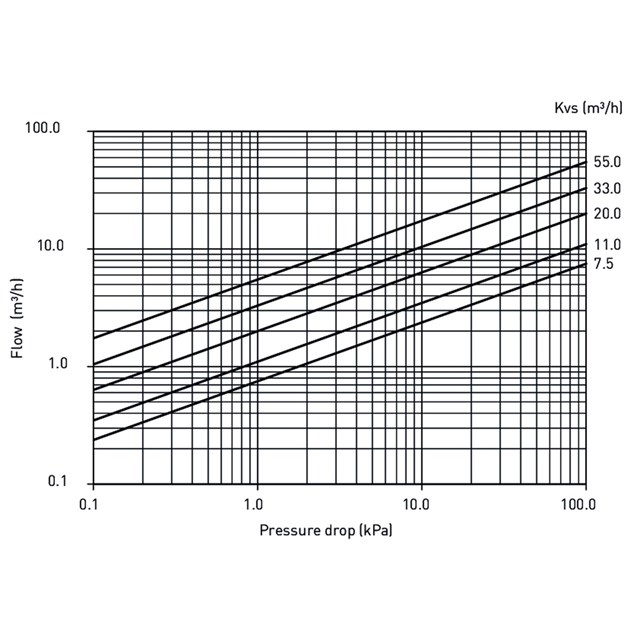

Capacity Diagram - 0,7 mm

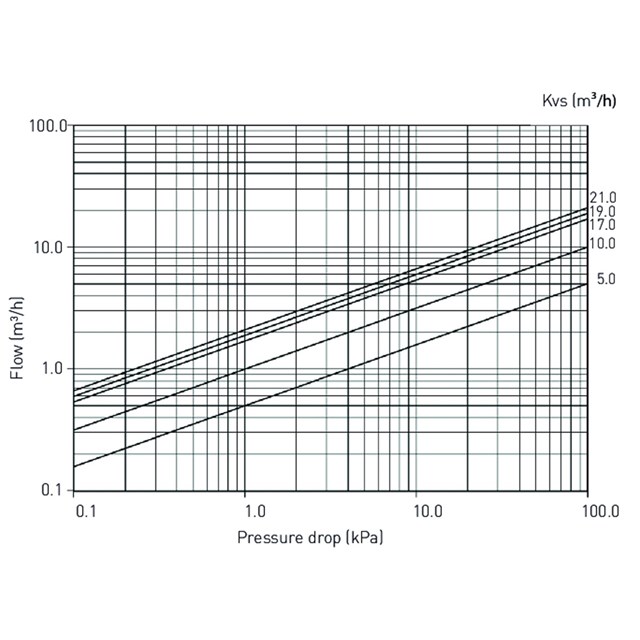

Capacity Diagram - 0,5 mm

Documentation

Product sheet

LK 522 FilterBall

Instruction manual

248058 LK 522 FilterBall_Instruction_A6.pdf

Certificate/Type approval

05 DoC 520_521_522_525_548_550_551_924.pdf

Brochure

248304_522 FilterBall_Eng.pdf

Applications

Biofuel_Application_ENG_248162.pdf

Applications

Solar heating_Brochure_SE_248224.pdf

Applications

Water heating_Brochure_ENG_248233.pdf

Applications

District heating_Brochure_ENG_248166.pdf

Applications

Water jacketed stove _Brochure_ENG_248244.pdf

Applications

Heat pump_Brochure_ENG_248165.pdf

Accessories & Spare parts

Article no. Article Position
095414 Filter ¾", Mesh opening: 0.7 mm
095425 Locking ring / Clip ¾"
095415 Filter 1", Mesh opening: 0.7 mm
095426 Locking ring / Clip 1"
095416 Filter 1¼", Mesh opening: 0.7 mm
095417 Filter 1½, Mesh opening: 0.7 mm
095428 Locking ring / Clip 1½"
095418 Filter 2", Mesh opening: 0.7 mm
095419 Filter ¾", Mesh opening: 0.5 mm
095420 Filter 1", Mesh opening: 0.5 mm
095421 Filter 1¼", Mesh opening: 0.5 mm
095422 Filter 1½", Mesh opening: 0.5 mm
095423 Filter 2", Mesh opening: 0.5 mm
095427 Locking ring / Clip 1¼"
095429 Locking ring / Clip 2"
095437 Cover & O-ring ¾" 3
095438 Cover & O-ring 1" 3
095439 Cover & O-ring 1¼" 3
095440 Cover & O-ring 1½" 3
095441 Cover & O-ring 2" 3
