LK 822 ThermoBac

Internal

LK 822 ThermoBac

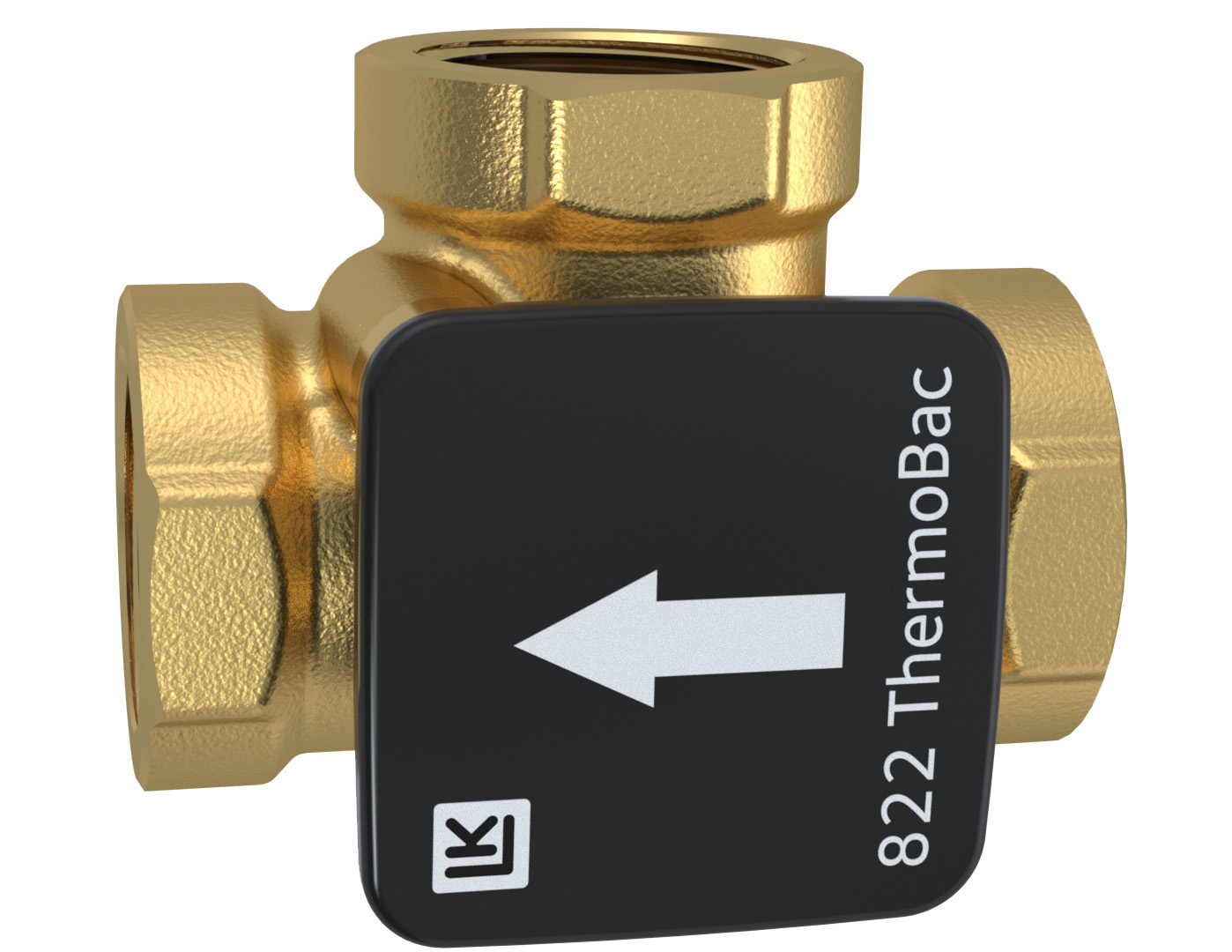

LK 822 ThermoBac is a 3-way check valve with low opening pressure and high fluid capacity. The valve is especially suitable for heating systems with storage tanks. The check valve prevents self-circulation from...

Read more

LK 822 ThermoBac

  • Variants
  • Detailed Information
  • Documentation
  • Accessories & Spare parts

Variants

LK 822 - Female thread

LK 822 - Female thread 2 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm E mm Weight (kg) Dimensional sketch Item List
181109 F 1" 14,0 82 41 67 21 35 0.7
181110 F 1¼" 16,0 84 42 68 24 39 0.7

181109

Dim. F 1"
Kvs m³/h 14,0
A mm 82
B mm 41
C mm 67
D mm 21
E mm 35
Weight (kg) 0.7

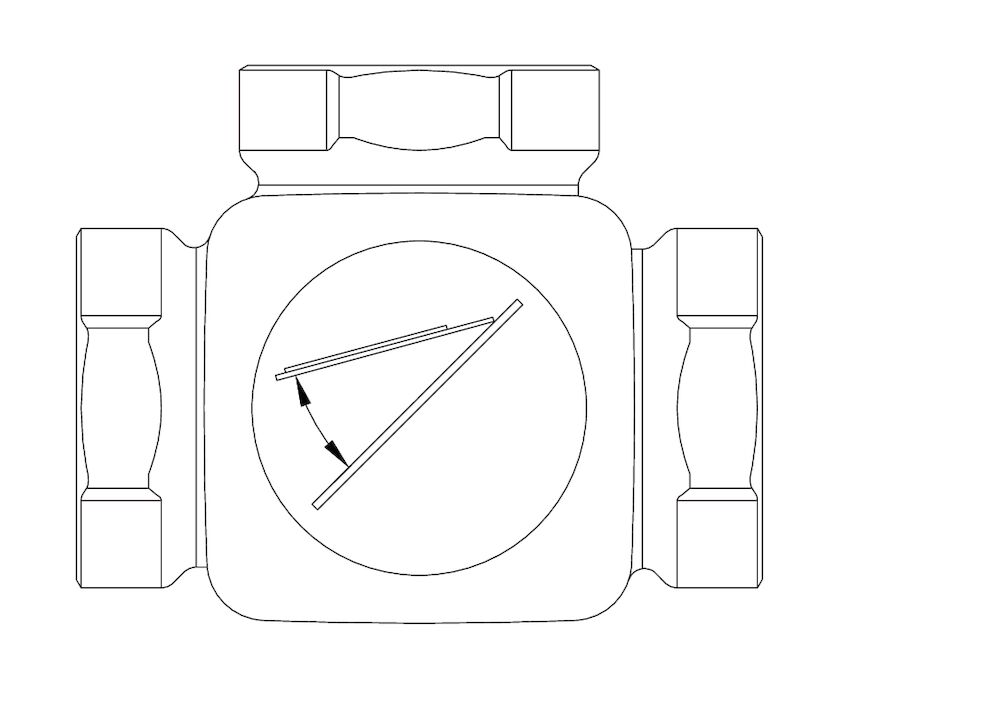

Dimensional sketch
Item list

181110

Dim. F 1¼"
Kvs m³/h 16,0
A mm 84
B mm 42
C mm 68
D mm 24
E mm 39
Weight (kg) 0.7
Dimensional sketch
Item list

Other dimensions on request.

Detailed Information

Description

LK 822 ThermoBac is a 3-way check valve with low opening pressure and high fluid capacity. The valve is especially suitable for heating systems with storage tanks. The check valve prevents self-circulation from storage tank to boiler after the fire has gone out. In case of power failure or pump breakdown LK 822 ThermoBac automatically opens for self-circulation.

LK 822 can be equipped with an insulation - see under ­Accessories. For more information please see the product sheet for insulations.

The valve should be mounted so that the flap in the check valve closes by its own weight.

Technical Data

Max. working pressure: 1.0 MPa (10 bar)
Max. differential pressure: 50 kPa (0,5 bar)
Working temperature: Min. 5 °C/Max. 110 °C
Ambient temperature: Min. 5 °C/Max. 60 °C
Thread standard: Rp - female thread, G - male thread
Media 1: Water - Glycol mixture max. 50%
Material, valve body: Brass EN 12165 CW617N
Material, external cover: Brass EN 12165 CW617N
Material, sealing: EPDM

Application

Technical Diagrams

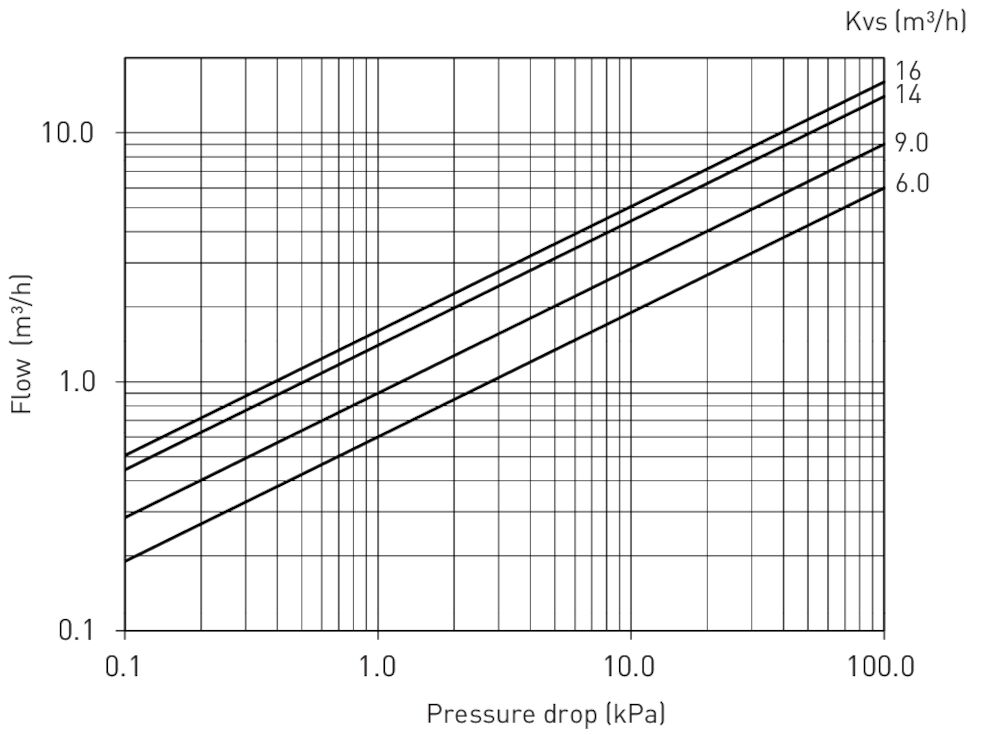

Capacity Diagram

Documentation

Product sheet

LK 822 ThermoBac

Instruction manual

822 ThermoBac - Instruction_148359

Instruction manual

Insulation 820, 821, 822, 840, 841 - Instruction_148693

Certificate/Type approval

CE Declaration of Conformity - 822, 826.pdf

Accessories & Spare parts

Article no. Article Position

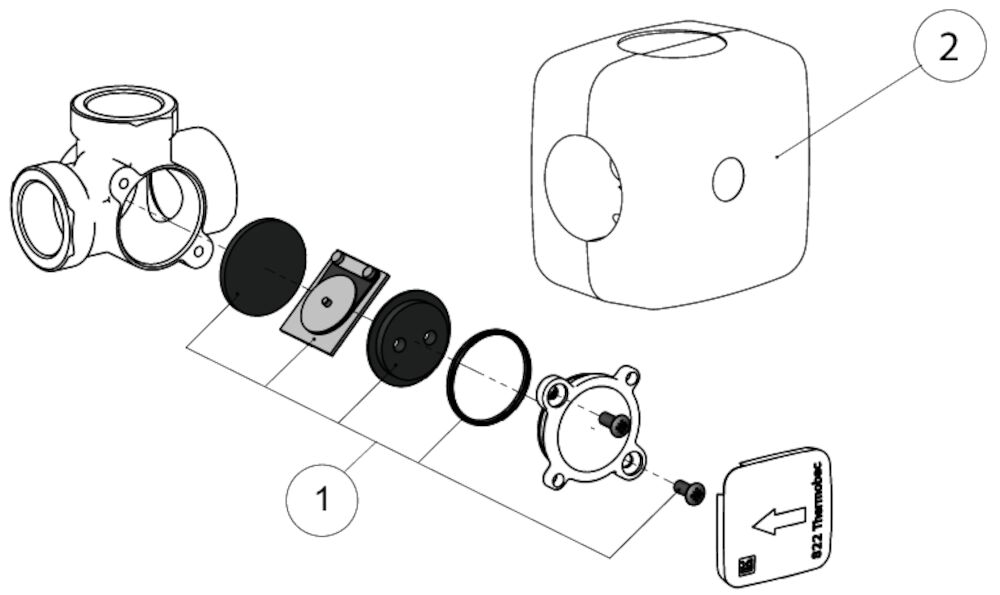

187072 Repair kit 822, DN 15-32 1
187107 Insulation, DN 15-20 2
187108 Insulation, DN 25-32 2
