LK 823 ThermoVar® R is a 3-way thermic loading valve for solid fuel/storage tank installations. The valve is intended to ensure both an optimal temperature stratification in the storage tank and a high return t...
Read more

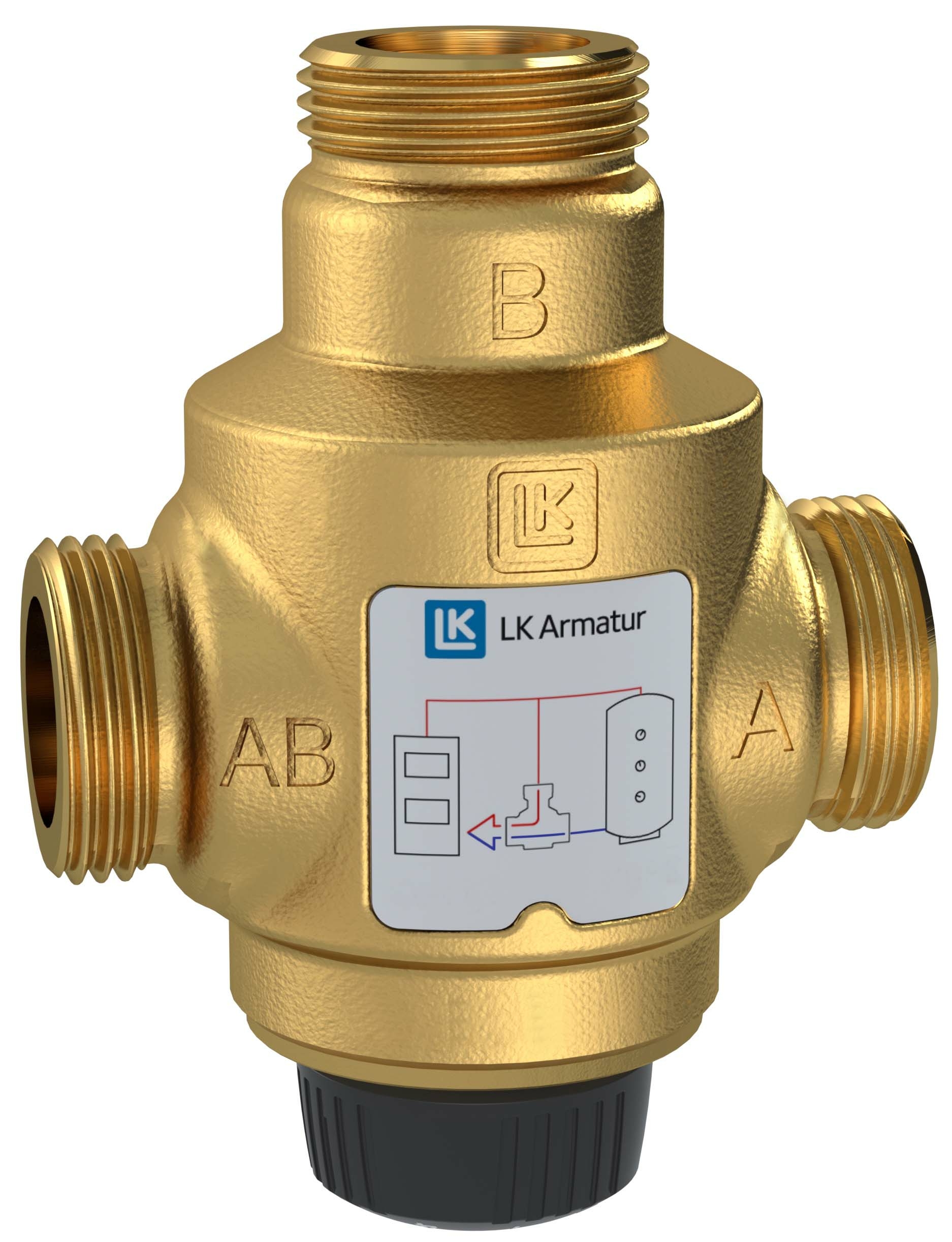

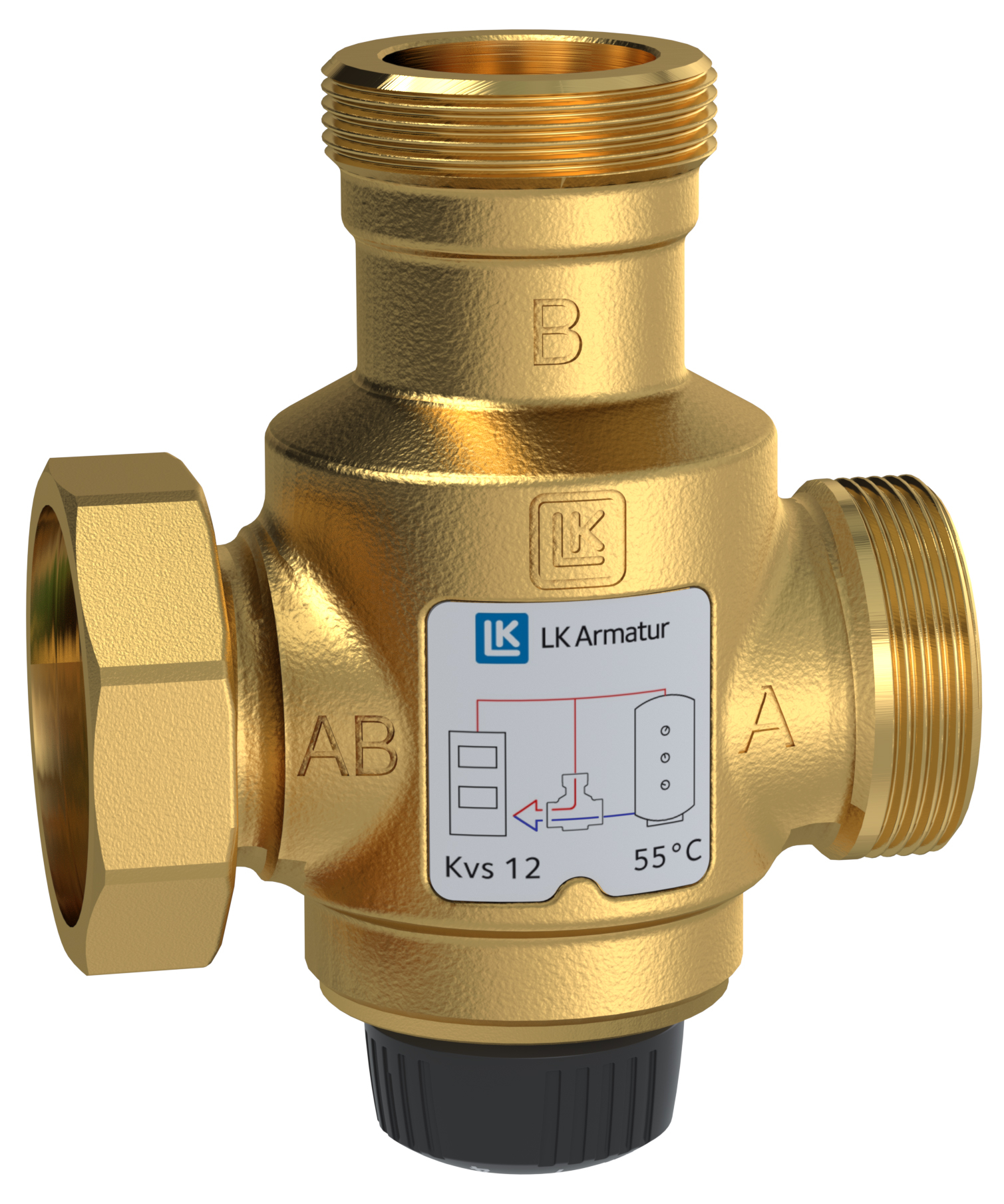

LK 823 ThermoVar® R
LK 823 R - Female thread 2 variants

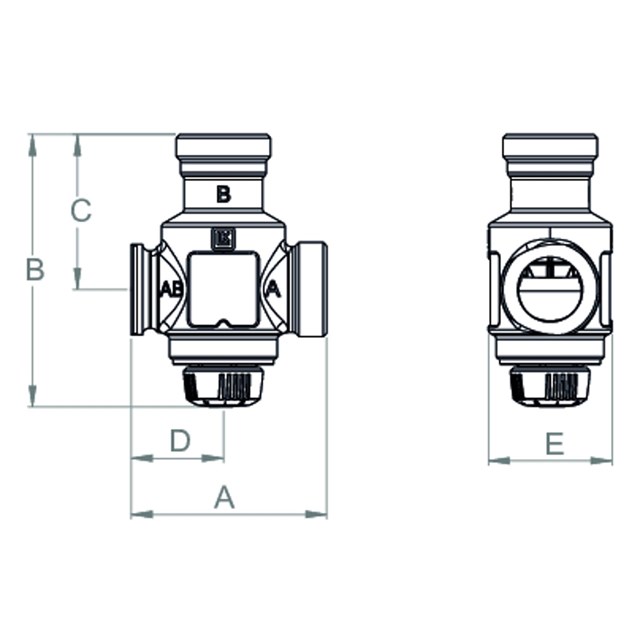

Article | Dim. | Kvs m³/h | A mm | B mm | C mm | D mm | Note | Weight (kg) | Dimensional sketch | Item List |
---|---|---|---|---|---|---|---|---|---|---|
182386 | F 1¼" | 9,0 | 105 | 128 | 76 | Ø 62 | 55-70 °C | 1.2 |
|
|
182445 | F 1¼" | 9,0 | 105 | 128 | 76 | Ø 62 | 45 - 60 °C | 1.2 |
|
182386
Dim. | F 1¼" |
Kvs m³/h | 9,0 |
A mm | 105 |
B mm | 128 |
C mm | 76 |
D mm | Ø 62 |
Note | 55-70 °C |
Weight (kg) | 1.2 |
Dimensional sketch | |
Item list |
|
182445
Dim. | F 1¼" |
Kvs m³/h | 9,0 |
A mm | 105 |
B mm | 128 |
C mm | 76 |
D mm | Ø 62 |
Note | 45 - 60 °C |
Weight (kg) | 1.2 |
Dimensional sketch | |
Item list |
|
Article 182386
A mm | 105 |
B mm | 128 |
C mm | 76 |
D mm | Ø 62 |
Article 182445
A mm | 105 |
B mm | 128 |
C mm | 76 |
D mm | Ø 62 |
LK 823 R - Male thread 2 variants
Article | Dim. | Kvs m³/h | A mm | B mm | C mm | D mm | Note | Weight (kg) | Dimensional sketch | Item List |
---|---|---|---|---|---|---|---|---|---|---|
182388 | M 1½" | 9,0 | 105 | 128 | 76 | Ø 62 | 55-70 °C | 1.2 |
|
|
182446 | M 1½" | 9,0 | 105 | 128 | 76 | Ø 62 | 45 - 60 °C | 1.2 |
|
182388
Dim. | M 1½" |
Kvs m³/h | 9,0 |
A mm | 105 |
B mm | 128 |
C mm | 76 |
D mm | Ø 62 |
Note | 55-70 °C |
Weight (kg) | 1.2 |
Dimensional sketch | |
Item list |
|
182446
Dim. | M 1½" |
Kvs m³/h | 9,0 |
A mm | 105 |
B mm | 128 |
C mm | 76 |
D mm | Ø 62 |
Note | 45 - 60 °C |
Weight (kg) | 1.2 |
Dimensional sketch | |
Item list |
|
Article 182388
A mm | 105 |
B mm | 128 |
C mm | 76 |
D mm | Ø 62 |
Article 182446
A mm | 105 |
B mm | 128 |
C mm | 76 |
D mm | Ø 62 |
LK 823 R - Rotating nut 2 variants
Article | Dim. | Dim. 2 | Kvs m³/h | A mm | B mm | C mm | D mm | E mm | Note | Weight (kg) | Dimensional sketch | Item List |
---|---|---|---|---|---|---|---|---|---|---|---|---|
182389 | M 1¼" | 1½" Rotating nut | 9,0 | 87 | 121 | 69 | 41 | 55 | 55-70 °C | 0.9 |
|
|
182447 | M 1¼” | 1½" Rotating nut | 9,0 | 87 | 121 | 69 | 41 | 55 | 45-60 °C | 0.9 |
|
182389
Dim. | M 1¼" |
Dim. 2 | 1½" Rotating nut |
Kvs m³/h | 9,0 |
A mm | 87 |
B mm | 121 |
C mm | 69 |
D mm | 41 |
E mm | 55 |
Note | 55-70 °C |
Weight (kg) | 0.9 |
Dimensional sketch | |
Item list |
|
182447
Dim. | M 1¼” |
Dim. 2 | 1½" Rotating nut |
Kvs m³/h | 9,0 |
A mm | 87 |
B mm | 121 |
C mm | 69 |
D mm | 41 |
E mm | 55 |
Note | 45-60 °C |
Weight (kg) | 0.9 |
Dimensional sketch | |
Item list |
|
Article 182389
A mm | 87 |
B mm | 121 |
C mm | 69 |
D mm | 41 |
E mm | 55 |
Article 182447
A mm | 87 |
B mm | 121 |
C mm | 69 |
D mm | 41 |
E mm | 55 |
Description
LK 823 ThermoVar® R is a 3-way thermic loading valve for solid fuel/storage tank installations. The valve is intended to ensure both an optimal temperature stratification in the storage tank and a high return temperature to the boiler, thus increasing the efficiency of the system. Tarring and condensation are prevented which prolongs boiler life.
The valve regulates on two ports, which means that there is no need for a balancing valve in the cirucit between boiler and loading valve. The thermostatic element starts to open port A when the outgoing mixed water temperature in port AB reaches the opening temperature. Port B is closed when the temperature in port A exceeds the nominal opening temperature by 10 °C.
The valve is adjustable within the range of 55 °C to 70 °C.
LK 823 R can be equipped with an insulation - see under Accessories. For more information, please see the product sheet for insulations.
The valve can be mounted at any angle. LK 823 ThermoVar® R is for right- or left-hand mounting.
Technical Data
Opening temperature: | 55 - 70 °C |
Working temperature: | Min 5 ºC/Max 95 ºC |
Ambient temperature: | Min 5 ºC/Max 60 ºC |
Max. working pressure: | 1.0 MPa (10 bar) |
Max. differential pressure: | 100 kPa (1 bar) |
Leakage: | < 0.5% of Kvs at 100 kPa |
Media 1: | Water - Glycol mixture max. 50% |
Thread standard: | Rp - female thread, G - male thread |
Material, valve body: | Brass EN 1982 CB753S |
Material, external cover: | Brass EN 12165 CW617N |
Material, sealing: | EPDM |
Application
Technical Diagrams

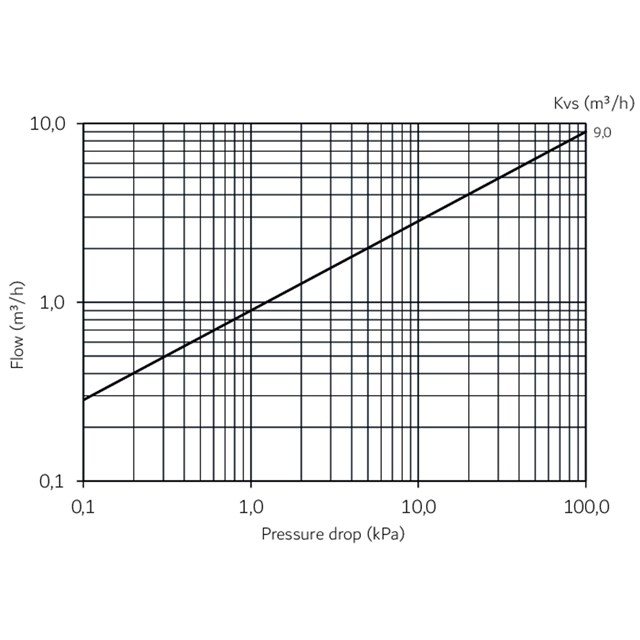

Capacity Diagram
Technical Data
Opening temperature: | 55 - 70 °C |
Working temperature: | Min 5 ºC/Max 95 ºC |
Ambient temperature: | Min 5 ºC/Max 60 ºC |
Max. working pressure: | 1.0 MPa (10 bar) |
Max. differential pressure: | 100 kPa (1 bar) |
Leakage: | < 0.5% of Kvs at 100 kPa |
Media 1: | Water - Glycol mixture max. 50% |
Thread standard: | Rp - female thread, G - male thread |
Material, valve body: | Brass EN 1982 CB753S |
Material, external cover: | Brass EN 12165 CW617N |
Material, sealing: | EPDM |
LK 823 ThermoVar® R is a 3-way thermic loading valve for solid fuel/storage tank installations. The valve is intended to ensure both an optimal temperature stratification in the storage tank and a high return temperature to the boiler, thus increasing the efficiency of the system. Tarring and condensation are prevented which prolongs boiler life.
The valve regulates on two ports, which means that there is no need for a balancing valve in the cirucit between boiler and loading valve. The thermostatic element starts to open port A when the outgoing mixed water temperature in port AB reaches the opening temperature. Port B is closed when the temperature in port A exceeds the nominal opening temperature by 10 °C.
The valve is adjustable within the range of 55 °C to 70 °C.
LK 823 R can be equipped with an insulation - see under Accessories. For more information, please see the product sheet for insulations.

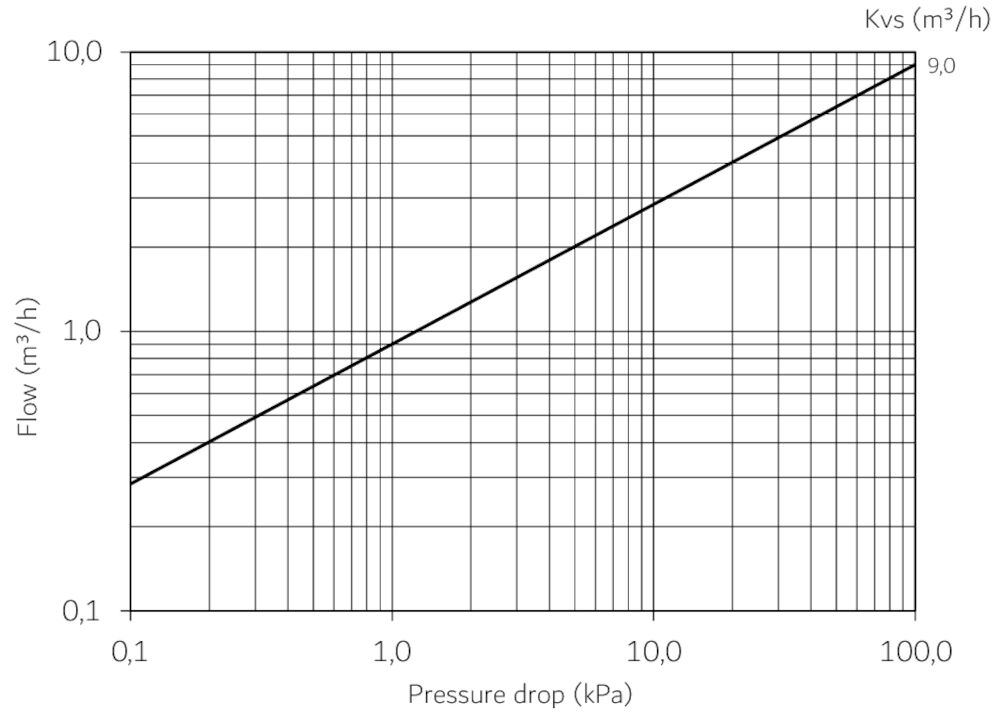

Capacity Diagram
LK 823 R - Female thread
Article | Dim. | Kvs m³/h | A mm | B mm | C mm | D mm | Note | Weight (kg) |
---|---|---|---|---|---|---|---|---|
182386 | F 1¼" | 9,0 | 105 | 128 | 76 | Ø 62 | 55-70 °C | 1.2 |
182445 | F 1¼" | 9,0 | 105 | 128 | 76 | Ø 62 | 45 - 60 °C | 1.2 |
LK 823 R - Male thread
Article | Dim. | Kvs m³/h | A mm | B mm | C mm | D mm | Note | Weight (kg) |
---|---|---|---|---|---|---|---|---|
182388 | M 1½" | 9,0 | 105 | 128 | 76 | Ø 62 | 55-70 °C | 1.2 |
182446 | M 1½" | 9,0 | 105 | 128 | 76 | Ø 62 | 45 - 60 °C | 1.2 |
LK 823 R - Rotating nut
Article | Dim. | Dim. 2 | Kvs m³/h | A mm | B mm | C mm | D mm | E mm | Note | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|---|
182389 | M 1¼" | 1½" Rotating nut | 9,0 | 87 | 121 | 69 | 41 | 55 | 55-70 °C | 0.9 |
182447 | M 1¼” | 1½" Rotating nut | 9,0 | 87 | 121 | 69 | 41 | 55 | 45-60 °C | 0.9 |

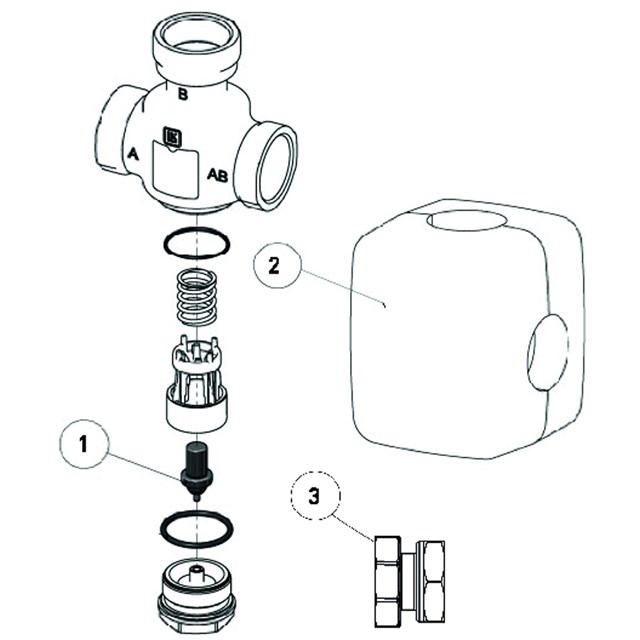

Accessories & Spare parts
Article no. | Article | Position |
---|---|---|
187330 | Repair Kit 823R | 1 |
187310 | LK Insulation, 551 (Kvs 3.2-4.2) / 552 | 2 |
095352 | LK 823 Pump connection 1" | 3 |
095351 | LK 823 Pump connection 1¼" | 3 |
