5041 Språng

5041 Språng

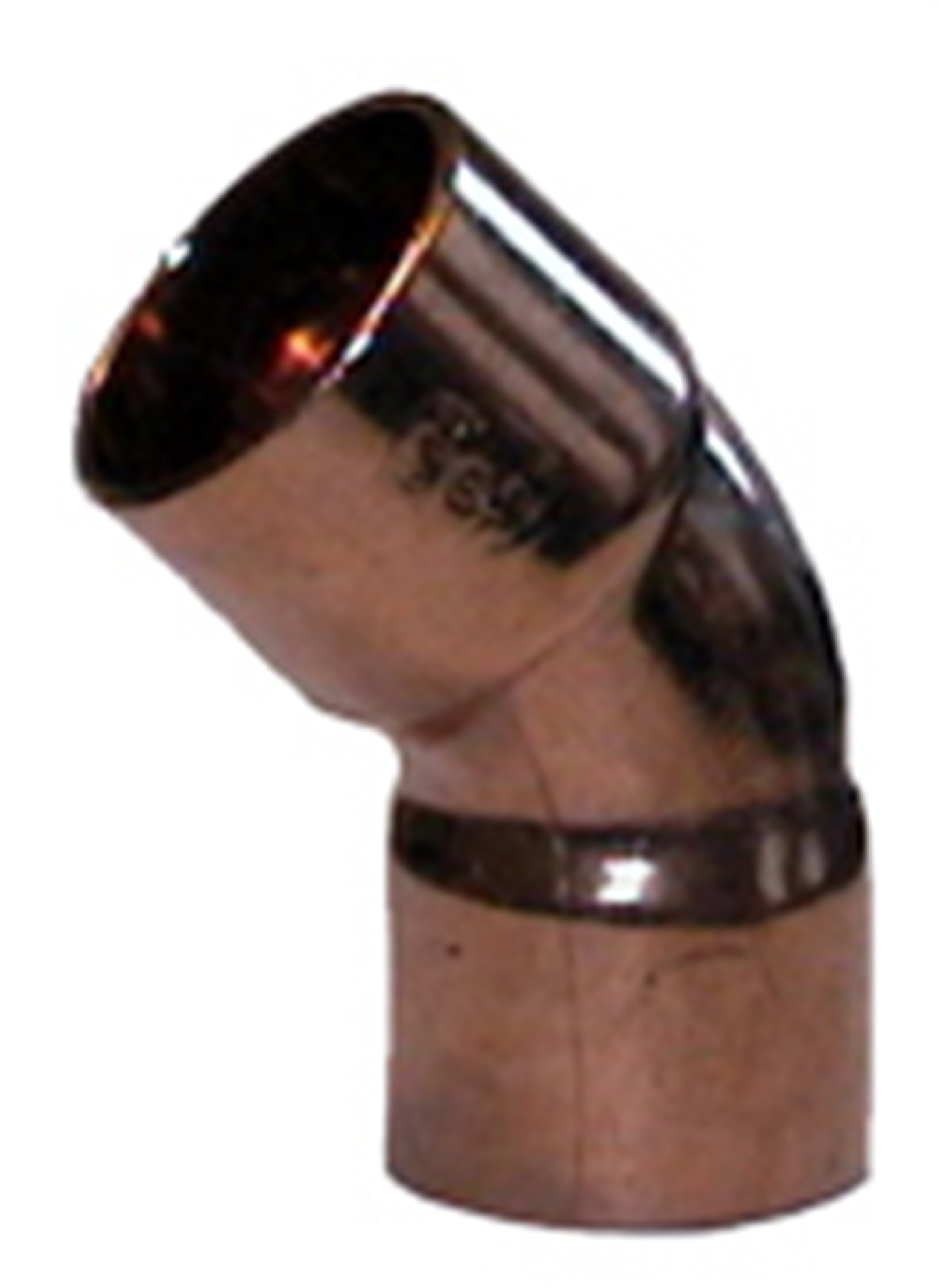

Bend 45° suitable for heating, tapwater and cooling systems, steam, condensate, air, oil and gas.

5041 Språng

  • Variants
  • Detailed Information
  • Documentation

Variants

14 variants

Article Dim. A mm Z mm Weight (kg) Dimensional sketch Item List
200 06 10 8 11 4 0.01
200 06 28 10 12 4 0.01
200 06 36 12 14 5 0.01
200 06 44 15 17 6 0.01
200 06 69 18 20 7 0.02
200 06 77 22 25 9 0.03
200 06 85 28 29 10 0.05
200 06 93 35 36 13 0.1
200 07 19 42 42 15 0.1
200 07 27 54 54 22 0.3
200 07 34 70 70 34
200 07 35 76 90 32
200 07 43 89 75 37
200 07 50 108 108 60

200 06 10

Dim. 8
A mm 11
Z mm 4
Weight (kg) 0.01
Dimensional sketch
Item list

200 06 28

Dim. 10
A mm 12
Z mm 4
Weight (kg) 0.01
Dimensional sketch
Item list

200 06 36

Dim. 12
A mm 14
Z mm 5
Weight (kg) 0.01
Dimensional sketch
Item list

200 06 44

Dim. 15
A mm 17
Z mm 6
Weight (kg) 0.01
Dimensional sketch
Item list

200 06 69

Dim. 18
A mm 20
Z mm 7
Weight (kg) 0.02
Dimensional sketch
Item list

200 06 77

Dim. 22
A mm 25
Z mm 9
Weight (kg) 0.03
Dimensional sketch
Item list

200 06 85

Dim. 28
A mm 29
Z mm 10
Weight (kg) 0.05
Dimensional sketch
Item list

200 06 93

Dim. 35
A mm 36
Z mm 13
Weight (kg) 0.1
Dimensional sketch
Item list

200 07 19

Dim. 42
A mm 42
Z mm 15
Weight (kg) 0.1
Dimensional sketch
Item list

200 07 27

Dim. 54
A mm 54
Z mm 22
Weight (kg) 0.3
Dimensional sketch
Item list

200 07 34

Dim. 70
A mm 70
Z mm 34
Weight (kg)
Dimensional sketch
Item list

200 07 35

Dim. 76
A mm 90
Z mm 32
Weight (kg)
Dimensional sketch
Item list

200 07 43

Dim. 89
A mm 75
Z mm 37
Weight (kg)
Dimensional sketch
Item list

200 07 50

Dim. 108
A mm 108
Z mm 60
Weight (kg)
Dimensional sketch
Item list

Detailed Information

Description

Bend 45° suitable for heating, tapwater and cooling systems, steam, condensate, air, oil and gas.

Technical Data

Max. working pressure: See table below
Other data: Copper Cu corresponding to DIN 1787, ISO 1337

Application

Max. working pressure

For each dimension in brazing, depending on media and temperature.

Documentation

Product sheet

5041 Språng
