Return Bend 5060

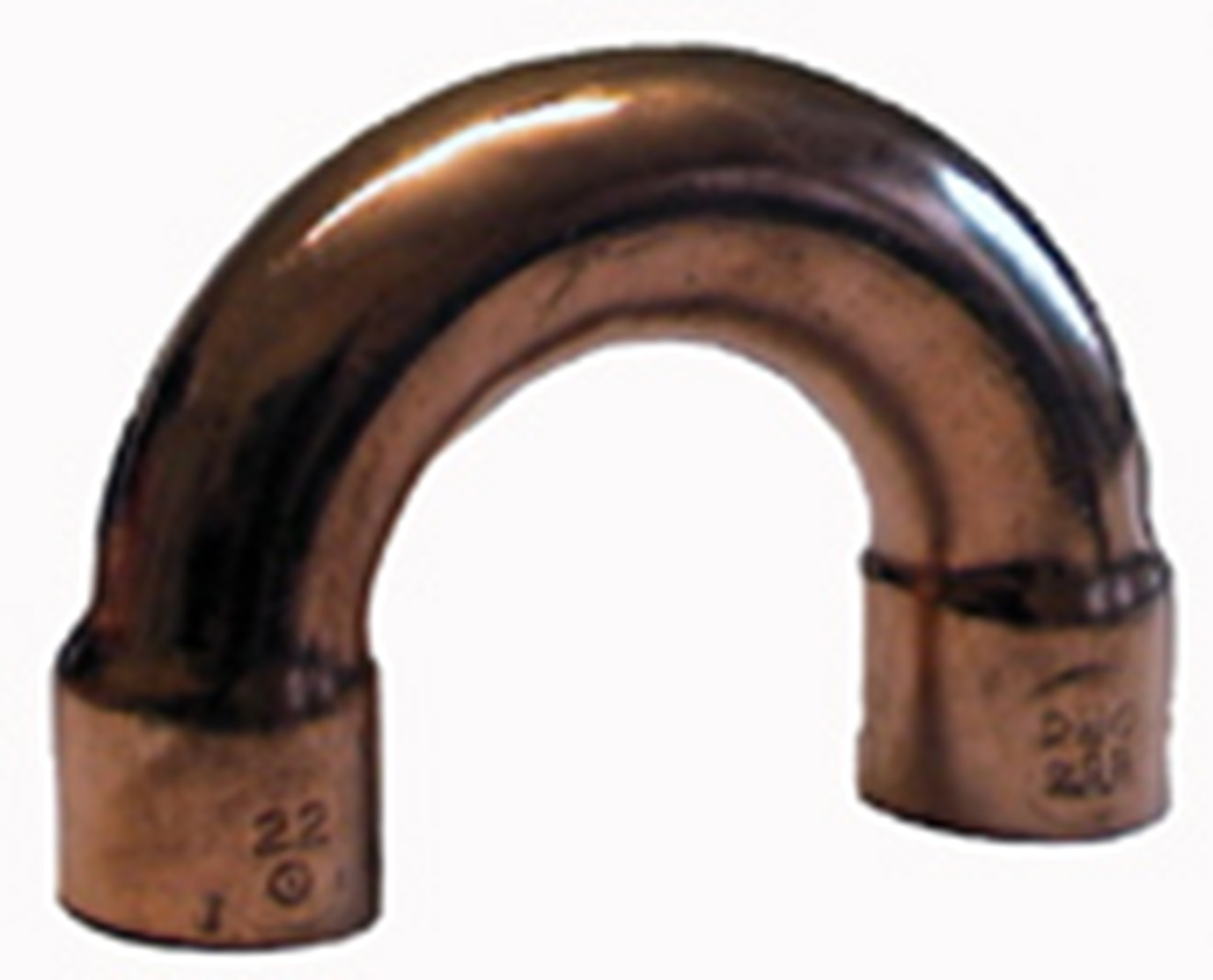

Return Bend 5060 – Female 8 variants

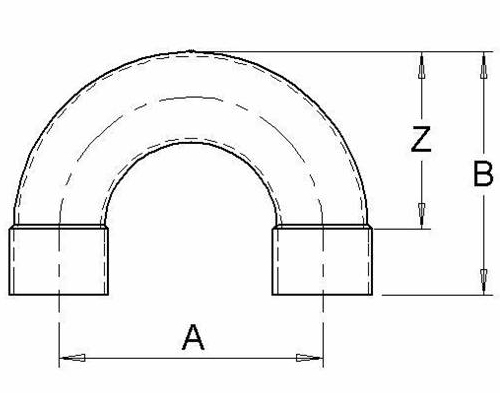

Manufacturing and quality control in accordance with DIN 2856 chapters 10 and 11. The dimensions used in the sketch are for illustration only and not part of the specification.
Article | Dim. | A mm | B mm | Z mm | Weight (kg) | Dimensional sketch | Item List |
---|---|---|---|---|---|---|---|
200 25 25 | 10 | 30 | 28 | 20 | 0.01 |
|
|
200 25 33 | 12 | 33 | 31 | 22 | 0.02 |
|
|
200 25 41 | 15 | 45 | 41 | 30 | 0.03 |
|
|
200 25 66 | 18 | 52 | 48 | 35 | 0.05 |
|
|
200 25 74 | 22 | 64 | 59 | 43 | 0.09 |
|
|
200 25 82 | 28 | 82 | 73 | 54 | 0.2 |
|
|
200 25 90 | 35 | 104 | 92 | 69 | 0.2 |
|
|
200 26 24 | 54 | 216 | 167 | 135 |
|
200 25 25
Dim. | 10 |
A mm | 30 |
B mm | 28 |
Z mm | 20 |
Weight (kg) | 0.01 |
Dimensional sketch | |
Item list |
|
200 25 33
Dim. | 12 |
A mm | 33 |
B mm | 31 |
Z mm | 22 |
Weight (kg) | 0.02 |
Dimensional sketch | |
Item list |
|
200 25 41
Dim. | 15 |
A mm | 45 |
B mm | 41 |
Z mm | 30 |
Weight (kg) | 0.03 |
Dimensional sketch | |
Item list |
|
200 25 66
Dim. | 18 |
A mm | 52 |
B mm | 48 |
Z mm | 35 |
Weight (kg) | 0.05 |
Dimensional sketch | |
Item list |
|
200 25 74
Dim. | 22 |
A mm | 64 |
B mm | 59 |
Z mm | 43 |
Weight (kg) | 0.09 |
Dimensional sketch | |
Item list |
|
200 25 82
Dim. | 28 |
A mm | 82 |
B mm | 73 |
Z mm | 54 |
Weight (kg) | 0.2 |
Dimensional sketch | |
Item list |
|
200 25 90
Dim. | 35 |
A mm | 104 |
B mm | 92 |
Z mm | 69 |
Weight (kg) | 0.2 |
Dimensional sketch | |
Item list |
|
200 26 24
Dim. | 54 |
A mm | 216 |
B mm | 167 |
Z mm | 135 |
Weight (kg) | |
Dimensional sketch | |
Item list |
|
Article 200 25 25
A mm | 30 |
B mm | 28 |
Z mm | 20 |
Article 200 25 33
A mm | 33 |
B mm | 31 |
Z mm | 22 |
Article 200 25 41
A mm | 45 |
B mm | 41 |
Z mm | 30 |
Article 200 25 66
A mm | 52 |
B mm | 48 |
Z mm | 35 |
Article 200 25 74
A mm | 64 |
B mm | 59 |
Z mm | 43 |
Article 200 25 82
A mm | 82 |
B mm | 73 |
Z mm | 54 |
Article 200 25 90
A mm | 104 |
B mm | 92 |
Z mm | 69 |
Article 200 26 24
A mm | 216 |
B mm | 167 |
Z mm | 135 |
Description
Return bend 180°, for heating and cooling systems, domestic water, steam, condensate, air, oil and gas.
Technical Data
Max. working pressure: | See table below |
Other data: | Koppar Cu motsvarande DIN 1787, ISO 1337 |
Application
Max. working pressure
For each dimension in brazing, depending on media and temperature.
Technical Data
Max. working pressure: | See table below |
Other data: | Koppar Cu motsvarande DIN 1787, ISO 1337 |
Return bend 180°, for heating and cooling systems, domestic water, steam, condensate, air, oil and gas.
Max. working pressure
For each dimension in brazing, depending on media and temperature.
Return Bend 5060 – Female
Manufacturing and quality control in accordance with DIN 2856 chapters 10 and 11. The dimensions used in the sketch are for illustration only and not part of the specification.
Article | Dim. | A mm | B mm | Z mm | Weight (kg) |
---|---|---|---|---|---|
200 25 25 | 10 | 30 | 28 | 20 | 0.01 |
200 25 33 | 12 | 33 | 31 | 22 | 0.02 |
200 25 41 | 15 | 45 | 41 | 30 | 0.03 |
200 25 66 | 18 | 52 | 48 | 35 | 0.05 |
200 25 74 | 22 | 64 | 59 | 43 | 0.09 |
200 25 82 | 28 | 82 | 73 | 54 | 0.2 |
200 25 90 | 35 | 104 | 92 | 69 | 0.2 |
200 26 24 | 54 | 216 | 167 | 135 |
