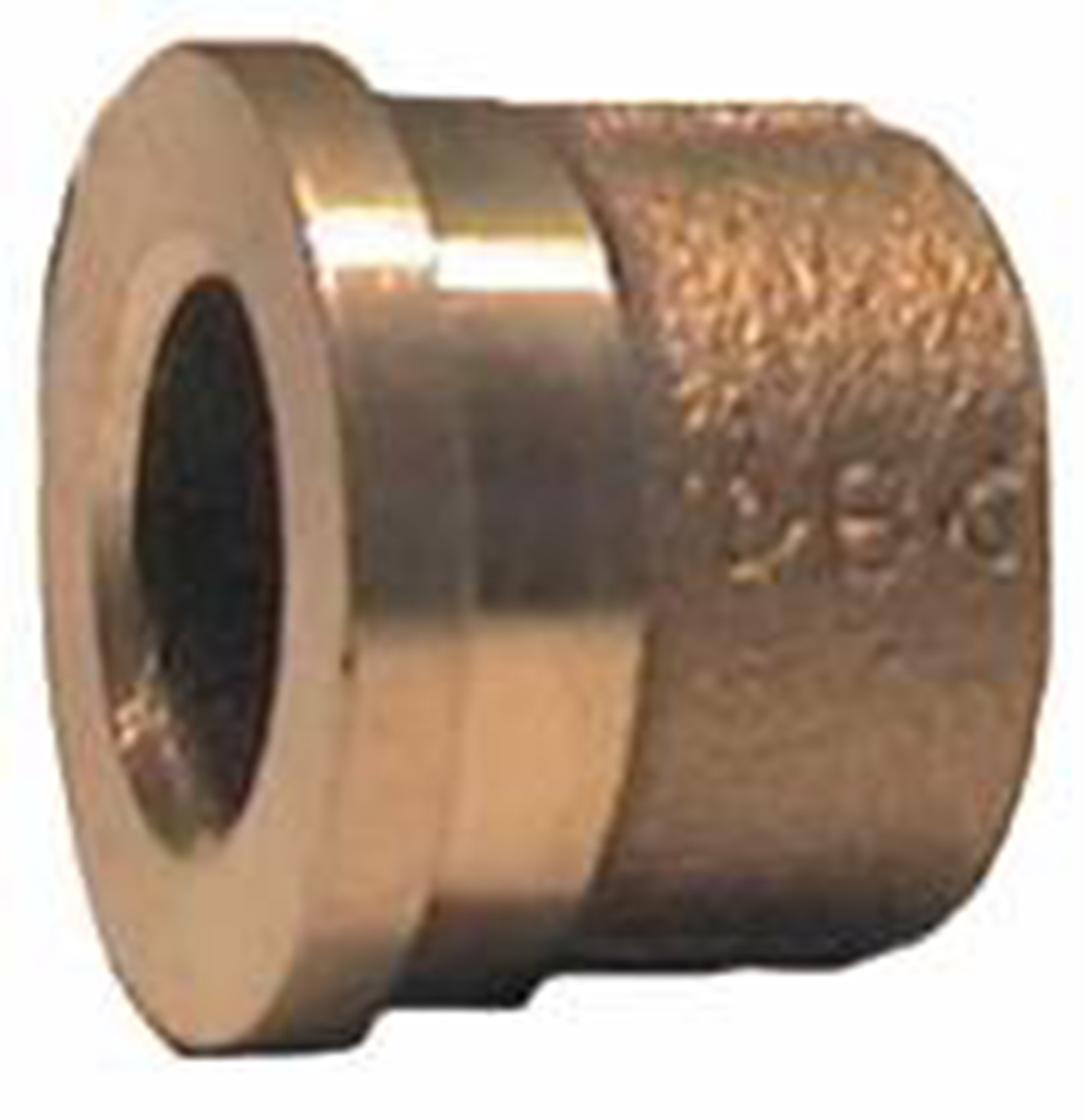

Union Part 4372

Union Part 4372

Union part for union nut, flat joint. For heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Union Part 4372

  • Variants
  • Detailed Information
  • Documentation

Variants

4372 – Female

4372 – Female 8 variants

Manufacturing and quality control in accordance with DIN 2856 chapters 10 and 11. The dimensions used in the sketch are for illustration only and not part of the specification.

Article Dim. Dim. 2 A mm Note Weight (kg) Dimensional sketch Item List
051015 15 mm Rotating nut: M ¾" 19 Art. no. Nut: 056093
Art. no. Sealing: 013032 		0.02
051008 18 mm Rotating nut: M ¾" 17 Art. no. Nut: 056093
Art. no. Sealing: 013032 		0.03
051101 18 mm Rotating nut: M 1" 19 Art. no. Nut: 056087
Art. no. Sealing: 013062 		0.04
051046 22 mm Rotating nut: M 1" 19 Art. no. Nut: 056082
Art. no. Sealing: 013035 		0.06
051047 28 mm Rotating nut: M 1¼" 25 Art. no. Nut: 051045
Art. no. Sealing: 013010 		0.08
051066 35 mm Rotating nut: M 1½" 27 Art. no. Nut: 056023
Art. no. Sealing: 013038 		0.07
051067 42 mm Rotating nut: M 2" 31 Art. no. Nut: 051064
Art. no. Sealing: 013017 		0.2
051068 54 mm Rotating nut: M 2½" 37 Art. no. Nut: 051065
Art. no. Sealing: 013038 		0.2

051015

Dim. 15 mm
Dim. 2 Rotating nut: M ¾"
A mm 19
Note Art. no. Nut: 056093
Art. no. Sealing: 013032
Weight (kg) 0.02
Dimensional sketch
Item list

051008

Dim. 18 mm
Dim. 2 Rotating nut: M ¾"
A mm 17
Note Art. no. Nut: 056093
Art. no. Sealing: 013032
Weight (kg) 0.03
Dimensional sketch
Item list

051101

Dim. 18 mm
Dim. 2 Rotating nut: M 1"
A mm 19
Note Art. no. Nut: 056087
Art. no. Sealing: 013062
Weight (kg) 0.04
Dimensional sketch
Item list

051046

Dim. 22 mm
Dim. 2 Rotating nut: M 1"
A mm 19
Note Art. no. Nut: 056082
Art. no. Sealing: 013035
Weight (kg) 0.06
Dimensional sketch
Item list

051047

Dim. 28 mm
Dim. 2 Rotating nut: M 1¼"
A mm 25
Note Art. no. Nut: 051045
Art. no. Sealing: 013010
Weight (kg) 0.08
Dimensional sketch
Item list

051066

Dim. 35 mm
Dim. 2 Rotating nut: M 1½"
A mm 27
Note Art. no. Nut: 056023
Art. no. Sealing: 013038
Weight (kg) 0.07
Dimensional sketch
Item list

051067

Dim. 42 mm
Dim. 2 Rotating nut: M 2"
A mm 31
Note Art. no. Nut: 051064
Art. no. Sealing: 013017
Weight (kg) 0.2
Dimensional sketch
Item list

051068

Dim. 54 mm
Dim. 2 Rotating nut: M 2½"
A mm 37
Note Art. no. Nut: 051065
Art. no. Sealing: 013038
Weight (kg) 0.2
Dimensional sketch
Item list

Detailed Information

Description

Union part for union nut, flat joint. For heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Technical Data

Max. working pressure: See table below
Other data: Red Brass, according to DIN 1705, ISO 1338
Suitable rotating nuts 4374 - 4374R

Application

Documentation

Product sheet

Union Part 4372
