Inbyggnadsbackventil FK

FK Built-in Check Valve

Non-return valve FC is designed for installation in coupling of type screw joint with flat gasket, in tapwater, heating and cooling systems. The collar of the non-return valve acts as a seal and replaces the fl...

Read more

FK Built-in Check Valve

  • Variants
  • Detailed Information
  • Documentation

Variants

FK

FK 1 artikel

Installation dimensions and other technical data are provided on request.

Article DN Item List
055062 DN 15

055062

DN DN 15
Item list

Detailed Information

Description

Non-return valve FC is designed for installation in coupling of type screw joint with flat gasket, in tapwater, heating and cooling systems. The collar of the non-return valve acts as a seal and replaces the flat gasket in the coupling.

Technical Data

Max. working pressure: 1.0 MPa (10 bar)
Working temperature: Max. 90°C
Material, sealing: NBR
Material, check valve: Check valve body, spring and cone: POM

Technical Diagrams

Inbyggnadsbackventil FK

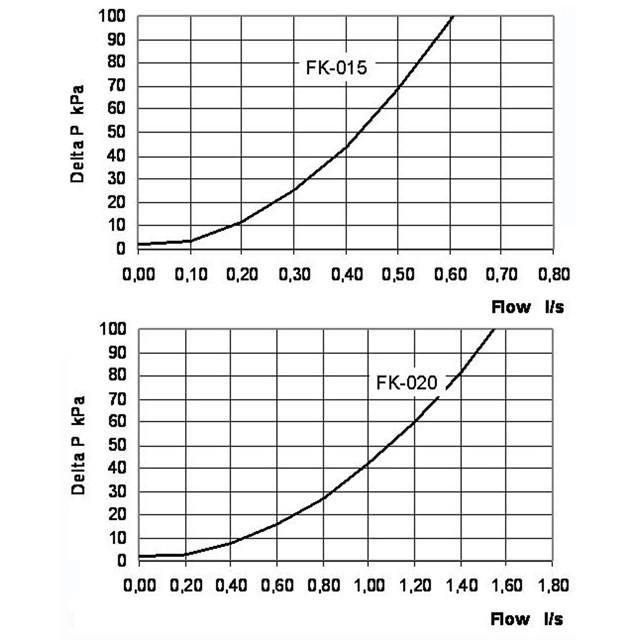

Pressure drop diagram

Documentation

Product sheet

FK Built-in Check Valve
