Inbyggnadsbackventil FO

FO Built-in Check Valve

Non-return valve FO is designed for installation in coupling of type screw joint with flat gasket, in tapwater, heating and cooling systems. The collar of the non-return valve acts as a seal and replaces the ga...

Read more

FO Built-in Check Valve

  • Variants
  • Detailed Information
  • Documentation

Variants

FO

FO 2 variants

Installation dimensions and other technical data are provided on request.

Article DN Item List
055417 DN 15
055418 DN 20

055417

DN DN 15
Item list

055418

DN DN 20
Item list

Detailed Information

Description

Non-return valve FO is designed for installation in coupling of type screw joint with flat gasket, in tapwater, heating and cooling systems. The collar of the non-return valve acts as a seal and replaces the gasket in the coupling.

Technical Data

Max. working pressure: 1.0 MPa (10 bar)
Working temperature: Max. 90°C
Material, sealing: NBR/SBR
Material, check valve: Check valve body and cone: POM
Spring: Stainless steel

Application

Inbyggnadsbackventil FO

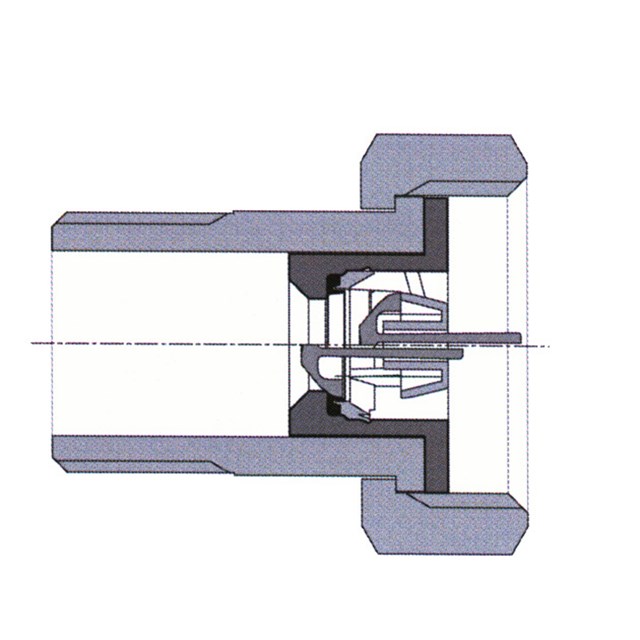

Mounting example

Technical Diagrams

Inbyggnadsbackventil FO

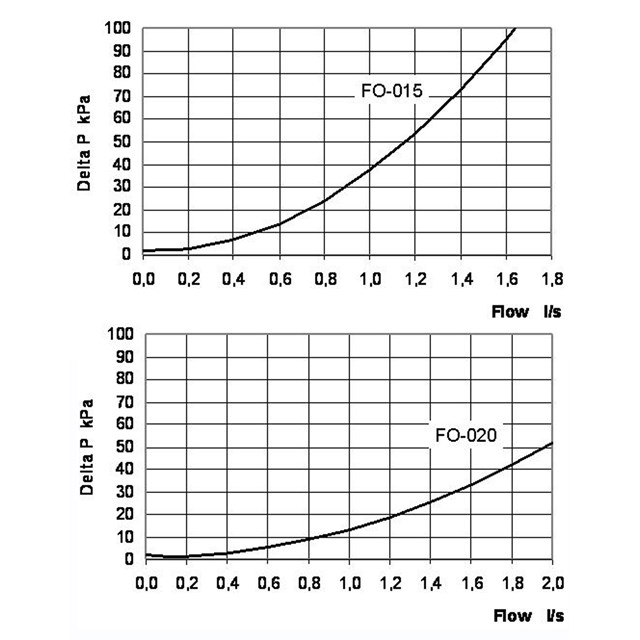

Pressure drop diagram

Documentation

Product sheet

FO Built-in Check Valve
