Inbyggnadsbackventil IO

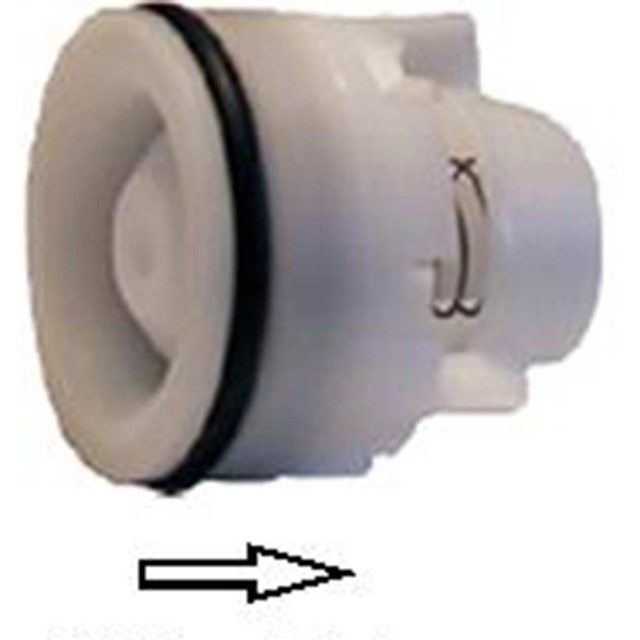

IO Built-in Check Valve

Non-return valve for tapwater, heating and cooling systems.

IO Built-in Check Valve

  • Variants
  • Detailed Information
  • Documentation

Variants

IO

IO 6 variants

Installation dimensions and other technical data are provided on request.

Article DN Weight (kg) Item List
055022 DN 15
055044 DN 20
055045 DN 25 0.01
055010 DN 32 0.01
055411 DN 40 0.03
055412 DN 50 0.05

055022

DN DN 15
Weight (kg)
Item list

055044

DN DN 20
Weight (kg)
Item list

055045

DN DN 25
Weight (kg) 0.01
Item list

055010

DN DN 32
Weight (kg) 0.01
Item list

055411

DN DN 40
Weight (kg) 0.03
Item list

055412

DN DN 50
Weight (kg) 0.05
Item list

Detailed Information

Description

Non-return valve for tapwater, heating and cooling systems.

Technical Data

Max. working pressure: 1.0 MPa (10 bar)
Working temperature: Max. 90°C
Material, sealing: EPDM
Material, check valve: Check valve body and cone: POM
Spring: stainless steel

Application

Inbyggnadsbackventil IO

Technical Diagrams

Inbyggnadsbackventil IO

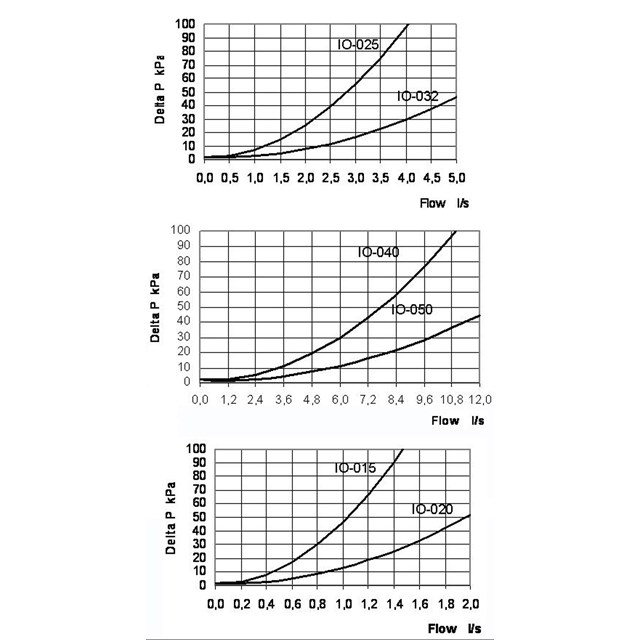

Pressure drop diagram

Documentation

Product sheet

IO Built-in Check Valve
