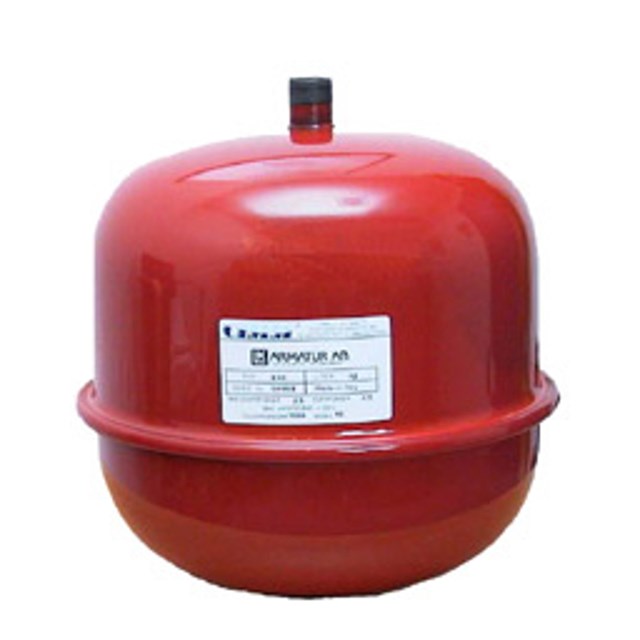

ERE Expansion Vessel

ERE Expansion Vessel

Expansion vessel for heating, recovery and cooling systems.

ERE Expansion Vessel

  • Variants
  • Detailed Information
  • Documentation
  • Questions & Answers

Variants

ERE

ERE 6 variants

Manufacturing standards: Expansion vessels manufactured in accordance with the European Directive PED 97/23 and the Swedish Pressure Vessels Directive AFS 1999: 4.

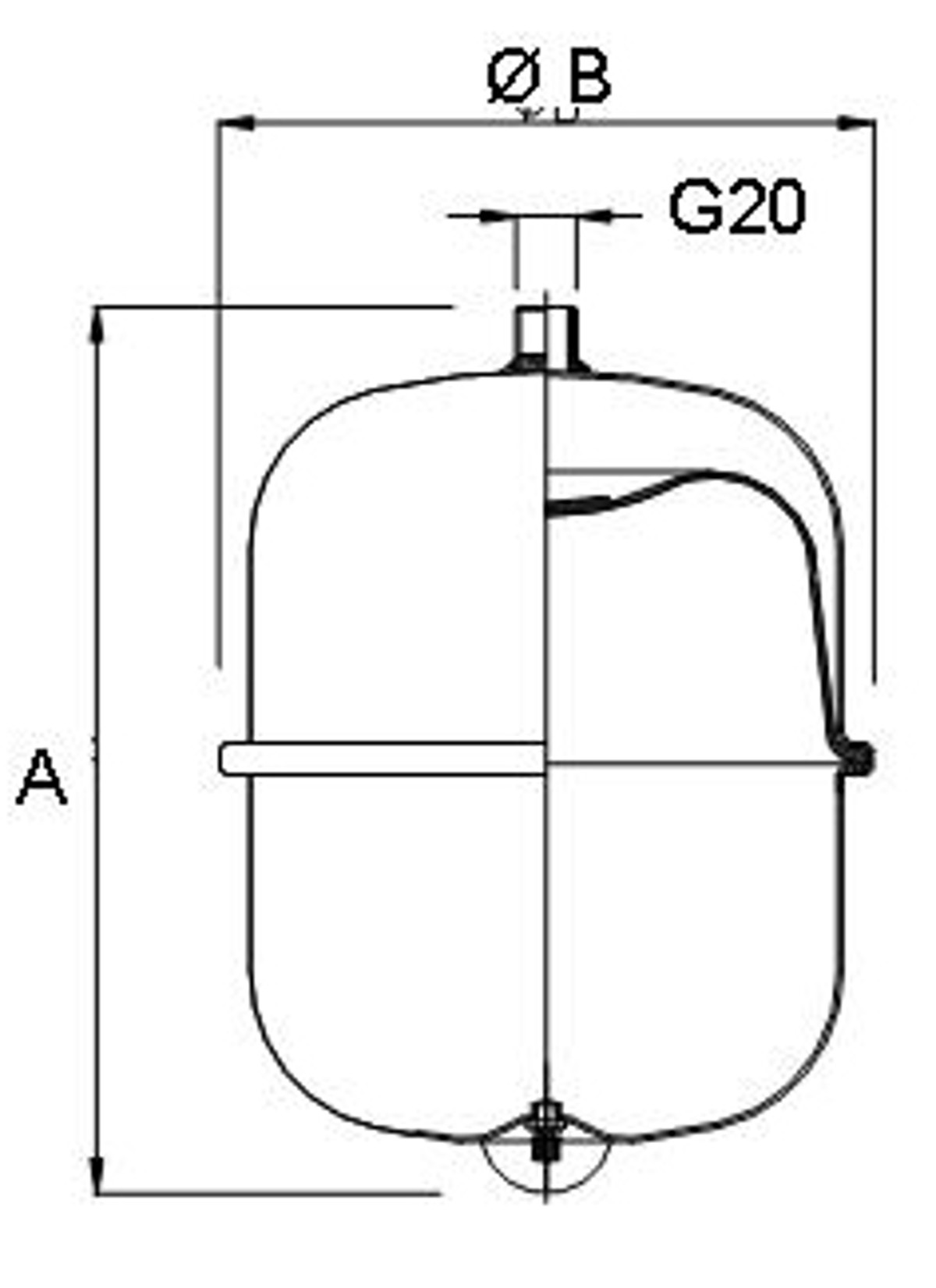

Article Dim. A mm B mm Weight (kg) Dimensional sketch Item List
552 33 08 6 liter 245 245 2.4
552 33 09 8 liter 275 245 2.7
552 33 10 10 liter 325 245
552 33 11 12 liter 320 285 3.7
552 33 12 18 liter 385 285 4.2
552 33 14 24 liter 420 325 7.9

552 33 08

Dim. 6 liter
A mm 245
B mm 245
Weight (kg) 2.4
Dimensional sketch
Item list

552 33 09

Dim. 8 liter
A mm 275
B mm 245
Weight (kg) 2.7
Dimensional sketch
Item list

552 33 10

Dim. 10 liter
A mm 325
B mm 245
Weight (kg)
Dimensional sketch
Item list

552 33 11

Dim. 12 liter
A mm 320
B mm 285
Weight (kg) 3.7
Dimensional sketch
Item list

552 33 12

Dim. 18 liter
A mm 385
B mm 285
Weight (kg) 4.2
Dimensional sketch
Item list

552 33 14

Dim. 24 liter
A mm 420
B mm 325
Weight (kg) 7.9
Dimensional sketch
Item list

Detailed Information

Description

Expansion vessel for heating, recovery and cooling systems.

Expansion vessels must be installed according to instructions in VVA 93. The expansion vessel is inspected visually prior to installation. When installing with a system, the pre-pressure must be adjusted so that it matches the static pressure prevailing at the tank’s connection point. The adjustment takes place without the influence of system pressure (depressurised on the system side).

The expansion vessel does not require maintenance. Air valve must be provided with protective covering.

Technical Data

Working temperature: Min. -10 °C / Max. 70 °C
Maximum instantaneous temperature: 110 °C
Max. working pressure: 3.0 bar
Media 1: Water - Glycol mixture max. 50%
Other data: Material, vessel Closed expansion vessel in steel.
Material, internal membrane SBR rubber
Pre-charge of the vessels 0.5 bar. Other pre-charge on request.

Documentation

Product sheet

ERE Expansion Vessel

Questions & Answers

Which expansion vessel should I buy?

If your expansion vessel connection is located on the long side, you should choose expansion vessel article number: 064010. If your expansion vessel connection is located on the short side, you should choose expansion vessel article number: 5523321
