Ändhuv 3301

Pipe Cap 3301

Pipe cap for heating and cooling systems, steam, condensate, air, oil and gas.

Pipe Cap 3301

  • Variants
  • Detailed Information
  • Documentation

Variants

3301 - Female Thread

3301 - Female Thread 6 variants

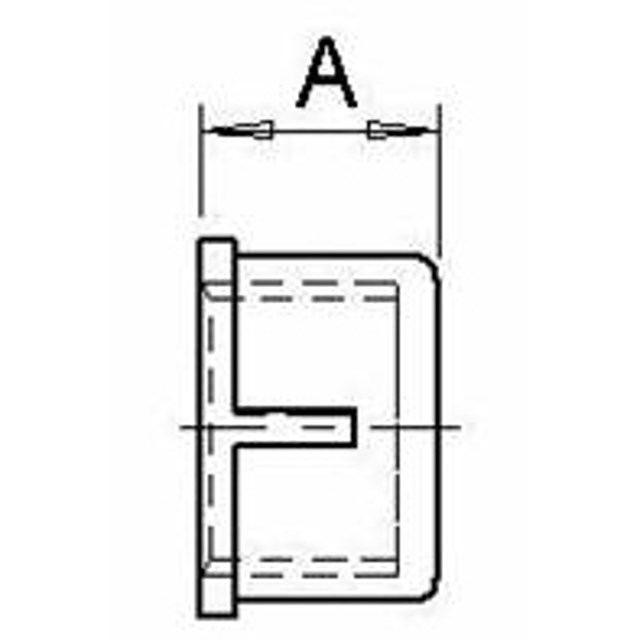

Thread standard according to DIN - ISO 228. Manufactured in accordance with DIN 2950. The dimensions used in the sketch are for illustration only and not part of the specification.

Article Dim. A mm Weight (kg) Dimensional sketch Item List
051225 ½" 17 0.02
051226 ¾" 20
051227 1" 23
051228 1¼" 23
051229 1½" 28
051230 2" 32

051225

Dim. ½"
A mm 17
Weight (kg) 0.02
Dimensional sketch
Item list

051226

Dim. ¾"
A mm 20
Weight (kg)
Dimensional sketch
Item list

051227

Dim. 1"
A mm 23
Weight (kg)
Dimensional sketch
Item list

051228

Dim. 1¼"
A mm 23
Weight (kg)
Dimensional sketch
Item list

051229

Dim. 1½"
A mm 28
Weight (kg)
Dimensional sketch
Item list

051230

Dim. 2"
A mm 32
Weight (kg)
Dimensional sketch
Item list

Detailed Information

Description

Pipe cap for heating and cooling systems, steam, condensate, air, oil and gas.

Technical Data

Max. working pressure: ¼”-¾”: Max 120°C – 2.5 MPa
Max 225°C – 1.6 MPa
1”-2”: Max 120°C – 1.6 MPa
Max 225°C – 1.0 MPa
2½”-4”: Max 120°C – 1.0 MPa
Max 225°C – 0.6 MPa
Thread standard: G - female thread
Material: Red Brass, according to DIN 1705, ISO 1338

Application

Ändhuv 3301

Documentation

Product sheet

Pipe Cap 3301
