Muff 3240

Sleeve Fitting 3240

Sleeve fitting for heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Sleeve Fitting 3240

  • Variants
  • Detailed Information
  • Documentation

Variants

3240 - Female Thread

3240 - Female Thread 6 variants

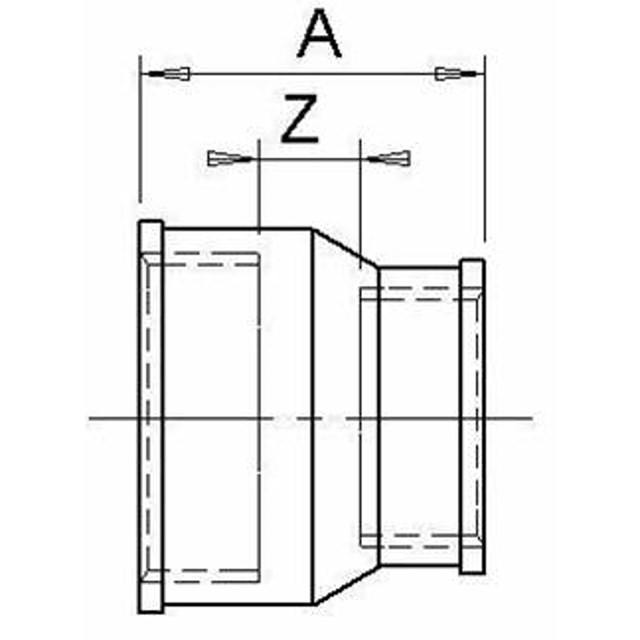

Thread standard according to DIN 2999, ISO 7. Manufactured in accordance with DIN 2950. The dimensions in the sketch are for illustration only and not part of the specification.

Article Dim. A mm Z mm Weight (kg) Dimensional sketch Item List
056485 ⅜" x ¼" 30 10 0.02
056487 ½" x ⅜" 36 13 0.06
056489 ¾" x ½" 39 11 0.09
056491 1" x ¾" 45 13 0.1
056393 1¼" x 1" 44 13 0.3
056495 1½" x 1¼" 45 15

056485

Dim. ⅜" x ¼"
A mm 30
Z mm 10
Weight (kg) 0.02
Dimensional sketch
Item list

056487

Dim. ½" x ⅜"
A mm 36
Z mm 13
Weight (kg) 0.06
Dimensional sketch
Item list

056489

Dim. ¾" x ½"
A mm 39
Z mm 11
Weight (kg) 0.09
Dimensional sketch
Item list

056491

Dim. 1" x ¾"
A mm 45
Z mm 13
Weight (kg) 0.1
Dimensional sketch
Item list

056393

Dim. 1¼" x 1"
A mm 44
Z mm 13
Weight (kg) 0.3
Dimensional sketch
Item list

056495

Dim. 1½" x 1¼"
A mm 45
Z mm 15
Weight (kg)
Dimensional sketch
Item list

Detailed Information

Description

Sleeve fitting for heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Technical Data

Max. working pressure: ¼”-¾”: Max 120°C – 2.5 MPa
Max 225°C – 1.6 MPa
1”-2”: Max 120°C – 1.6 MPa
Max 225°C – 1.0 MPa
2½”-4”: Max 120°C – 1.0 MPa
Max 225°C – 0.6 MPa
Thread standard: G - female thread
Material: Red Brass, according to DIN 1705, ISO 1338

Application

Muff 3240

Documentation

Product sheet

Sleeve Fitting 3240
