Union Part 3370

Union Part 3370

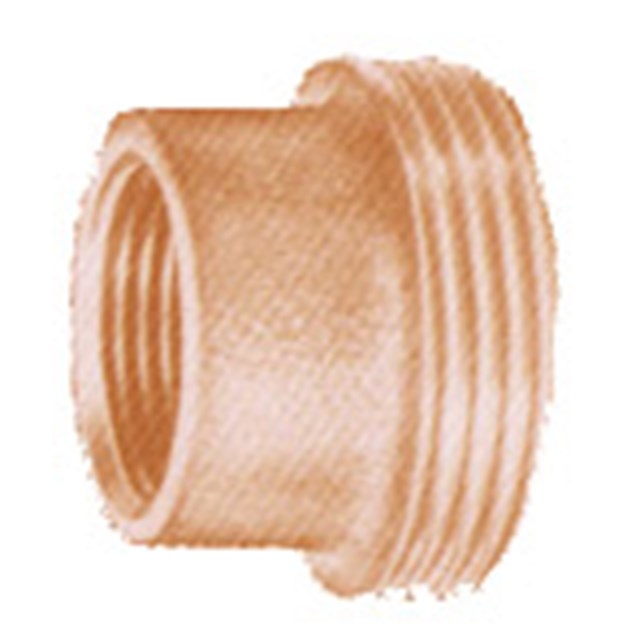

Female/male threaded union part for union nut, flat joint. For heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Union Part 3370

  • Variants
  • Detailed Information
  • Documentation

Variants

3370 – Female Thread /Male Thread

3370 – Female Thread /Male Thread 7 variants

Thread standard female according to DIN 2999, ISO 7/ male according to DIN - ISO 228. Manufactured in accordance with DIN 2950. The dimensions used in the sketch are for illustration only and not part of the specification.

Article Dim. A mm Note Weight (kg) Dimensional sketch Item List
056461 ⅜“ 22 Rotating nut: G20 0.04
056462 ½" 23 Rotating nut: G25
056463 ¾" 26 Rotating nut: G32
056464 1" 29 Rotating nut: G40
056465 1¼" 32 Rotating nut: G50
056466 1½" 35 Rotating nut: G60
056467 2" 41 Rotating nut: G70

056461

Dim. ⅜“
A mm 22
Note Rotating nut: G20
Weight (kg) 0.04
Dimensional sketch
Item list

056462

Dim. ½"
A mm 23
Note Rotating nut: G25
Weight (kg)
Dimensional sketch
Item list

056463

Dim. ¾"
A mm 26
Note Rotating nut: G32
Weight (kg)
Dimensional sketch
Item list

056464

Dim. 1"
A mm 29
Note Rotating nut: G40
Weight (kg)
Dimensional sketch
Item list

056465

Dim. 1¼"
A mm 32
Note Rotating nut: G50
Weight (kg)
Dimensional sketch
Item list

056466

Dim. 1½"
A mm 35
Note Rotating nut: G60
Weight (kg)
Dimensional sketch
Item list

056467

Dim. 2"
A mm 41
Note Rotating nut: G70
Weight (kg)
Dimensional sketch
Item list

Detailed Information

Description

Female/male threaded union part for union nut, flat joint. For heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Technical Data

Max. working pressure: ¼”-¾”: Max 120°C – 2,5 MPa
Max 225°C – 1,6 MPa
1”-2”: Max 120°C – 1,6 MPa
Max 225°C – 1,0 MPa
2½”-4”: Max 120°C – 1,0 MPa
Max 225°C – 0,6 MPa
Thread standard: G - male thread, G - female thread
Other data: Red Brass, according to DIN 1705, ISO 1338
Suitable rotating nuts 4374 - 4374R

Application

Documentation

Product sheet
