LK 551 HydroMix

LK 551 HydroMix

  • Anti-scald function
  • Adjustable temperature

LK 551 HydroMix is an asymmetrical mixing valve for water heating and heating systems. The mixing valve has a thermostatic element that regulates the supply of cold as well as hot water in order to achieve the ...

Read more

LK 551 HydroMix

  • Variants
  • Detailed Information
  • Documentation
  • Videos
  • Accessories & Spare parts

Variants

LK 551 - Female thread

LK 551 - Female thread 7 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm Note Weight (kg) Dimensional sketch Item List
181616 F ½" 1,5 70 99 43.5 45 25 - 45 °C 0.5
181617 F ¾" 1,6 70 99 43.5 45 25 - 45 °C 0.5
181455 F ½" 1,5 70 99 43.5 45 35 - 65 °C 0.5
181486 F ¾" 1,6 70 99 43.5 45 35 - 65 °C 0.5
182203 F 1" 3,5 84 121 62 55 10 - 30 °C 0.9
182204 F 1" 4,2 84 121 62 55 25 - 45 °C 0.9
182205 F 1 " 3,5 84 121 62 55 35 - 65 °C 0.9

181616

Dim. F ½"
Kvs m³/h 1,5
A mm 70
B mm 99
C mm 43.5
D mm 45
Note 25 - 45 °C
Weight (kg) 0.5

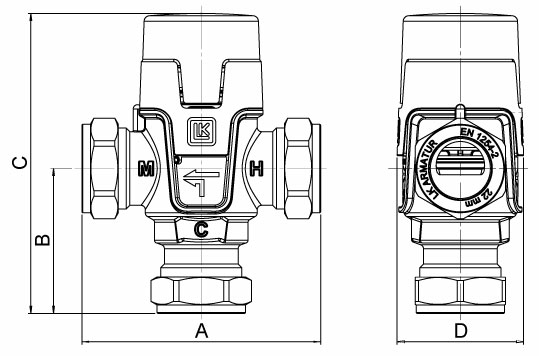

Dimensional sketch
