Kulventil 2142

2142 Ball Valve

Shut-off valve for fluids.

2142 Ball Valve

  • Variants
  • Detailed Information
  • Documentation

Variants

2142 - Compression fitting

2142 - Compression fitting 4 variants

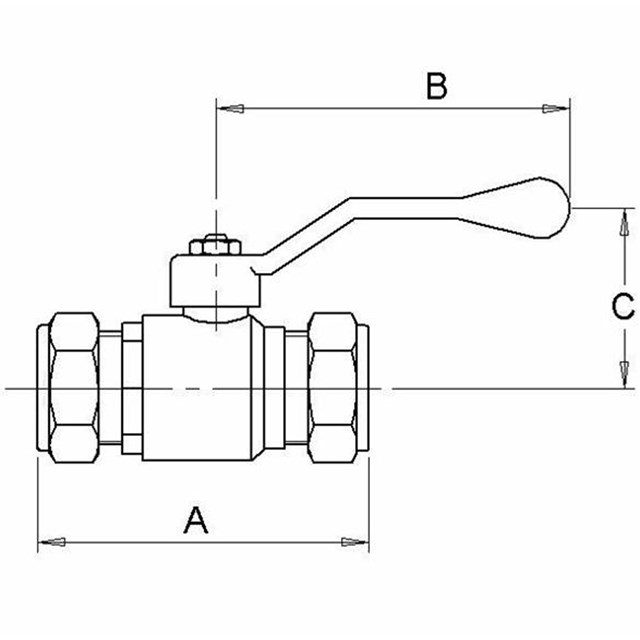

Article Dim. Connection A mm B mm C mm Weight (kg) Dimensional sketch Item List
061072 15 mm Compression fitting 76 84 45 0.2
061073 18 mm Compression fitting 73 84 45
061074 22 mm Compression fitting 85 84 48 0.3
061075 28 mm Compression fitting 86 110 58 0.5

061072

Dim. 15 mm
Connection Compression fitting
A mm 76
B mm 84
C mm 45
Weight (kg) 0.2
Dimensional sketch
Item list

061073

Dim. 18 mm
Connection Compression fitting
A mm 73
B mm 84
C mm 45
Weight (kg)
Dimensional sketch
Item list

061074

Dim. 22 mm
Connection Compression fitting
A mm 85
B mm 84
C mm 48
Weight (kg) 0.3
Dimensional sketch
Item list

061075

Dim. 28 mm
Connection Compression fitting
A mm 86
B mm 110
C mm 58
Weight (kg) 0.5
Dimensional sketch
Item list

Detailed Information

Description

Shut-off valve for fluids.

Technical Data

Max. working pressure: 1.6 MPa (16 bar)
Working temperature: Min. -20 °C / Max. 120 °C
Connection: Compression fitting
Material, sealing: PTFE
Material, ball valve: Brass MS58
Material, ball: Chrome plated

Documentation

Product sheet

2142 Ball Valve
