Kulventil 2152

2152 Ball Valve

Shut-off valve for fluids.

2152 Ball Valve

  • Variants
  • Detailed Information
  • Documentation

Variants

2152 - Compression fitting

2152 - Compression fitting 4 variants

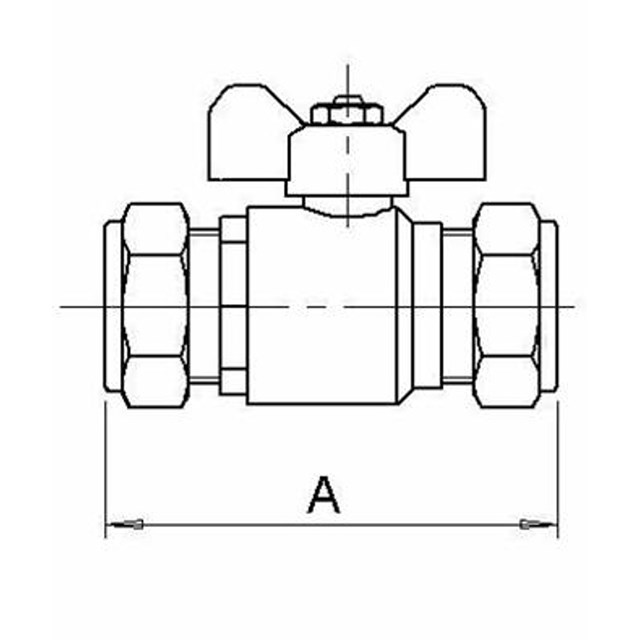

Article Dim. Connection A mm Weight (kg) Dimensional sketch Item List
061076 15 mm Compression fitting 76
061077 18 mm Compression fitting 73
061078 22 mm Compression fitting 85 0.3
061079 28 mm Compression fitting 86 0.5

061076

Dim. 15 mm
Connection Compression fitting
A mm 76
Weight (kg)
Dimensional sketch
Item list

061077

Dim. 18 mm
Connection Compression fitting
A mm 73
Weight (kg)
Dimensional sketch
Item list

061078

Dim. 22 mm
Connection Compression fitting
A mm 85
Weight (kg) 0.3
Dimensional sketch
Item list

061079

Dim. 28 mm
Connection Compression fitting
A mm 86
Weight (kg) 0.5
Dimensional sketch
Item list

Detailed Information

Description

Shut-off valve for fluids.

Technical Data

Max. working pressure: 1.6 MPa (16 bar)
Working temperature: Min. -20 °C / Max. 120 °C
Connection: Compression fitting
Material, sealing: PTFE
Material, ball valve: Brass MS58
Material, ball: Chrome plated

Documentation

Product sheet

2152 Ball Valve
