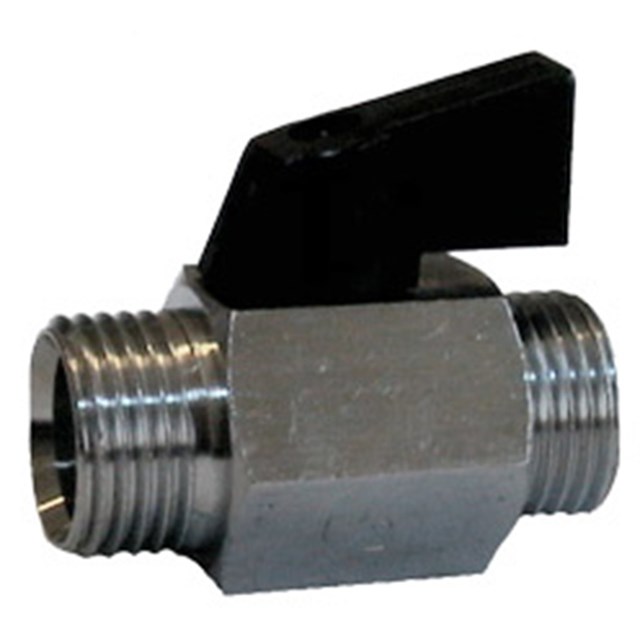

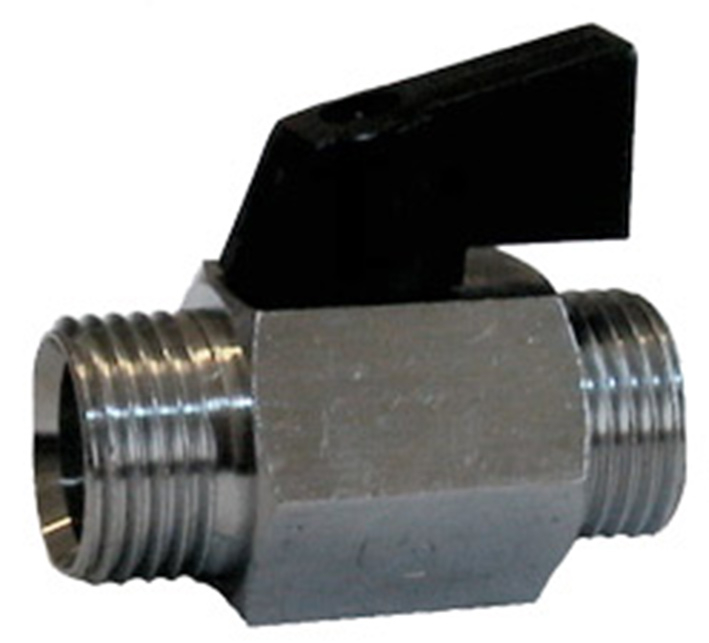

2902 Mini Ball Valve

2902 Mini Ball Valve

Shut-off valve for fluids.

2902 Mini Ball Valve

  • Variants
  • Detailed Information
  • Documentation

Variants

2902 - Male thread

2902 - Male thread 3 variants

Article Dim. Weight (kg) A mm Dimensional sketch Item List
061037 ¼"
061038 ⅜" 48
061039 ½" 0.1 40

061037

Dim. ¼"
Weight (kg)
A mm

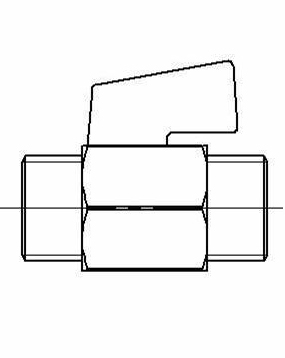

Dimensional sketch
Item list

061038

Dim. ⅜"
Weight (kg)
A mm 48
Dimensional sketch
Item list

061039

Dim. ½"
Weight (kg) 0.1
A mm 40
Dimensional sketch
Item list

Detailed Information

Description

Shut-off valve for fluids.

Technical Data

Working temperature: Max. 120°C
Max. working pressure: 1.0 MPa
Thread standard: G - male thread
Other data: Material, ball valve Brass MS 58, externally chrome plated
Material, ball Chrome plated
Material, sealing: PTFE

Documentation

Product sheet
