Kulventil 368CR

368CR Ball Valve

Shut-off valve for fluids.

368CR Ball Valve

  • Variants
  • Detailed Information
  • Documentation

Variants

368CR - Compression fitting

368CR - Compression fitting 4 variants

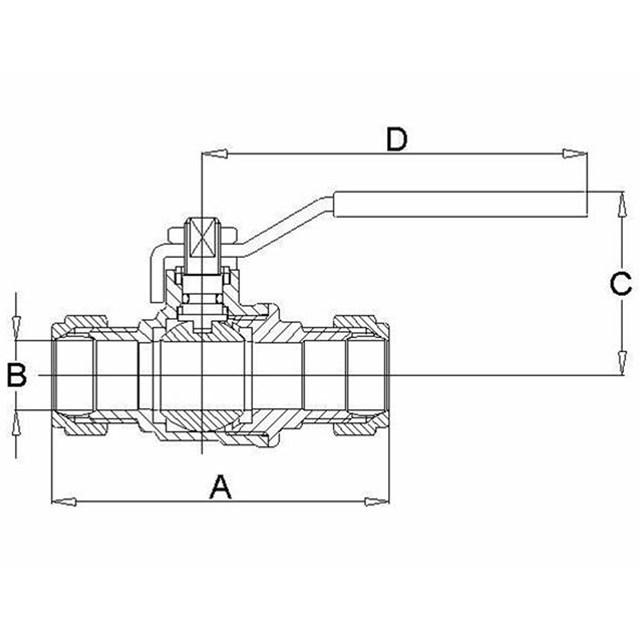

Article Dim. DN Connection A mm B mm C mm D mm Weight (kg) Dimensional sketch Item List
061091 18 mm DN 20 Compression fitting 84.5 18 43.5 85 0.7
061092 22 mm DN 20 Compression fitting 84.5 22 43.5 85 0.4
061093 28 mm DN 25 Compression fitting 92.5 28 53 119 0.6
061096 54 mm DN 50 Compression fitting 142 54 83 162 2.3

061091

Dim. 18 mm
DN DN 20
Connection Compression fitting
A mm 84.5
B mm 18
C mm 43.5
D mm 85
Weight (kg) 0.7
Dimensional sketch
Item list

061092

Dim. 22 mm
DN DN 20
Connection Compression fitting
A mm 84.5
B mm 22
C mm 43.5
D mm 85
Weight (kg) 0.4
Dimensional sketch
Item list

061093

Dim. 28 mm
DN DN 25
Connection Compression fitting
A mm 92.5
B mm 28
C mm 53
D mm 119
Weight (kg) 0.6
Dimensional sketch
Item list

061096

Dim. 54 mm
DN DN 50
Connection Compression fitting
A mm 142
B mm 54
C mm 83
D mm 162
Weight (kg) 2.3
Dimensional sketch
Item list

Detailed Information

Description

Shut-off valve for fluids.

Technical Data

Max. working pressure: 1.6 MPa (16 bar)
Working temperature: Min. -20 °C / Max. 120 °C
Connection: Compression fitting
Material, sealing: PTFE
Material, ball valve: DZR-brass
Material, ball: Hard chrome plated

Documentation

Product sheet

368CR Ball Valve
