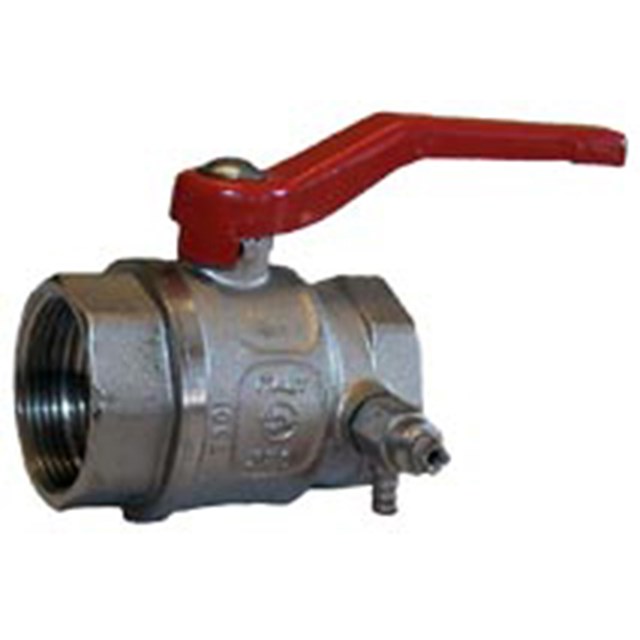

376S Ball Valve

376S Ball Valve

Shut-off valve for fluids.

376S Ball Valve

  • Variants
  • Detailed Information
  • Documentation

Variants

376S - Female thread

376S - Female thread 5 variants

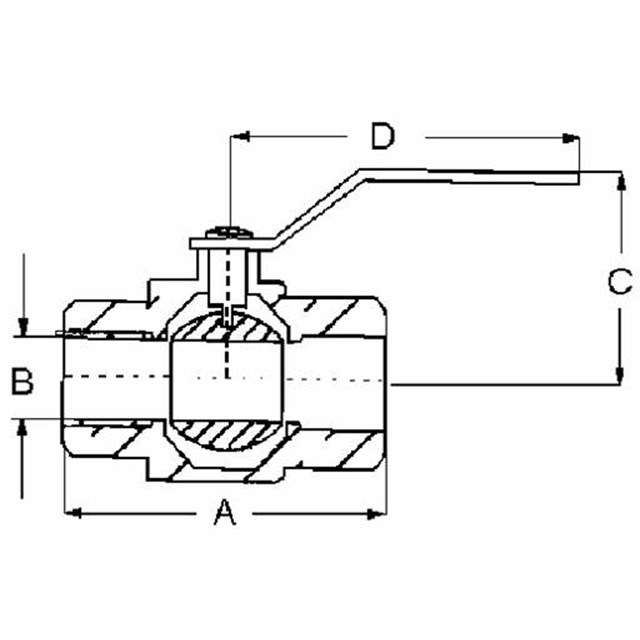

Article Dim. A mm B mm C mm D mm Weight (kg) Dimensional sketch Item List
055258 ½" 49 14 41 83
055259 ¾" 57 19 46 83 0.2
055260 1" 67 24 56 90 0.5
055261 1¼" 76 30 66 110
055263 2" 103 45 82 130 1.5

055258

Dim. ½"
A mm 49
B mm 14
C mm 41
D mm 83
Weight (kg)
Dimensional sketch
Item list

055259

Dim. ¾"
A mm 57
B mm 19
C mm 46
D mm 83
Weight (kg) 0.2
Dimensional sketch
Item list

055260

Dim. 1"
A mm 67
B mm 24
C mm 56
D mm 90
Weight (kg) 0.5
Dimensional sketch
Item list

055261

Dim. 1¼"
A mm 76
B mm 30
C mm 66
D mm 110
Weight (kg)
Dimensional sketch
Item list

055263

Dim. 2"
A mm 103
B mm 45
C mm 82
D mm 130
Weight (kg) 1.5
Dimensional sketch
Item list

Detailed Information

Description

Shut-off valve for fluids.

Technical Data

Working temperature: Min. -20 °C / Max. 120 °C
Max. working pressure: 2.5 MPa
Thread standard: G - female thread
Other data: Material, ball valve Brass MS 58, externally sand blasted and nickel-plated
Material, ball Chrome plated
Material, sealing: PTFE

Documentation

Product sheet

376S Ball Valve
