LK 524 MultiFill® Plus

New

LK 524 MultiFill® Plus

  • Recharges the borehole in summer
  • Dual functionality
  • Compact and easy to install even in tight spaces

LK 524 MultiFill®Plus is a compact combination valve with 2 connections for easy filling of the brine in the collector hose for geothermal heat pumps and 2 connections to lead the brine in the collector hose to...

Read more

LK 524 MultiFill® Plus

  • Variants
  • Detailed Information
  • Documentation
  • Accessories & Spare parts

Variants

LK 524 Plus - Male thread

LK 524 Plus - Male thread 1 artikel

Article Dim. Dim. 2 Kvs m³/h Weight (kg) Item List
092398 M 1¼" M ¾" 22 2.3

092398

Dim. M 1¼"
Dim. 2 M ¾"
Kvs m³/h 22
Weight (kg) 2.3
Item list

Dimension 1 - Pipe connection to collector hose
Dimension 2 - Connections for filling of fluid to heat pump and to a fan coil unit

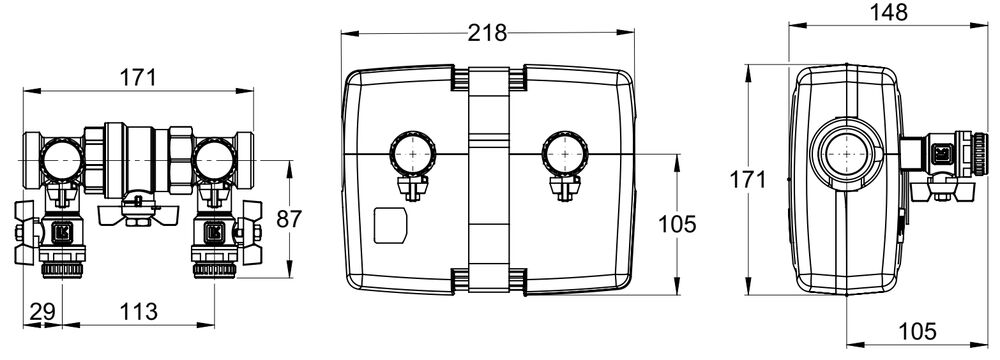

Dimensions according to dimensional drawings are guidance and not part of the specification

Detailed Information

Description

LK 524 MultiFill®Plus is a compact combination valve with 2 connections for easy filling of the brine in the collector hose for geothermal heat pumps and 2 connections to lead the brine in the collector hose to a fan coil unit so that you can cool your home with the cold that is naturally found in the ground. In addition, the borehole is recharged during the summer, which increases the performance of the heat pump.

LK 524 is supplied with insulation to protect against condensation and possible icing. The valve's compact design makes it easy to install even in tight spaces.

Technical Data

Max. working pressure: 1.0 MPa (10 bar)
Working temperature: Min. -20 °C/Max. 80 °C
Mesh opening, filter: 0.7 mm²
Thread standard: G - male thread
Media 1: Water - Glycol mixture max. 50%
Media 2: Water - Ethanol mixture max. 30%
Material, valve body: Brass EN 12165 CW617N
Material, insulation: Expanded Polystyrene EPS
Material, filter element: Stainless Steel
Material, sealing: EPDM
Material, ball valve: Stainless steel
Other data: Ethanol mixture - Working temperature: Max. 60 °C

Documentation

Product sheet

LK 524 MultiFill® Plus

Accessories & Spare parts

Article no. Article Position
095073 Ball valve incl. filter 1
187984 LK Insulation, 524 Plus 2
