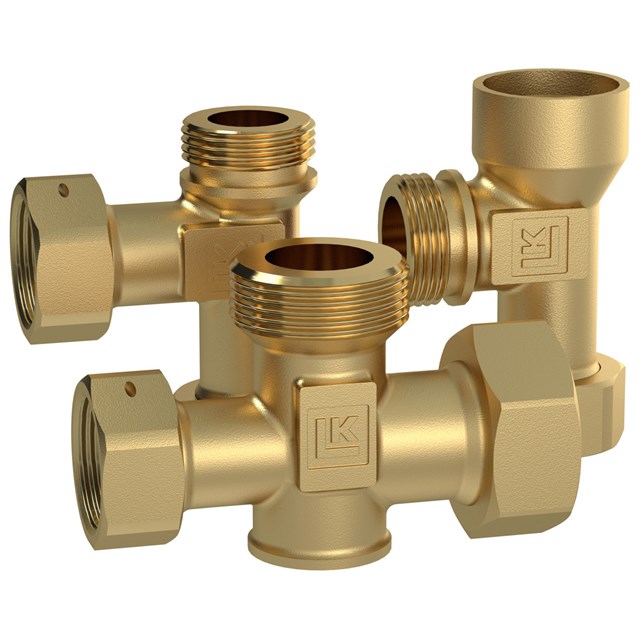

LK MultiConnection

LK MultiConnection

LK MultiConnections are a series of fittings for easy installation. Connections with fixed threads are designed for LK Armatur systems with O-ring seals (except 935). Flat surfaces are sealed with fibre gaske...

Read more

LK MultiConnection

  • Variants
  • Detailed Information
  • Documentation
  • Accessories & Spare parts

Variants

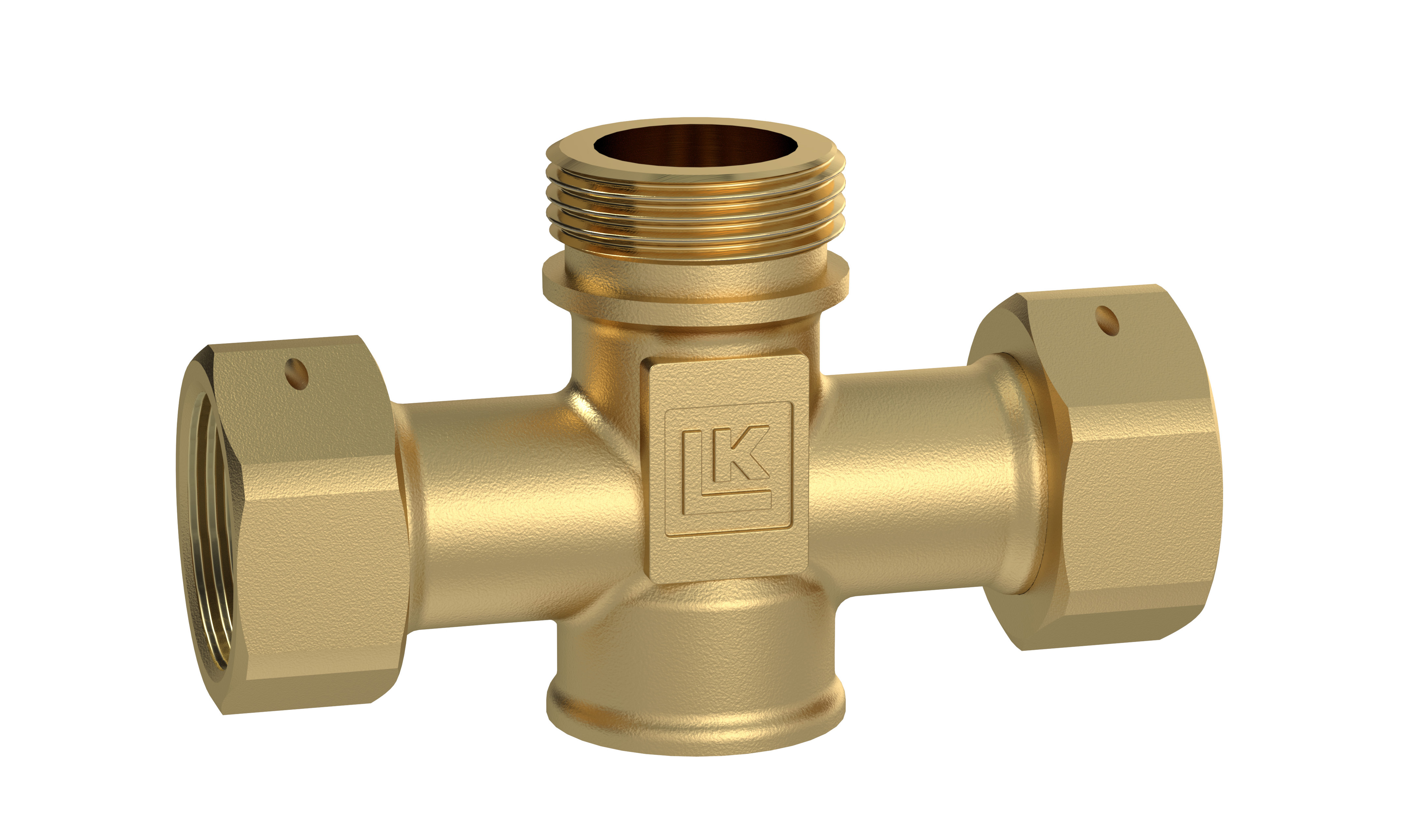

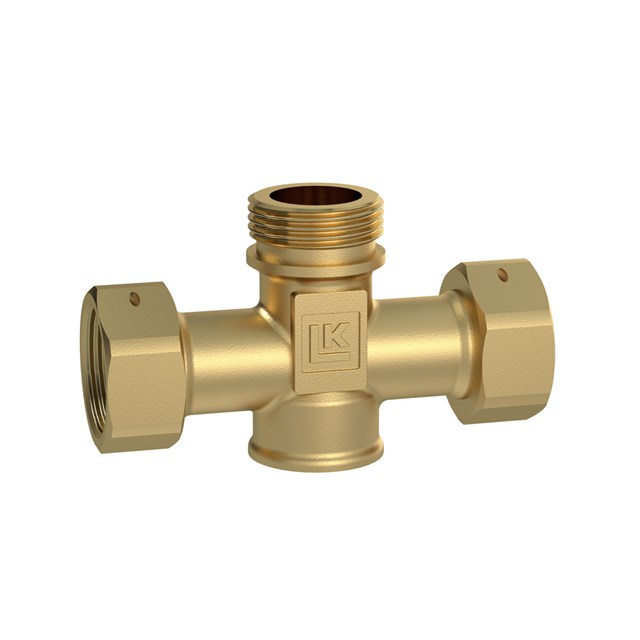

LK 931 - Male / Female / Rotating nut

LK 931 - Male / Female / Rotating nut 1 artikel

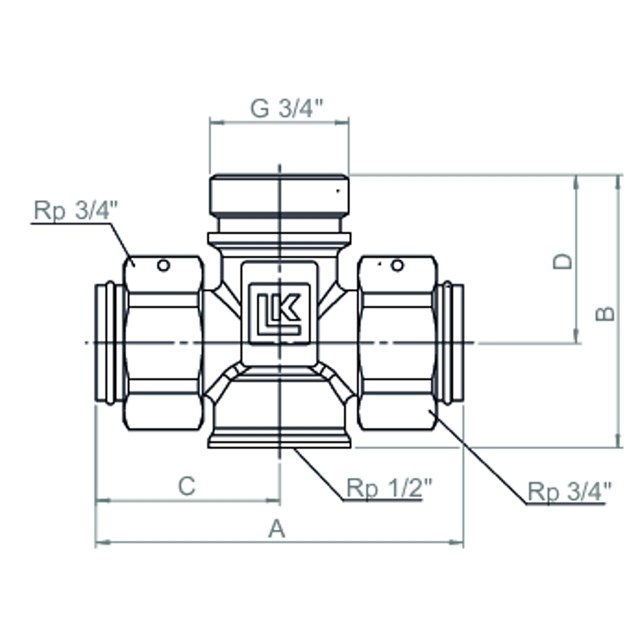

Article Dim. A mm B mm C mm D mm Weight (kg) Dimensional sketch Item List
090090 M ¾" x F ½" x F ¾" rotating nuts x 2 70 52 35 32 0.2

090090

Dim. M ¾" x F ½" x F ¾" rotating nuts x 2
A mm 70
B mm 52
C mm 35
D mm 32
Weight (kg) 0.2
Dimensional sketch
Item list

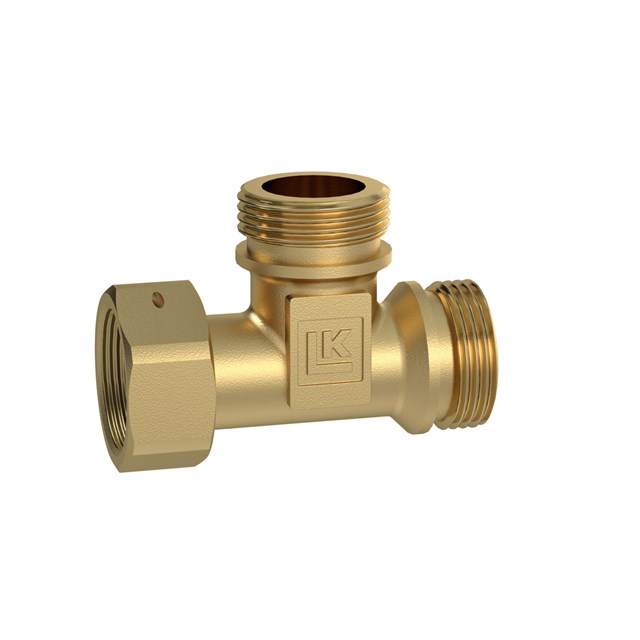

LK 932 - Male / Rotating nut

LK 932 - Male / Rotating nut 1 artikel

Article Dim. A mm B mm C mm Weight (kg) Dimensional sketch Item List
090091 M ¾" x F ¾" rotating nut 60 32 30 0.2

090091

Dim. M ¾" x F ¾" rotating nut
A mm 60
B mm 32
C mm 30
Weight (kg) 0.2

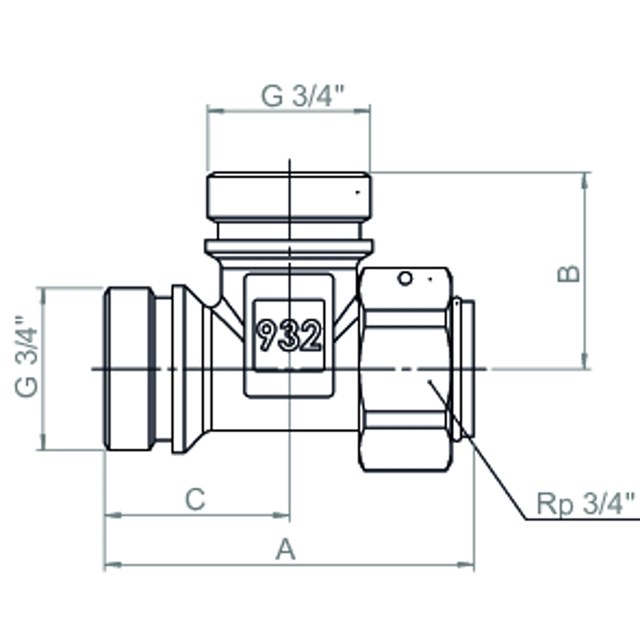

Dimensional sketch
Item list

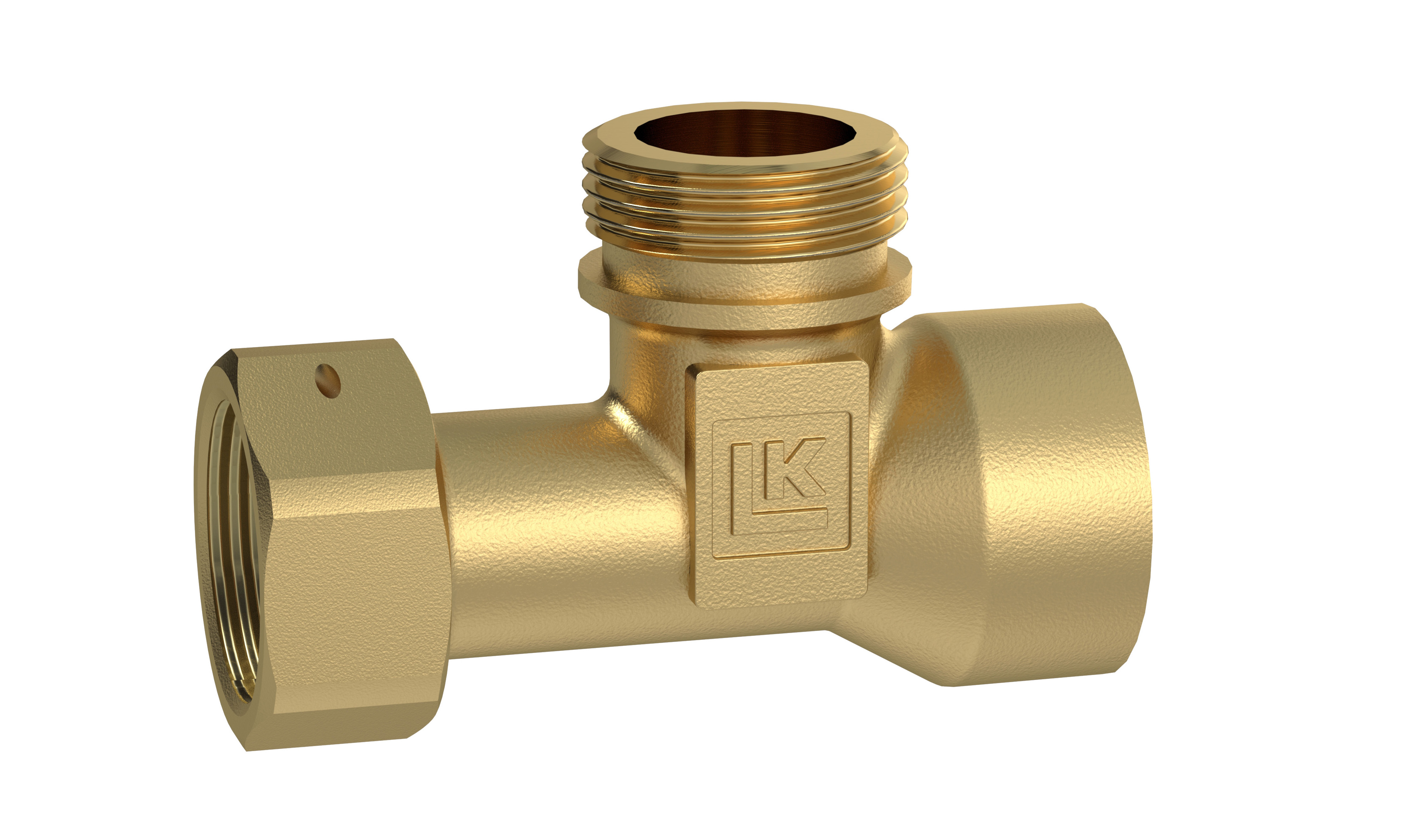

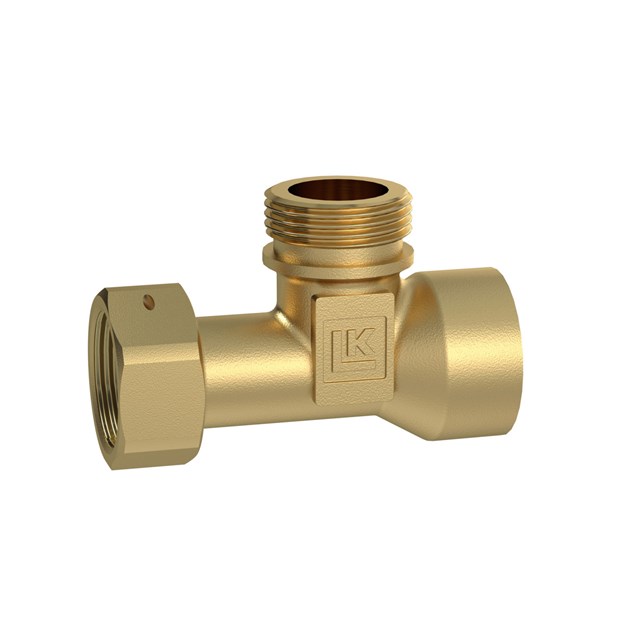

LK 933 - Male / Female / Rotating nut

LK 933 - Male / Female / Rotating nut 1 artikel

Article Dim. A mm B mm C mm Weight (kg) Dimensional sketch Item List
090092 M ¾" x F ¾" x F ¾" rotating nut 65 32 30 0.2

090092

Dim. M ¾" x F ¾" x F ¾" rotating nut
A mm 65
B mm 32
C mm 30
Weight (kg) 0.2

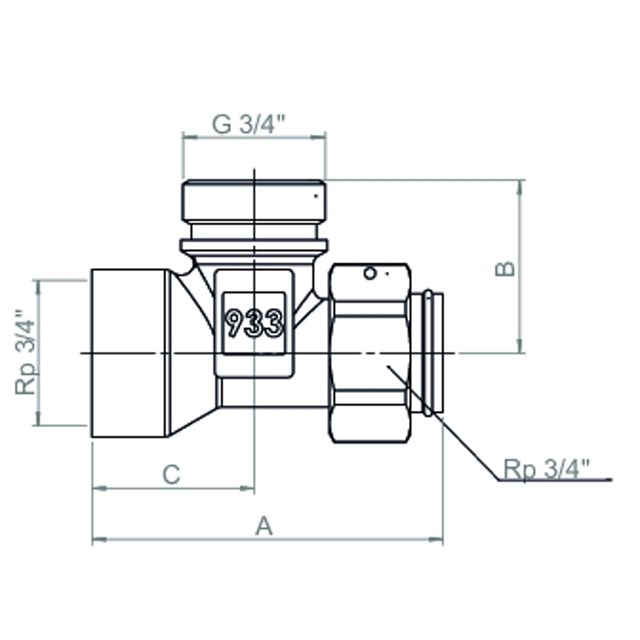

Dimensional sketch
Item list

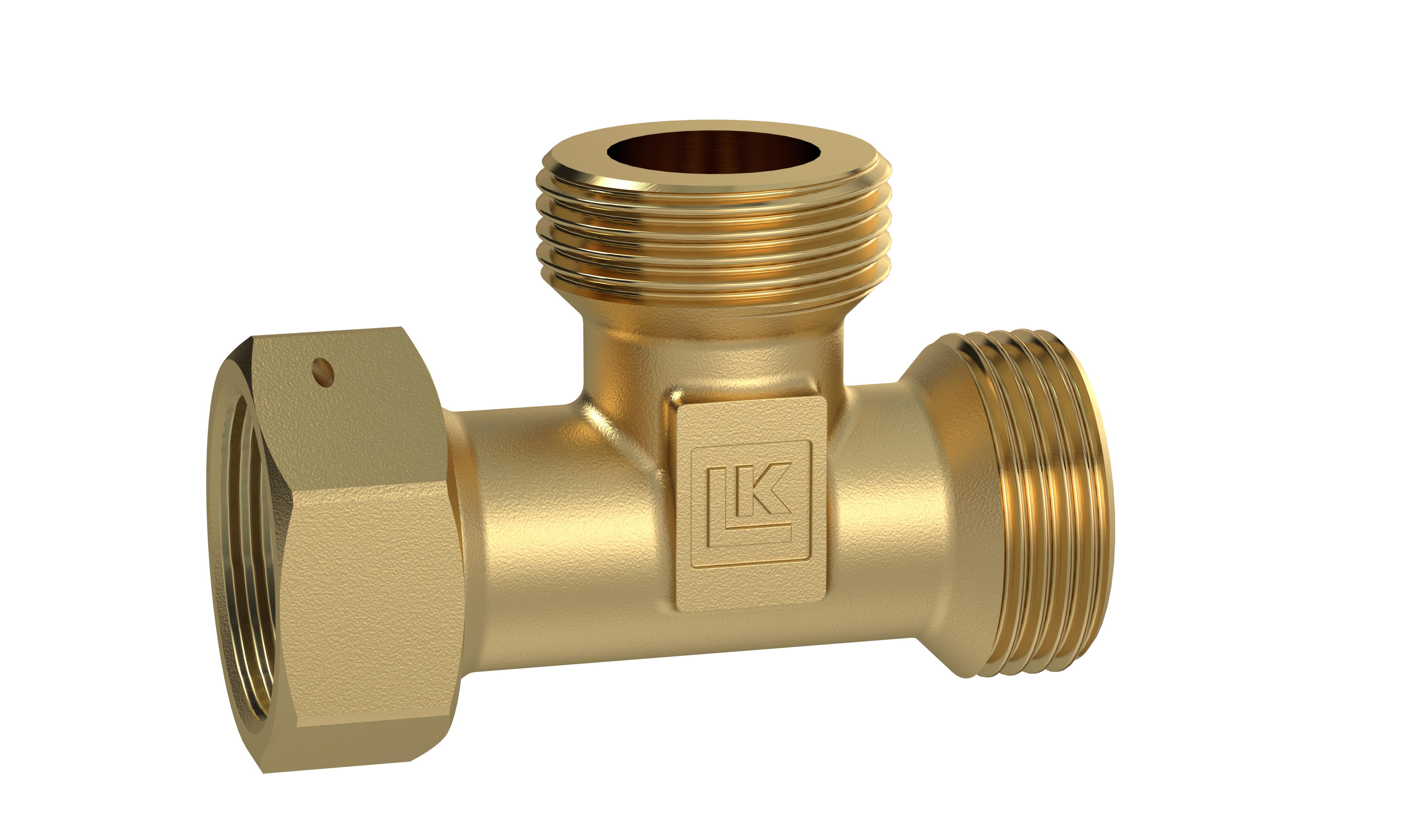

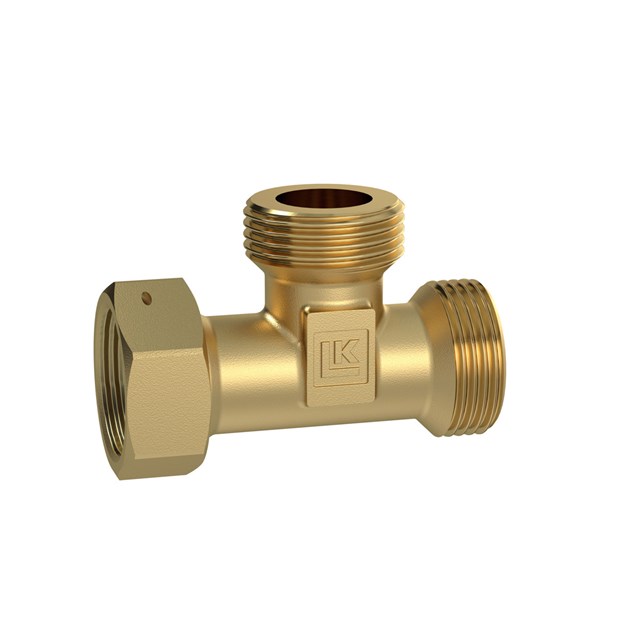

LK 935 - Male / Rotating nut

LK 935 - Male / Rotating nut 1 artikel

Article Dim. A mm B mm C mm Weight (kg) Dimensional sketch Item List
090257 M 1" x M 1" x F 1" rotating nut 70 36 35 0.2

090257

Dim. M 1" x M 1" x F 1" rotating nut
A mm 70
B mm 36
C mm 35
Weight (kg) 0.2

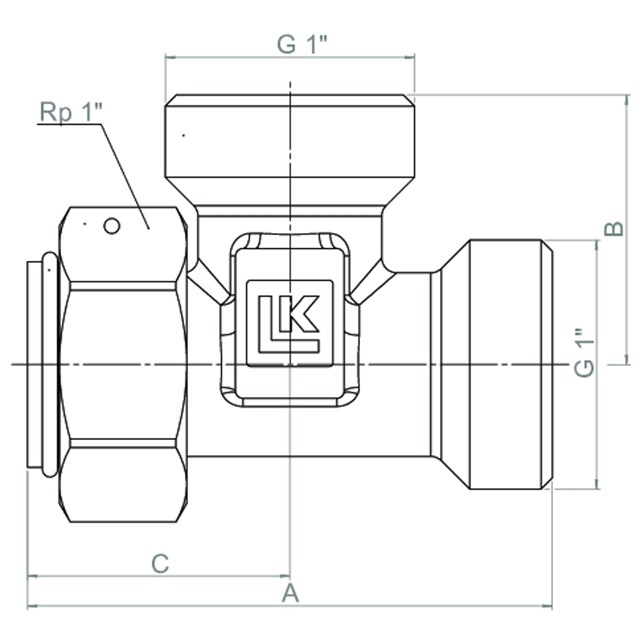

Dimensional sketch
Item list

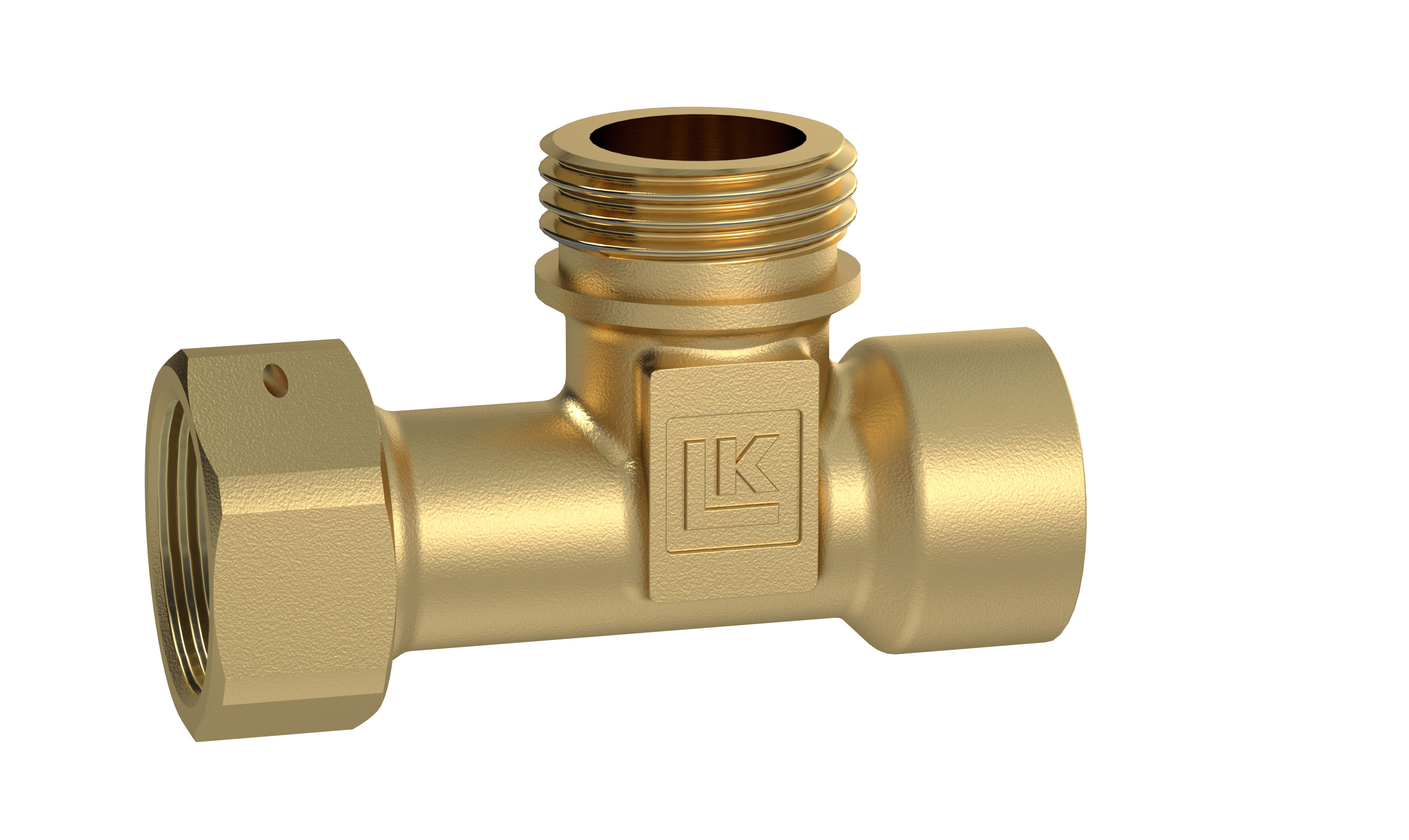

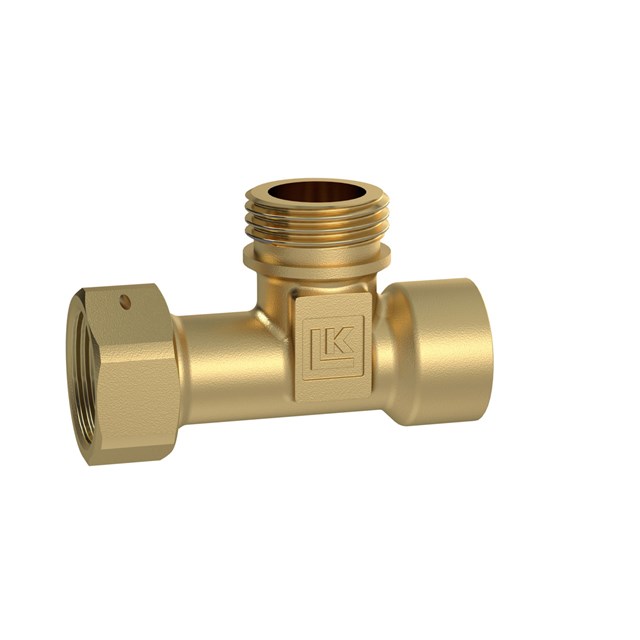

LK 936 - Female / Male / Rotating nut

LK 936 - Female / Male / Rotating nut 1 artikel

Article Dim. A mm B mm C mm Weight (kg) Dimensional sketch Item List
090258 F ½" x M ¾" x F ¾" rotating nut 65 32 35 0.2

090258

Dim. F ½" x M ¾" x F ¾" rotating nut
A mm 65
B mm 32
C mm 35
Weight (kg) 0.2

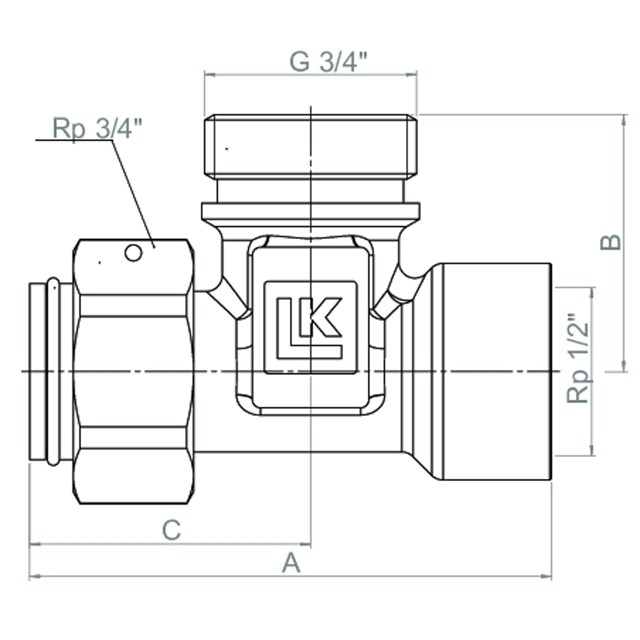

Dimensional sketch
Item list

Detailed Information

Description

LK MultiConnections are a series of fittings for easy installation.
Connections with fixed threads are designed for LK Armatur systems with O-ring seals (except 935).

Flat surfaces are sealed with fibre gaskets. See accessories for suitable fibre gaskets, below.

Technical Data

Working temperature: Min -20 °C/Max 120 °C
Max. working pressure: 1.6 MPa (16 bar)
Media 1: Water - Glycol mixture max. 50%
Thread standard: Rp - female thread, G - male thread
Material, valve body: DZR Brass EN 12165 CW625N

Documentation

Product sheet

LK MultiConnection

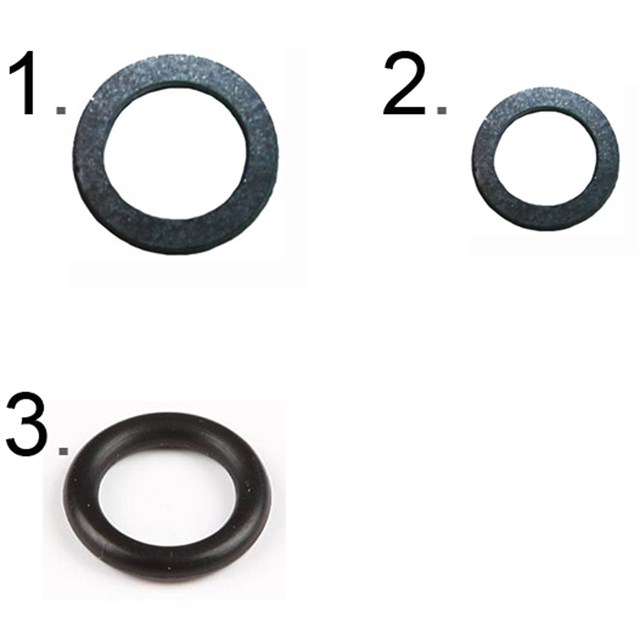

Accessories & Spare parts

Article no. Article Position
013035 Gasket C4400 1” 1
013032 Gasket C4400 ¾” 2
012018 O-ring for M ¾” 3
