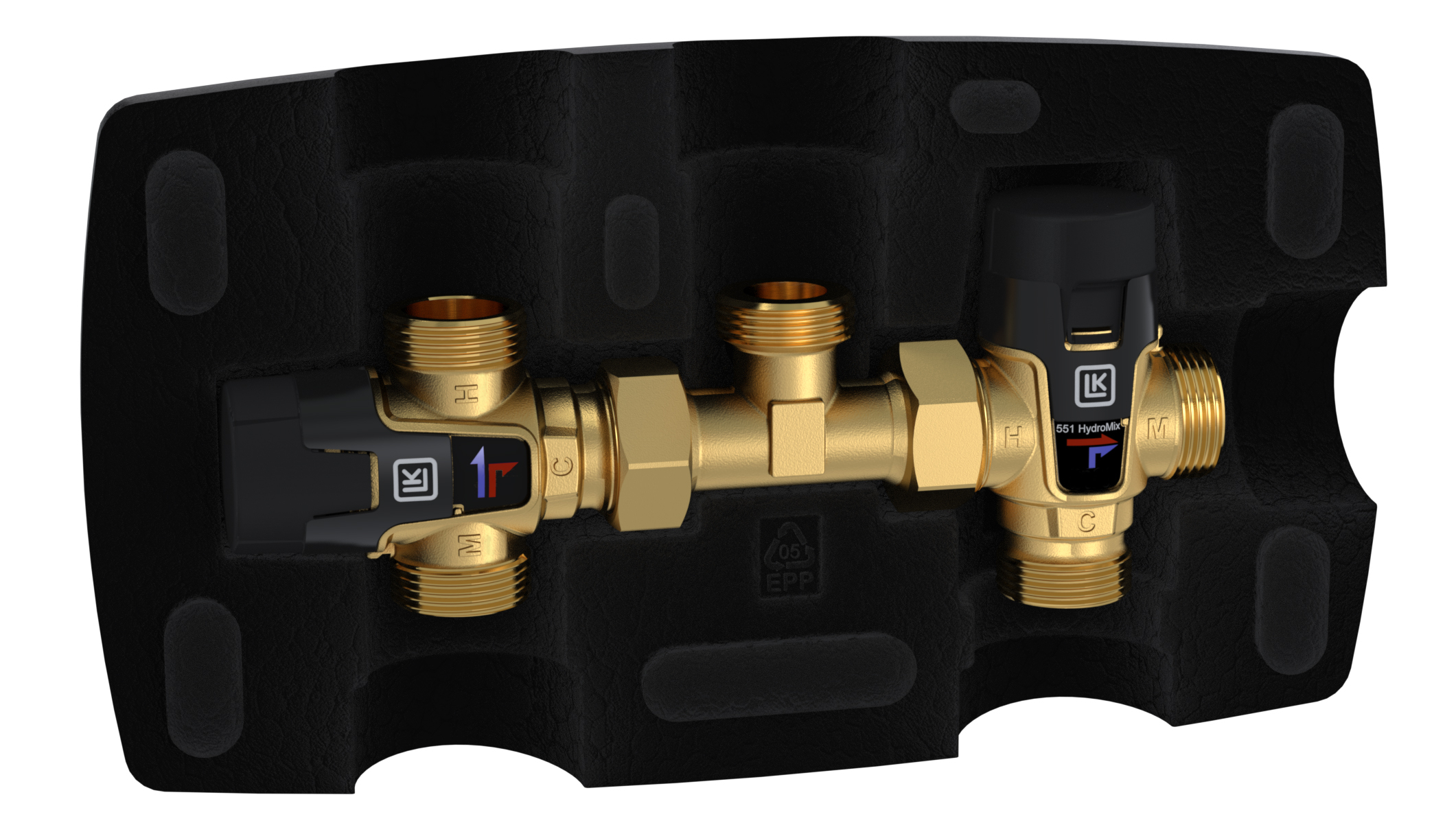

LK 551 HydroKit Solar is a valve combination, designed to energy optimize water heating from two different heat sources.
LK 551 HydroKit Solar

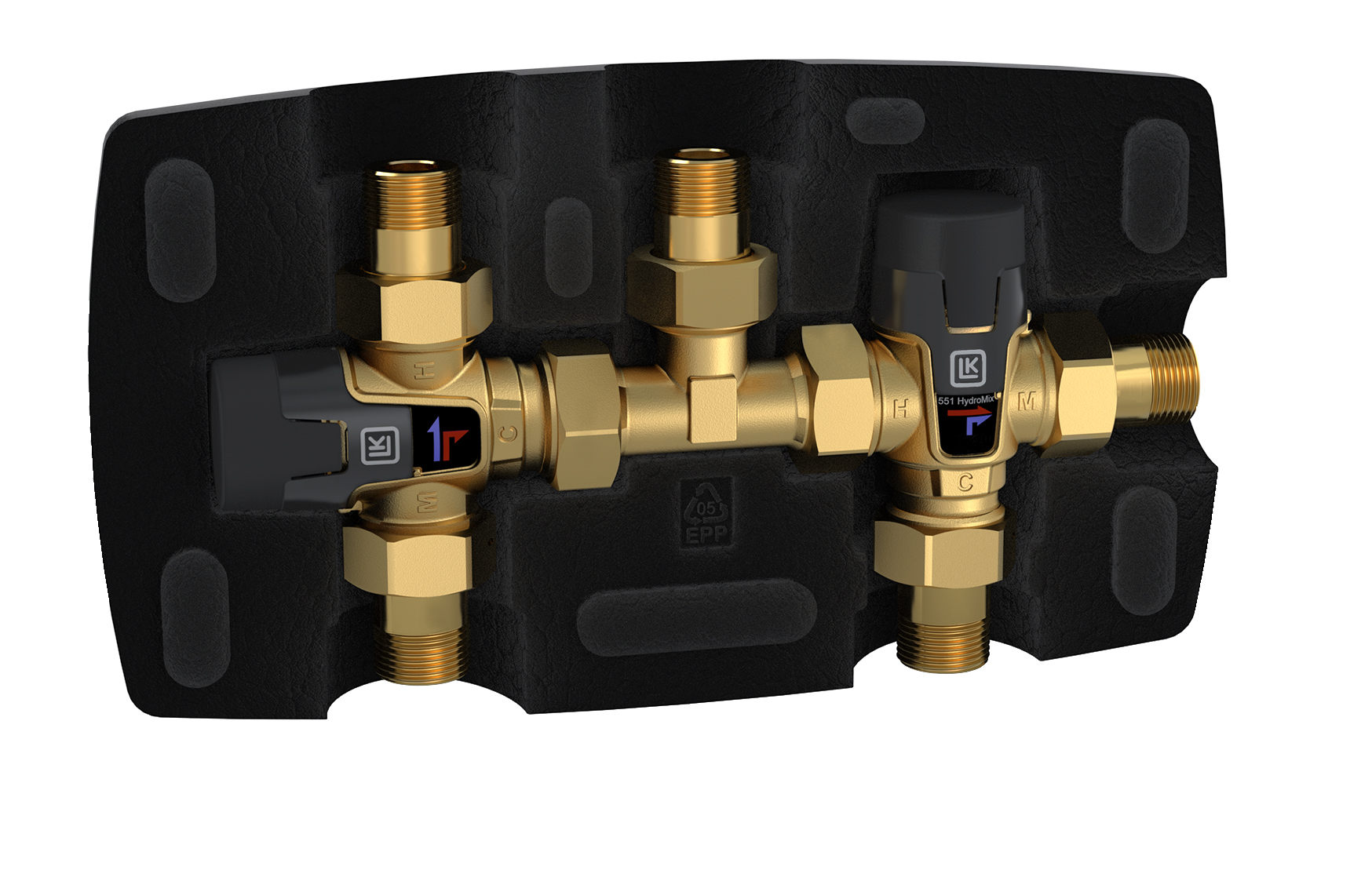

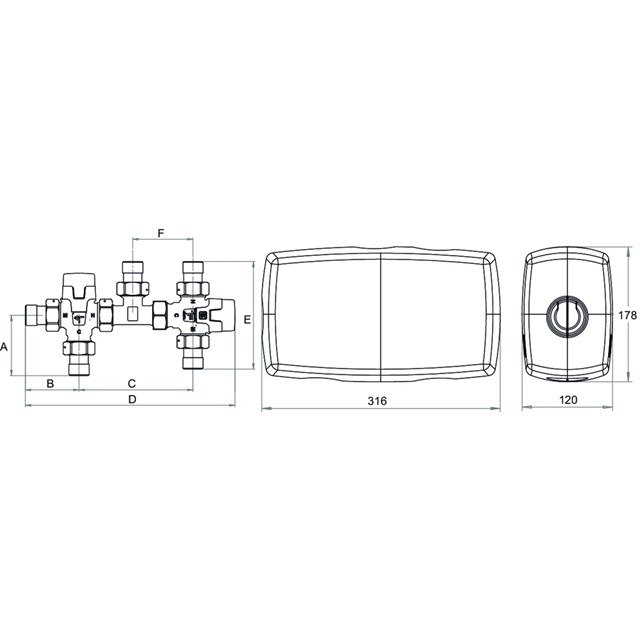

LK 551 HydroKit Solar - with connection kit 3 variants

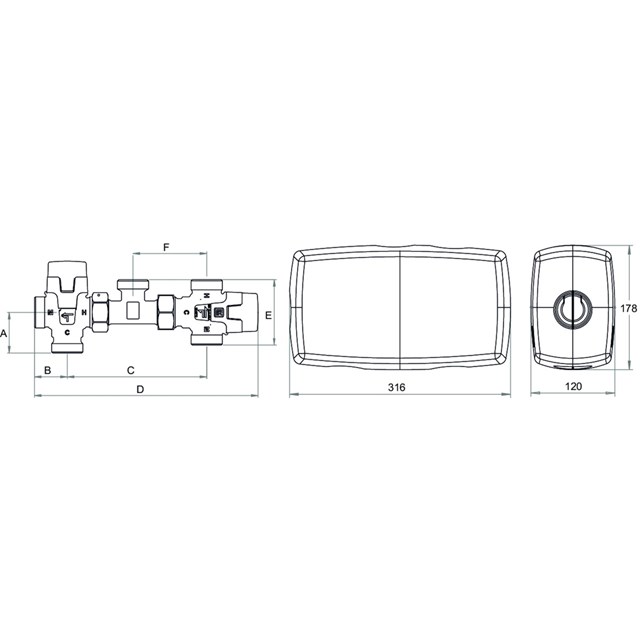

Article | Dim. | Kvs m³/h | A mm | B mm | C mm | D mm | E mm | F mm | Weight (kg) | Note | Dimensional sketch | Item List |
---|---|---|---|---|---|---|---|---|---|---|---|---|
181588 | M ¾" | 1,6 | 79 | 70 | 149 | 273 | 140 | 79 | 1.6 |
|
||
182292 | M ¾" | 1,6 | 79 | 70 | 149 | 55 | 140 | 79 | 1.7 | Insulation included |
|
|
182674 | M ¾" | 3,5 | 97 | 77 | 175 | 310 | 154 | 100 | 2.5 |
|
181588
Dim. | M ¾" |
Kvs m³/h | 1,6 |
A mm | 79 |
B mm | 70 |
C mm | 149 |
D mm | 273 |
E mm | 140 |
F mm | 79 |
Weight (kg) | 1.6 |
Note | |
Dimensional sketch | |
Item list |
|
182292
Dim. | M ¾" |
Kvs m³/h | 1,6 |
A mm | 79 |
B mm | 70 |
C mm | 149 |
D mm | 55 |
E mm | 140 |
F mm | 79 |
Weight (kg) | 1.7 |
Note | Insulation included |
Dimensional sketch | |
Item list |
|
182674
Dim. | M ¾" |
Kvs m³/h | 3,5 |
A mm | 97 |
B mm | 77 |
C mm | 175 |
D mm | 310 |
E mm | 154 |
F mm | 100 |
Weight (kg) | 2.5 |
Note | |
Dimensional sketch | |
Item list |
|
Connection kit included: contains nuts, gaskets, fittings (5 pcs of each) check valves (2 pcs).
Article 181588
A mm | 79 |
B mm | 70 |
C mm | 149 |
D mm | 273 |
E mm | 140 |
F mm | 79 |
Article 182292
A mm | 79 |
B mm | 70 |
C mm | 149 |
D mm | 55 |
E mm | 140 |
F mm | 79 |
Article 182294
A mm | 97 |
B mm | 77 |
C mm | 149 |
D mm | 280 |
E mm | 140 |
F mm | 79 |
Article 182674
A mm | 97 |
B mm | 77 |
C mm | 175 |
D mm | 310 |
E mm | 154 |
F mm | 100 |

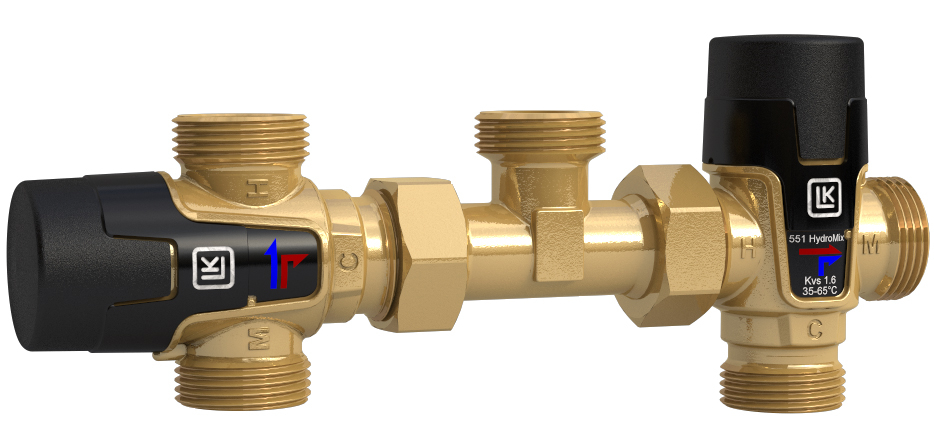

LK 551 HydroKit Solar 3 variants
Article | Dim. | Kvs m³/h | A mm | B mm | C mm | D mm | E mm | F mm | Weight (kg) | Note | Dimensional sketch | Item List |
---|---|---|---|---|---|---|---|---|---|---|---|---|
181690 | M 1" | 1,6 | 44 | 35 | 149 | 238 | 70 | 79 | 1.6 |
|
||
182293 | M 1" | 1,6 | 44 | 35 | 149 | 238 | 70 | 79 | 1.7 | Insulation included |
|
|
182295 | M 1" | 2,5 | 62 | 42 | 149 | 245 | 70 | 79 | 1.7 | Insulation included |
|
181690
Dim. | M 1" |
Kvs m³/h | 1,6 |
A mm | 44 |
B mm | 35 |
C mm | 149 |
D mm | 238 |
E mm | 70 |
F mm | 79 |
Weight (kg) | 1.6 |
Note | |
Dimensional sketch | |
Item list |
|
182293
Dim. | M 1" |
Kvs m³/h | 1,6 |
A mm | 44 |
B mm | 35 |
C mm | 149 |
D mm | 238 |
E mm | 70 |
F mm | 79 |
Weight (kg) | 1.7 |
Note | Insulation included |
Dimensional sketch | |
Item list |
|
182295
Dim. | M 1" |
Kvs m³/h | 2,5 |
A mm | 62 |
B mm | 42 |
C mm | 149 |
D mm | 245 |
E mm | 70 |
F mm | 79 |
Weight (kg) | 1.7 |
Note | Insulation included |
Dimensional sketch | |
Item list |
|
Article 181690
A mm | 44 |
B mm | 35 |
C mm | 149 |
D mm | 238 |
E mm | 70 |
F mm | 79 |
Article 182293
A mm | 44 |
B mm | 35 |
C mm | 149 |
D mm | 238 |
E mm | 70 |
F mm | 79 |
Article 182295
A mm | 62 |
B mm | 42 |
C mm | 149 |
D mm | 245 |
E mm | 70 |
F mm | 79 |
Article 182427
A mm | 62 |
B mm | 42 |
C mm | 174 |
D mm | 269 |
E mm | 84 |
F mm | 97 |
Description

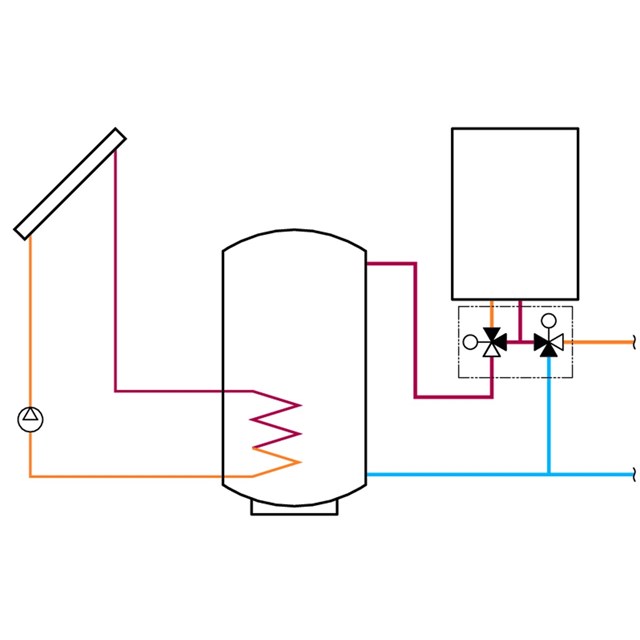

LK 551 HydroKit Solar is a valve combination, designed to energy optimize water heating from two different heat sources. In order to maintain the set water temperature, the warm water from one heat source is mixed and led directly to the mixed water outlet or if needed diverted to an other heat source for further heating.
LK 551 HydroKit Solar has two thermic valves; one diverting valve and one mixing valve with anti-scald function. The warm water temperature, for the mixing valve, is adjustable within the range of 35 °C to 65 °C and for the diverting valve the temperature is adjustable within the range of 42 °C to 52 °C.
Technical Data
Working temperature: | Min. 5 °C/Max. 95 °C |
Operating temperature: | Min. 35 °C/Max. 65 °C |
Max. working pressure: | 1.0 MPa (10 bar) |
Media 1: | Water - Glycol mixture max. 50% Ethanol mixture max. 30% |
Thread standard: | G - male thread |
Material, valve body: | Brass EN 12165 CW617N |
Other data: |
Divertingtemperature Min. 42 °C/Max. 52 °C Temperature stability ±3 °C |
Application
Article no. | Article | Position |
---|---|---|
095234 | Repair kit 551, 35 - 65 °C (Kvs 1.6) | 1 |
095075 | Repair kit 551 F, 42 - 52 °C | 1 |
095350 | Repair kit 551, 35 - 65 °C (Kvs 3.2-4.2) | 1 |
095389 | Connection kit M ¾" x 1" with rotating nut, gaskets, 2 check valves | 2 |
095390 | LK Insulation (Kvs 1.6 - 2.5) | 3 |
095459 | LK Insulation (Kvs 3.5) | 3 |
Technical Data
Working temperature: | Min. 5 °C/Max. 95 °C |
Operating temperature: | Min. 35 °C/Max. 65 °C |
Max. working pressure: | 1.0 MPa (10 bar) |
Media 1: | Water - Glycol mixture max. 50% Ethanol mixture max. 30% |
Thread standard: | G - male thread |
Material, valve body: | Brass EN 12165 CW617N |
Other data: |
Divertingtemperature Min. 42 °C/Max. 52 °C Temperature stability ±3 °C |
LK 551 HydroKit Solar is a valve combination, designed to energy optimize water heating from two different heat sources. In order to maintain the set water temperature, the warm water from one heat source is mixed and led directly to the mixed water outlet or if needed diverted to an other heat source for further heating.
LK 551 HydroKit Solar has two thermic valves; one diverting valve and one mixing valve with anti-scald function. The warm water temperature, for the mixing valve, is adjustable within the range of 35 °C to 65 °C and for the diverting valve the temperature is adjustable within the range of 42 °C to 52 °C.

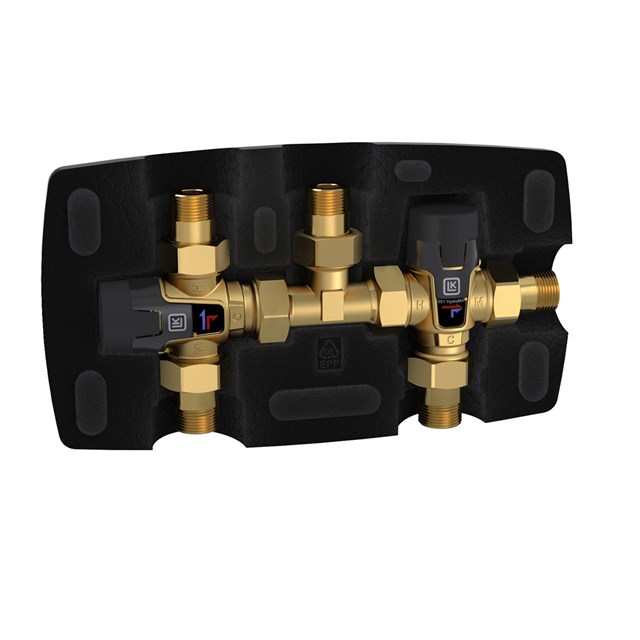

LK 551 HydroKit Solar - with connection kit
Article | Dim. | Kvs m³/h | A mm | B mm | C mm | D mm | E mm | F mm | Weight (kg) | Note |
---|---|---|---|---|---|---|---|---|---|---|
181588 | M ¾" | 1,6 | 79 | 70 | 149 | 273 | 140 | 79 | 1.6 | |
182292 | M ¾" | 1,6 | 79 | 70 | 149 | 55 | 140 | 79 | 1.7 | Insulation included |
182674 | M ¾" | 3,5 | 97 | 77 | 175 | 310 | 154 | 100 | 2.5 |
Connection kit included: contains nuts, gaskets, fittings (5 pcs of each) check valves (2 pcs).

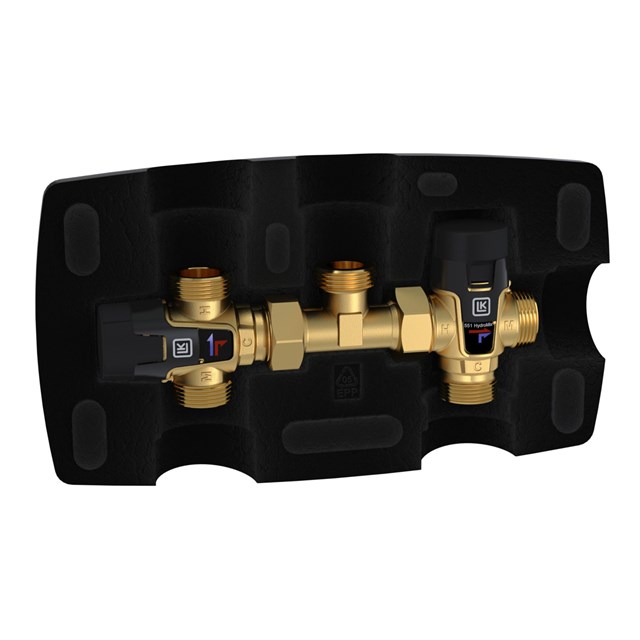

LK 551 HydroKit Solar
Article | Dim. | Kvs m³/h | A mm | B mm | C mm | D mm | E mm | F mm | Weight (kg) | Note |
---|---|---|---|---|---|---|---|---|---|---|
181690 | M 1" | 1,6 | 44 | 35 | 149 | 238 | 70 | 79 | 1.6 | |
182293 | M 1" | 1,6 | 44 | 35 | 149 | 238 | 70 | 79 | 1.7 | Insulation included |
182295 | M 1" | 2,5 | 62 | 42 | 149 | 245 | 70 | 79 | 1.7 | Insulation included |

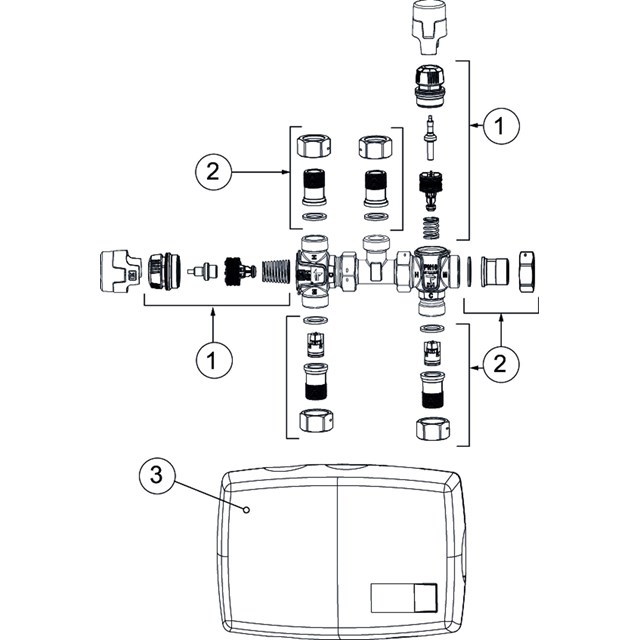

Accessories & Spare parts
Article no. | Article | Position |
---|---|---|
095234 | Repair kit 551, 35 - 65 °C (Kvs 1.6) | 1 |
095075 | Repair kit 551 F, 42 - 52 °C | 1 |
095350 | Repair kit 551, 35 - 65 °C (Kvs 3.2-4.2) | 1 |
095389 | Connection kit M ¾" x 1" with rotating nut, gaskets, 2 check valves | 2 |
095390 | LK Insulation (Kvs 1.6 - 2.5) | 3 |
095459 | LK Insulation (Kvs 3.5) | 3 |
