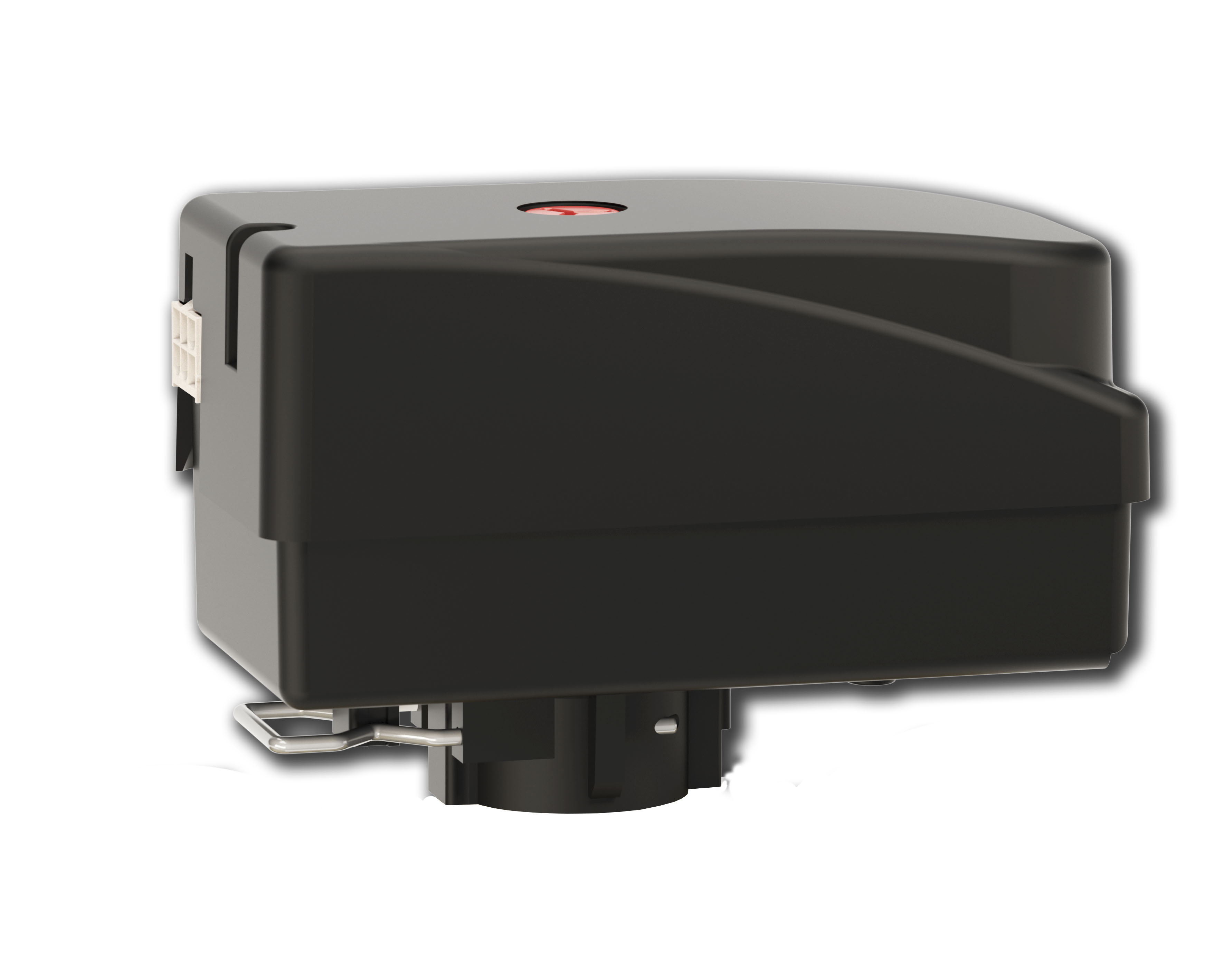

LK 525 3W - Actuator

LK 525 3W - Actuator

LK 525 3W - Actuator

  • Variants
  • Detailed Information
  • Documentation
  • Accessories & Spare parts

Variants

LK 525 3W - Actuator and Adaptor

LK 525 3W - Actuator and Adaptor 5 variants

Article Torque A mm B mm C mm D mm Note Weight (kg) Dimensional sketch Item List
066060 5 Nm 107 54 69 43 EMV 110-M SPST Actuator 230 VAC with Molex® 0.3
066061 5 Nm 107 54 69 43 EMV 110-K SPST Actuator 230 VAC with cable 1 m 0.3
066062 5 Nm 107 54 69 43 EMV 110-K SPST Actuator 230 VAC with cable 3 m 0.4
066063 5 Nm 107 54 69 43 EMV 110-M SPST Actuator 24 VAC with Molex® 0.3
50802229 5 Nm 109 58 74 45 EMV 110-M EX SPST Actuator 230 VAC with Molex® 0.3

066060

Torque 5 Nm
A mm 107
B mm 54
C mm 69
D mm 43
Note EMV 110-M SPST Actuator 230 VAC with Molex®
Weight (kg) 0.3
Dimensional sketch
Item list

066061

Torque 5 Nm
A mm 107
B mm 54
C mm 69
D mm 43
Note EMV 110-K SPST Actuator 230 VAC with cable 1 m
Weight (kg) 0.3
Dimensional sketch
Item list

066062

Torque 5 Nm
A mm 107
B mm 54
C mm 69
D mm 43
Note EMV 110-K SPST Actuator 230 VAC with cable 3 m
Weight (kg) 0.4
Dimensional sketch
Item list

066063

Torque 5 Nm
A mm 107
B mm 54
C mm 69
D mm 43
Note EMV 110-M SPST Actuator 24 VAC with Molex®
Weight (kg) 0.3
Dimensional sketch
Item list

50802229

Torque 5 Nm
A mm 109
B mm 58
C mm 74
D mm 45
Note EMV 110-M EX SPST Actuator 230 VAC with Molex®
Weight (kg) 0.3
Dimensional sketch
Item list

Detailed Information

Description

Technical Data

Documentation

Product sheet

LK 525 3W - Actuator

Accessories & Spare parts

Article no. Article Position
066083 Cable-M 3x0.75 L=1 m with Molex® 1
066086 Cable-M 3x0.75 L=1.7 m with Molex® 1
