LK 525 MultiZone 2W

LK 525 MultiZone 2W

  • Simple and flexible assembly with clip system
  • Actuators are available as normally closed (NC) or normally open (NO). Direction is displayed on the actuator

LK 525 MultiZone is a motorized 2-way zone ­valve for application in heating systems in which the flow through one or more zones is to be controlled. The zone valve has On/Off control and is ­designed with a tu...

Read more

LK 525 MultiZone 2W

  • Variants
  • Detailed Information
  • Documentation
  • Questions & Answers

Variants

LK 525 2W - Female thread

LK 525 2W - Female thread 6 variants

Article Type Dim. Kvs m³/h A mm B mm C mm D mm E mm F mm G mm Weight (kg) Dimensional sketch Item List
066246 NO F ¾" 10,0 70 35 30 118 43 107 54 0.2
066247 NO F 1" 11,0 74 37 30 118 43 107 54 0.3
066248 NO F 1¼" 11,0 84 42 30 118 43 107 54 0.6
066423 NC F ¾" 10,0 70 35 30 118 43 107 54 0.2
066424 NC F 1" 11,0 74 37 30 118 43 107 54 0.3
066425 NC F 1¼" 11,0 84 42 30 118 43 107 54 0.6

066246

Type NO
Dim. F ¾"
Kvs m³/h 10,0
A mm 70
B mm 35
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.2

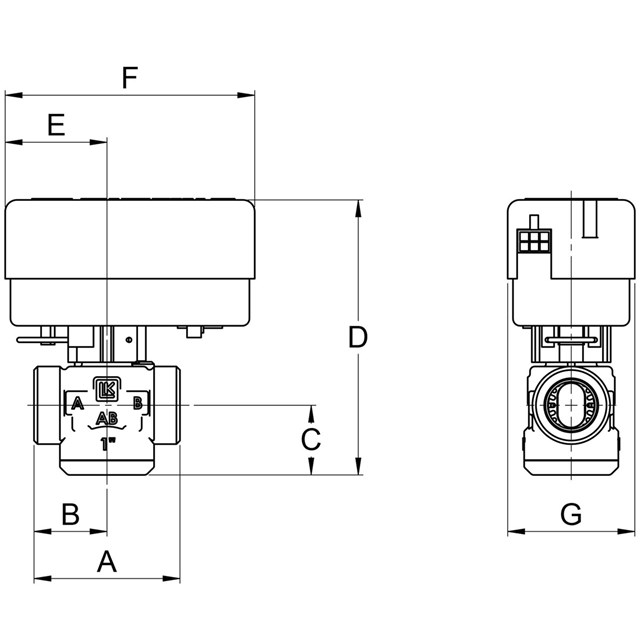

Dimensional sketch
Item list

066247

Type NO
Dim. F 1"
Kvs m³/h 11,0
A mm 74
B mm 37
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.3
Dimensional sketch
Item list

066248

Type NO
Dim. F 1¼"
Kvs m³/h 11,0
A mm 84
B mm 42
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.6
Dimensional sketch
Item list

066423

Type NC
Dim. F ¾"
Kvs m³/h 10,0
A mm 70
B mm 35
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.2
Dimensional sketch
Item list

066424

Type NC
Dim. F 1"
Kvs m³/h 11,0
A mm 74
B mm 37
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.3
Dimensional sketch
Item list

066425

Type NC
Dim. F 1¼"
Kvs m³/h 11,0
A mm 84
B mm 42
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.6
Dimensional sketch
Item list
LK 525 2W - Male thread

LK 525 2W - Male thread 5 variants

Article Type Dim. Kvs m³/h A mm B mm C mm D mm E mm F mm G mm Weight (kg) Dimensional sketch Item List
066112 NC M ¾" 10,0 70 35 30 118 43 107 54 0.2
066102 NC M 1” 11,0 62 31 30 118 43 107 54 0.3
066103 NC M 1¼" 11,0 74 37 30 118 43 107 54 0.6
066115 NO M ¾" 10,0 70 35 30 118 43 107 54 0.2
066113 NO M 1” 11,0 62 31 30 118 43 107 54 0.3

066112

Type NC
Dim. M ¾"
Kvs m³/h 10,0
A mm 70
B mm 35
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.2
Dimensional sketch
Item list

066102

Type NC
Dim. M 1”
Kvs m³/h 11,0
A mm 62
B mm 31
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.3
Dimensional sketch
Item list

066103

Type NC
Dim. M 1¼"
Kvs m³/h 11,0
A mm 74
B mm 37
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.6
Dimensional sketch
Item list

066115

Type NO
Dim. M ¾"
Kvs m³/h 10,0
A mm 70
B mm 35
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.2
Dimensional sketch
Item list

066113

Type NO
Dim. M 1”
Kvs m³/h 11,0
A mm 62
B mm 31
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.3
Dimensional sketch
Item list
LK 525 2W - Compression fitting

LK 525 2W - Compression fitting 4 variants

Article Type Dim. Kvs m³/h A mm B mm C mm D mm E mm F mm G mm Weight (kg) Dimensional sketch Item List
066104 NC 22 mm 11,0 110 55 30 118 43 107 54 0.4
066105 NC 28 mm 11,0 110 55 30 118 43 107 54 0.6
066116 NO 22 mm 11,0 110 55 30 118 43 107 54 0.4
066119 NO 28 mm 11,0 110 55 30 118 43 107 54 0.6

066104

Type NC
Dim. 22 mm
Kvs m³/h 11,0
A mm 110
B mm 55
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.4

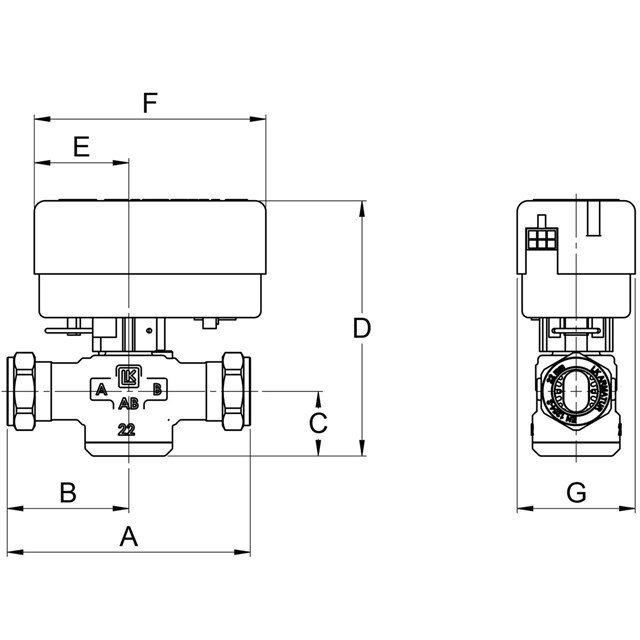

Dimensional sketch
Item list

066105

Type NC
Dim. 28 mm
Kvs m³/h 11,0
A mm 110
B mm 55
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.6
Dimensional sketch
Item list

066116

Type NO
Dim. 22 mm
Kvs m³/h 11,0
A mm 110
B mm 55
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.4
Dimensional sketch
Item list

066119

Type NO
Dim. 28 mm
Kvs m³/h 11,0
A mm 110
B mm 55
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.6
Dimensional sketch
Item list
LK 525 - Actuator

LK 525 - Actuator 2 variants

Article Type Connection Torque Weight (kg) Item List
066111 NC EMV 110-K SPST Actuator 230 VAC, Cable 1 m 5 Nm 0.3
066199 NO EMV 110-K SPST Actuator 230 VAC, Cable 1 m 5 Nm 0.3

066111

Type NC
Connection EMV 110-K SPST Actuator 230 VAC, Cable 1 m
Torque 5 Nm
Weight (kg) 0.3
Item list

066199

Type NO
Connection EMV 110-K SPST Actuator 230 VAC, Cable 1 m
Torque 5 Nm
Weight (kg) 0.3
Item list
LK 525 2W SET – incl. Actuator 230VAC 1m Cable - Female thread

LK 525 2W SET – incl. Actuator 230VAC 1m Cable - Female thread 3 variants

Article Type Dim. Kvs m³/h Torque A mm B mm C mm D mm E mm F mm G mm Weight (kg) Dimensional sketch Item List
066442 NC F ¾" 10,0 5 Nm
 70 35 30 118 43 107 54 0.5
066443 NC F 1" 11,0 5 Nm 62 31 30 118 43 107 54 0.6
066444 NC F 1¼" 11,0 5 Nm 74 37 30 118 43 107 54 0.9

066442

Type NC
Dim. F ¾"
Kvs m³/h 10,0
Torque 5 Nm
A mm 70
B mm 35
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.5
Dimensional sketch
Item list

066443

Type NC
Dim. F 1"
Kvs m³/h 11,0
Torque 5 Nm
A mm 62
B mm 31
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.6
Dimensional sketch
Item list

066444

Type NC
Dim. F 1¼"
Kvs m³/h 11,0
Torque 5 Nm
A mm 74
B mm 37
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.9
Dimensional sketch
Item list
LK 525 2W SET – incl. Actuator 230VAC 1m Cable - Male thread

LK 525 2W SET – incl. Actuator 230VAC 1m Cable - Male thread 3 variants

Article Type Dim. Kvs m³/h Torque A mm B mm C mm D mm E mm F mm G mm Weight (kg) Dimensional sketch Item List
066437 NC M ¾" 10,0 5 Nm 70 35 30 118 43 107 54 0.5
066438 NC M 1" 11,0 5 Nm 62 31 30 118 43 107 54 0.6
066439 NC M 1 ¼" 11,0 5 Nm 70 35 30 118 43 107 54 0.9

066437

Type NC
Dim. M ¾"
Kvs m³/h 10,0
Torque 5 Nm
A mm 70
B mm 35
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.5
Dimensional sketch
Item list

066438

Type NC
Dim. M 1"
Kvs m³/h 11,0
Torque 5 Nm
A mm 62
B mm 31
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.6
Dimensional sketch
Item list

066439

Type NC
Dim. M 1 ¼"
Kvs m³/h 11,0
Torque 5 Nm
A mm 70
B mm 35
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.9
Dimensional sketch
Item list
LK 525 2W SET – incl. Motor 230VAC 1m Cable - Compression fitting

LK 525 2W SET – incl. Motor 230VAC 1m Cable - Compression fitting 2 variants

Article Type Dim. Kvs m³/h Torque A mm B mm C mm D mm E mm F mm G mm Weight (kg) Dimensional sketch Item List
066440 NC 22 mm 11,0 5 Nm 110 55 30 118 43 107 54 0.7
066441 NC 28 mm 11,0 5 Nm 110 55 30 118 43 107 54 0.9

066440

Type NC
Dim. 22 mm
Kvs m³/h 11,0
Torque 5 Nm
A mm 110
B mm 55
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.7
Dimensional sketch
Item list

066441

Type NC
Dim. 28 mm
Kvs m³/h 11,0
Torque 5 Nm
A mm 110
B mm 55
C mm 30
D mm 118
E mm 43
F mm 107
G mm 54
Weight (kg) 0.9
Dimensional sketch
Item list

Detailed Information

Description

LK 525 MultiZone is a motorized 2-way zone ­valve for application in heating systems in which the flow through one or more zones is to be controlled. The zone valve has On/Off control and is ­designed with a turning slide which allows it to withstand a ­larger pressure difference and reduces the risk of it stalling after a long intermission. On the upper surface of the actuator is an indicator that shows which port is open or closed.

The zone valve must not be installed with the motor underneath the valve unit.

In case of a power failure, the valve cone stays in its current position. When the power is switched off, the valve can be manually set. Remove the motor and turn the spindle to your selected position. When the power is restored, turn the valve back to its original position and reinstall the ­motor.

Please note that the motor can be installed in only one position.

The valve requires no maintenance but the installation should be checked regularly.

Technical Data

Working temperature: Min. 5 °C/Max. 80 °C
(90 °C briefly)
Ambient temperature: Min. 1 °C/Max. 60 °C
Max. working pressure: 1.0 MPa (10 bar)
Max. differential pressure: 100 kPa (1 bar)
Leakage: < 0.1% of Kvs at 100 kPa
Angle of rotation: 90°/360°
Media 1: Water - Glycol mixture max. 50% Ethanol mixture max. 30%
Thread standard: Rp - female thread, G - male thread, ISO 228/1
Actuator: 7 VA, 230 VAC, 50 Hz
Operation time: 12 seconds (90°)
Electrical connection: Fixed wire
Signal connector: Single pole SPST
Protection type: IP 44
Material, valve body: Brass EN 12165 CW617N
Material, external cover: Brass EN 12164 CW614N
Material, slide/spindle: PPS Composite
Cable specification: Dimension 3 x 0,75 mm²
Wire colors: Blue, brown, black
External insulation: PVC
Approvals: CE

Application

Wiring Diagram

Technical Diagrams

Capacity Diagram

Documentation

Product sheet

LK 525 MultiZone 2W

Instruction manual

525 MultiZone 2V - Instruction_148153

Brochure

525 MultiZone ENG

Questions & Answers

Is it possible to replace a Honeywell mixing valve with an LK 525 MultiZone with actuator?

Yes it is easy to replace and no adjustment is needed.

My mixing valve rotates in different directions: is there something wrong?

No, this is quite normal. The mixing valve will rotate randomly between ports A and B. Rotation takes place at an angle of 60°.
