LK Insulation

LK Insulation

  • Reduce energy loss
  • Easy to install

The LK Armatur insulation has been developed for ThermoVar® thermic valves, ThermoBac check valves, ThermoMix® mixing valves and MultiZone zone valves to provide effective protection against energy losses.

LK Insulation

  • Variants
  • Detailed Information
  • Documentation

Variants

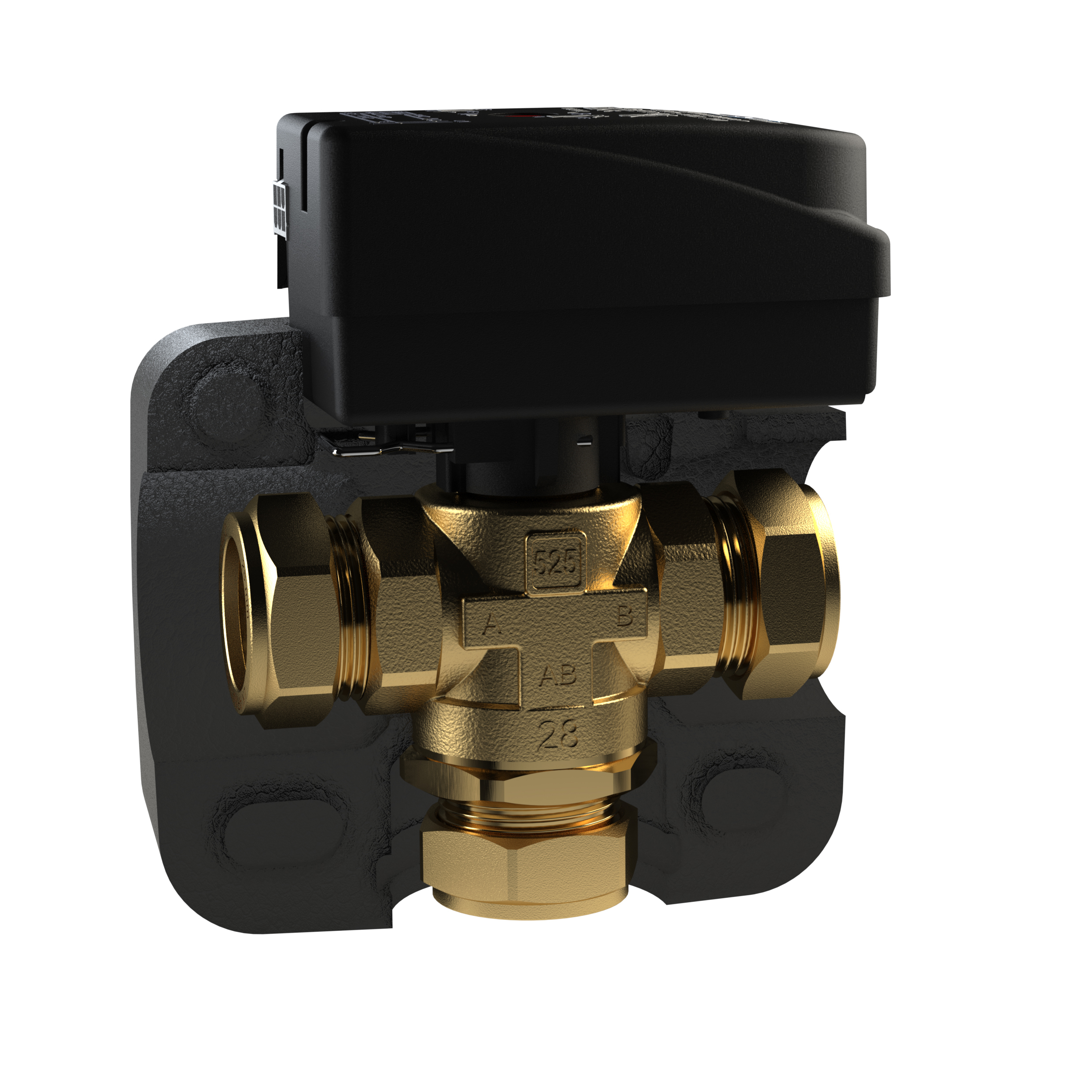

LK Insulation - LK 525 3V, Solar, Polar

LK Insulation - LK 525 3V, Solar, Polar 1 artikel

Article Type Dim. A mm B mm C mm D mm Weight (kg) Dimensional sketch Item List
187202 525 3V/R, Solar, Polar M ¾", M 1", M 1¼", 22 mm, 28 mm 284 194 117 62 0.1

187202

Type 525 3V/R, Solar, Polar
Dim. M ¾", M 1", M 1¼", 22 mm, 28 mm
A mm 284
B mm 194
C mm 117
D mm 62
Weight (kg) 0.1
Dimensional sketch
Item list

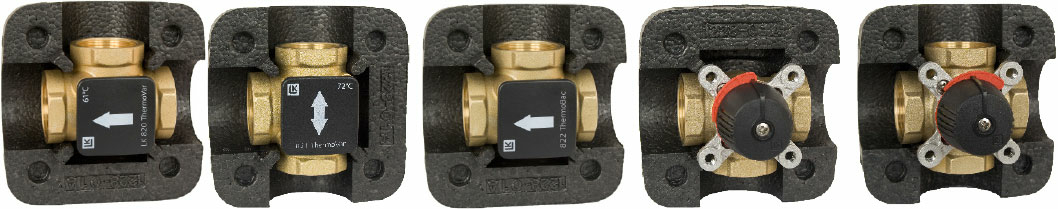

LK Insulation - LK 820, 821, 822, 840, 841

LK Insulation - LK 820, 821, 822, 840, 841 2 variants

Article Type Dim. DN Weight (kg) Item List
187107 820, 821, 822, 840, 841 M ¾”, M 1”, F ½”, F ¾” DN 15-20 0.1
187108 820, 821, 822, 840, 841 M 1¼”, M 1½”, F 1”, F 1¼” DN 25-32 0.1

187107

Type 820, 821, 822, 840, 841
Dim. M ¾”, M 1”, F ½”, F ¾”
DN DN 15-20
Weight (kg) 0.1
Item list

187108

Type 820, 821, 822, 840, 841
Dim. M 1¼”, M 1½”, F 1”, F 1¼”
DN DN 25-32
Weight (kg) 0.1
Item list

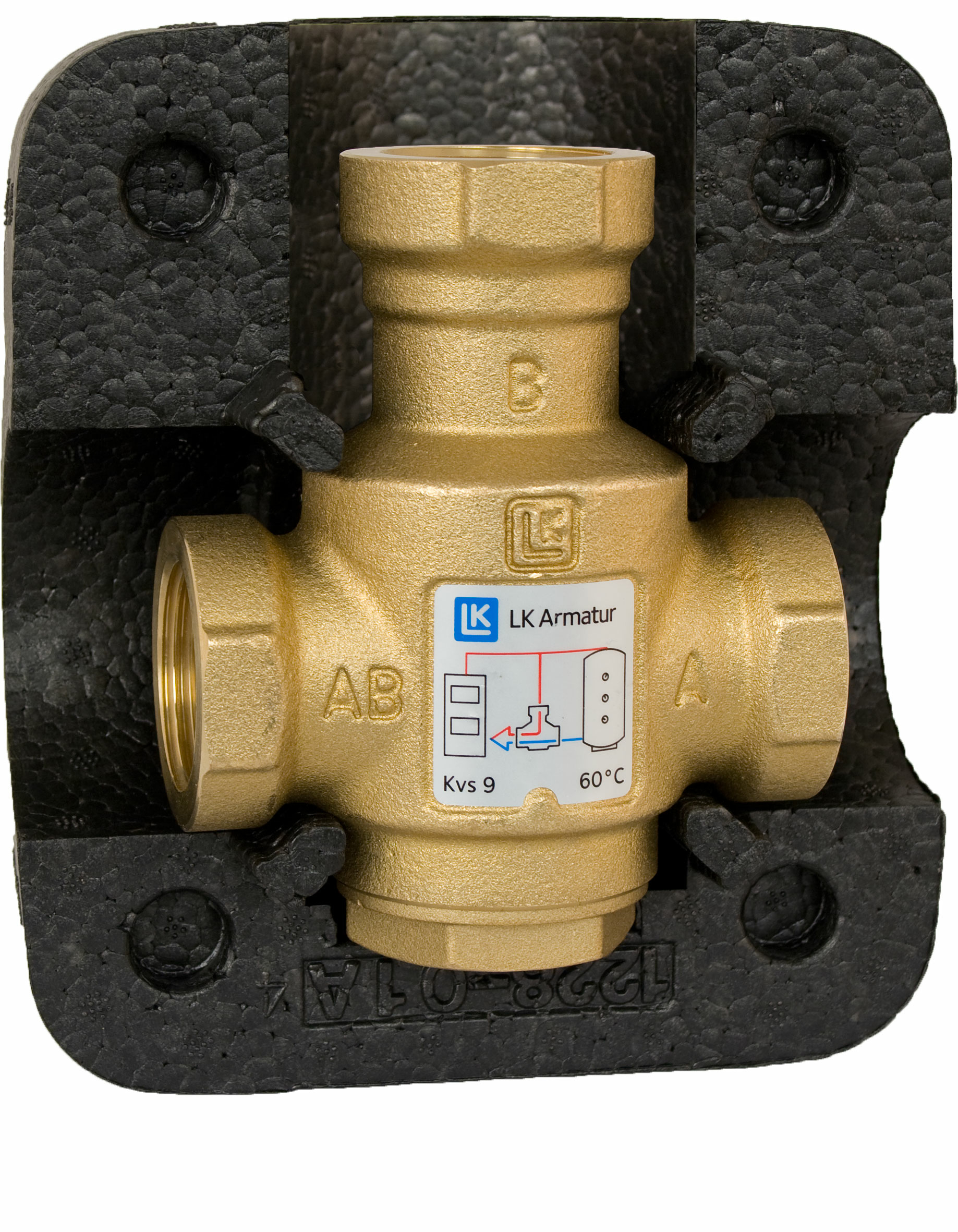

LK Insulation - LK 823

LK Insulation - LK 823 1 artikel

Article Type Dim. DN Weight (kg) Item List
187109 823 M 1½”, F 1”, F 1¼” 25-32 0.1

187109

Type 823
Dim. M 1½”, F 1”, F 1¼”
DN 25-32
Weight (kg) 0.1
Item list

Detailed Information

Description

The LK Armatur insulation has been developed for ThermoVar® thermic valves, ThermoBac check valves, ThermoMix® mixing valves and MultiZone zone valves to provide effective protection against energy losses.

The insulation is available in three versions. One is designed for LK 823 ThermoVar®, one for valve types LK 820, 821 ThermoVar®, 822 ThermoBac, 840 and 841 ThermoMix® and one for 525 MultiZone 3V, Solar and Polar. In the standard design it fits LK 820, 821 ThermoVar® and LK 822 ThermoBac.

Cut-outs for spindle and valve port are easily done to adapt the insulation to LK 840 and 841 ThermoMix®, with or without an installed electronic controller.

The insulation’s closing function allows a quick and easy mounting.

Technical Data

Working temperature: Min. -20 °C/Max. 130 °C
Ambient temperature: Min. -20 °C/Max. 130 °C
Material, insulation: Expanded Polypropylene EPP
Other data: Thermal conductivity 0.035 W/mK,
Density 35 g/l

Documentation

Product sheet

LK Insulation

Instruction manual

Insulation 820, 821, 822, 840, 841 - Instruction_148693

Instruction manual

525 Isolering - Instruction_248086

Instruction manual

823 Insulation - Instruction_148694
