Herbie

Herbie

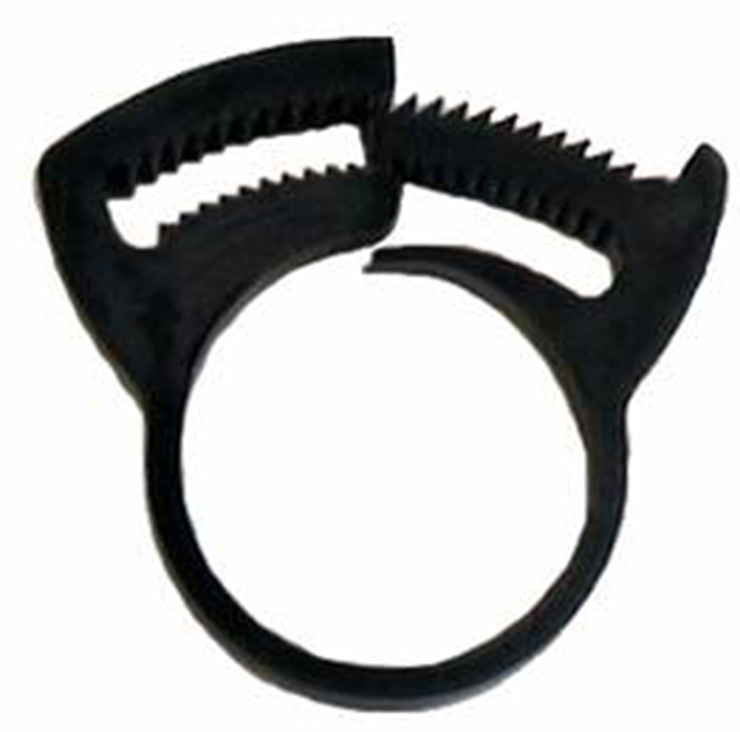

Hose clamp for hose connections. Easy to fit, impact-resistant, vibration-proof. The hose clip can be reused when it has been removed.

Herbie

  • Variants
  • Detailed Information
  • Documentation

Variants

Herbie

Herbie 27 variants

Article Note Weight (kg) Item List
060101 For hose dimension: A 5,6 - 6,8 mm 0.01
060102 For hose dimension: AA 6,5 - 8,1 mm 0.01
060103 For hose dimension: B 7,9 - 9,6 mm 0.01
060106 For hose dimension: D 12,0 - 14,5 mm 0.01
060107 For hose dimension: E 13,1 - 15,7 mm 0.01
060109 For hose dimension: G 16,9 - 19,9 mm 0.01
060111 For hose dimension: J 20,3 - 23,7 mm 0.01
060115 For hose dimension: N 28,8 - 33,0 mm 0.01
060117 For hose dimension: Q 34,3 - 38,7 mm 0.01
060118 For hose dimension: R 38,0 - 42 mm 0.01
060119 For hose dimension: S 40,1 - 45,1 mm 0.01
060121 For hose dimension: U 46,0 - 52,0 mm 0.01
060122 For hose dimension: V 48,5 - 54,8 mm 0.01
060123 For hose dimension: W 53,0 - 58,0 mm 0.01
060124 For hose dimension: X 55,0 - 61,0 mm 0.01
060125 For hose dimension: 59 59,0 - 65,7 mm 0.01
060126 For hose dimension: 64 63,0 - 68,4 mm 0.01
060127 For hose dimension: 65 65,0 - 70,0 mm 0.01
060128 For hose dimension: 66 65,8 - 72,1 mm 0.01
060129 For hose dimension: 70 70,0 - 76,4 mm 0.01
060130 For hose dimension: 75 74,7 - 81,5 mm 0.01
060131 For hose dimension: 78 77,7 - 82,2 mm 0.01
060132 For hose dimension: 80 79,8 - 86,0 mm 0.01
060133 For hose dimension: 85 85,1 - 91,6 mm 0.01
060134 For hose dimension: 96 97,7 - 104,0 mm 0.01
060135 For hose dimension: 105 105,3 - 113,3 mm 0.01
060136 For hose dimension: 163 163,0 - 171,0 mm 0.01

060101

Note For hose dimension: A 5,6 - 6,8 mm
Weight (kg) 0.01
Item list

060102

Note For hose dimension: AA 6,5 - 8,1 mm
Weight (kg) 0.01
Item list

060103

Note For hose dimension: B 7,9 - 9,6 mm
Weight (kg) 0.01
Item list

060106

Note For hose dimension: D 12,0 - 14,5 mm
Weight (kg) 0.01
Item list

060107

Note For hose dimension: E 13,1 - 15,7 mm
Weight (kg) 0.01
Item list

060109

Note For hose dimension: G 16,9 - 19,9 mm
Weight (kg) 0.01
Item list

060111

Note For hose dimension: J 20,3 - 23,7 mm
Weight (kg) 0.01
Item list

060115

Note For hose dimension: N 28,8 - 33,0 mm
Weight (kg) 0.01
Item list

060117

Note For hose dimension: Q 34,3 - 38,7 mm
Weight (kg) 0.01
Item list

060118

Note For hose dimension: R 38,0 - 42 mm
Weight (kg) 0.01
Item list

060119

Note For hose dimension: S 40,1 - 45,1 mm
Weight (kg) 0.01
Item list

060121

Note For hose dimension: U 46,0 - 52,0 mm
Weight (kg) 0.01
Item list

060122

Note For hose dimension: V 48,5 - 54,8 mm
Weight (kg) 0.01
Item list

060123

Note For hose dimension: W 53,0 - 58,0 mm
Weight (kg) 0.01
Item list

060124

Note For hose dimension: X 55,0 - 61,0 mm
Weight (kg) 0.01
Item list

060125

Note For hose dimension: 59 59,0 - 65,7 mm
Weight (kg) 0.01
Item list

060126

Note For hose dimension: 64 63,0 - 68,4 mm
Weight (kg) 0.01
Item list

060127

Note For hose dimension: 65 65,0 - 70,0 mm
Weight (kg) 0.01
Item list

060128

Note For hose dimension: 66 65,8 - 72,1 mm
Weight (kg) 0.01
Item list

060129

Note For hose dimension: 70 70,0 - 76,4 mm
Weight (kg) 0.01
Item list

060130

Note For hose dimension: 75 74,7 - 81,5 mm
Weight (kg) 0.01
Item list

060131

Note For hose dimension: 78 77,7 - 82,2 mm
Weight (kg) 0.01
Item list

060132

Note For hose dimension: 80 79,8 - 86,0 mm
Weight (kg) 0.01
Item list

060133

Note For hose dimension: 85 85,1 - 91,6 mm
Weight (kg) 0.01
Item list

060134

Note For hose dimension: 96 97,7 - 104,0 mm
Weight (kg) 0.01
Item list

060135

Note For hose dimension: 105 105,3 - 113,3 mm
Weight (kg) 0.01
Item list

060136

Note For hose dimension: 163 163,0 - 171,0 mm
Weight (kg) 0.01
Item list

Detailed Information

Description

Hose clamp for hose connections. Easy to fit, impact-resistant, vibration-proof. The hose clip can be reused when it has been removed.
The hose clamp meets the requirements defined for use under harsh environmental and climate conditions.

When installing, the hose clamp is threaded over the hose, the locking device is then clamped together using a tool, e.g. polygrip.
The hose clamp is removed by moving the lock arrangement apart.

Technical Data

Working temperature: Min. -40 °C - / Max. 150 °C
Other data: Plastic material HCN 251, resistant to most liquids and gases. Test method According to ISO and IEC

Documentation

Product sheet

Herbie
