Three copper and two stainless steel flanged pipes

Flanging

Efficient pipe flanging for reliable connections

Flanging is a simple, reliable method for creating sealed joints at the end of a pipe. Using a washer and nut, the flanged connection ensures a tight fit without the need for welding or soldering, making it ideal for prefabricated assemblies and systems that require serviceable joints.

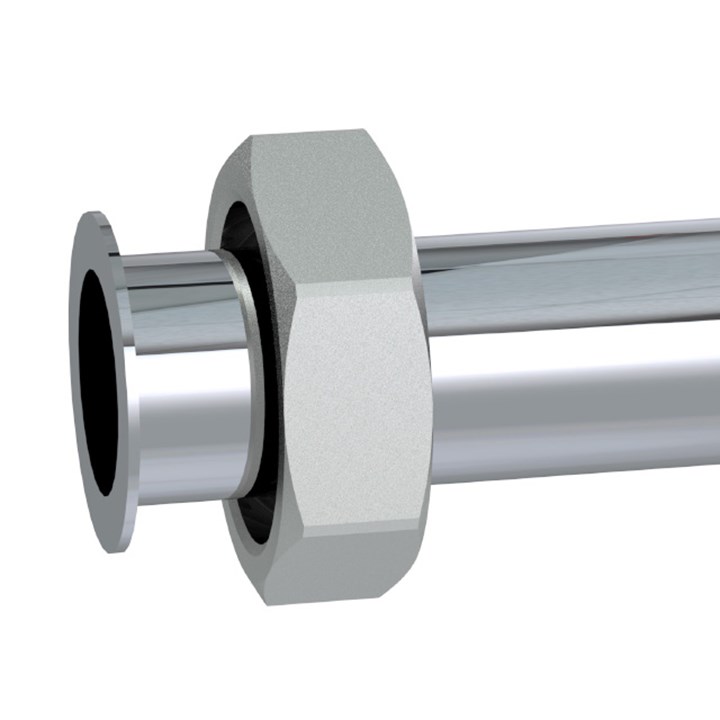

Steel pipe with flange

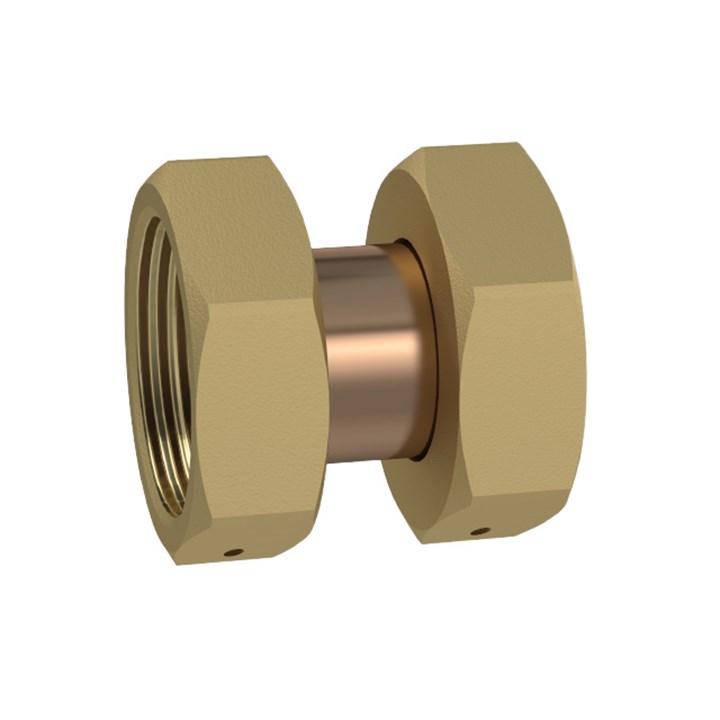

Copper pipe with double flanging
Bent flanged copper pipe

Straight pipe with flange for one nut
Drawing with measurements for a straight pipe with two nuts
Pipe dimension
(mm)		 A
Flange dimension for nuts		 B
Min. length for flanging
(mm)		 R
Bending radius
(mm)
12 ½" 20 21.6
15 ½" 20 22.5
15 ¾" 20 30
18 ¾" 20 27
18 1" 20 27
22 ¾" 20 33
22 ¾" 20 40
22 1" 20 33
22 1" 20 40
22 1¼" 20 33
22 1¼" 20 40
28 1" 30 55
28 1¼" 30 55
28 1½" 30 55
35 1½" 30 52.5
42 2" 40 60



Straight pipe with flanges for two nuts
Pipe dimension
(mm)		 A
Flange dimension for nuts		 B
Min. length for flanging
(mm)		 R
Bending radius
(mm)
12 ½" 45 21.6
15 ½" 45 22.5
15 ¾" 55 30
18 ¾" 55 27
18 1" 55 27
22 ¾" 42 33
22 ¾" 42 40
22 1" 42 33
22 1" 42 40
22 1¼" 110 33
22 1¼" 110 40
28 1" 110 55
28 1¼" 110 55
28 1½" 110 55
35 1½" 110 52.5
42 2" 110 60



Bent pipe with flange
Pipe dimension
(mm)		 A
Flange dimension for nuts		 B
Min. length for flanging
(mm)		 R
Bending radius
(mm)
12 ½" 48 21.6
15 ½" 50 22.5
15 ¾" 56 30
18 ¾" 53 27
18 1" 53 27
22 ¾" 56 33
22 ¾" 63 40
22 1" 56 33
22 1" 63 40
22 1¼" 56 33
22 1¼" 63 40
28 1" 85 55
28 1¼" 85 55
28 1½" 85 55
35 1½" 93 52.5
42 2" 100 60



End forming for quick connection

End forming creates the double O-ring seat and locking interface that turns a pipe into a quick connection that installs quickly, securely and easily – every time.
